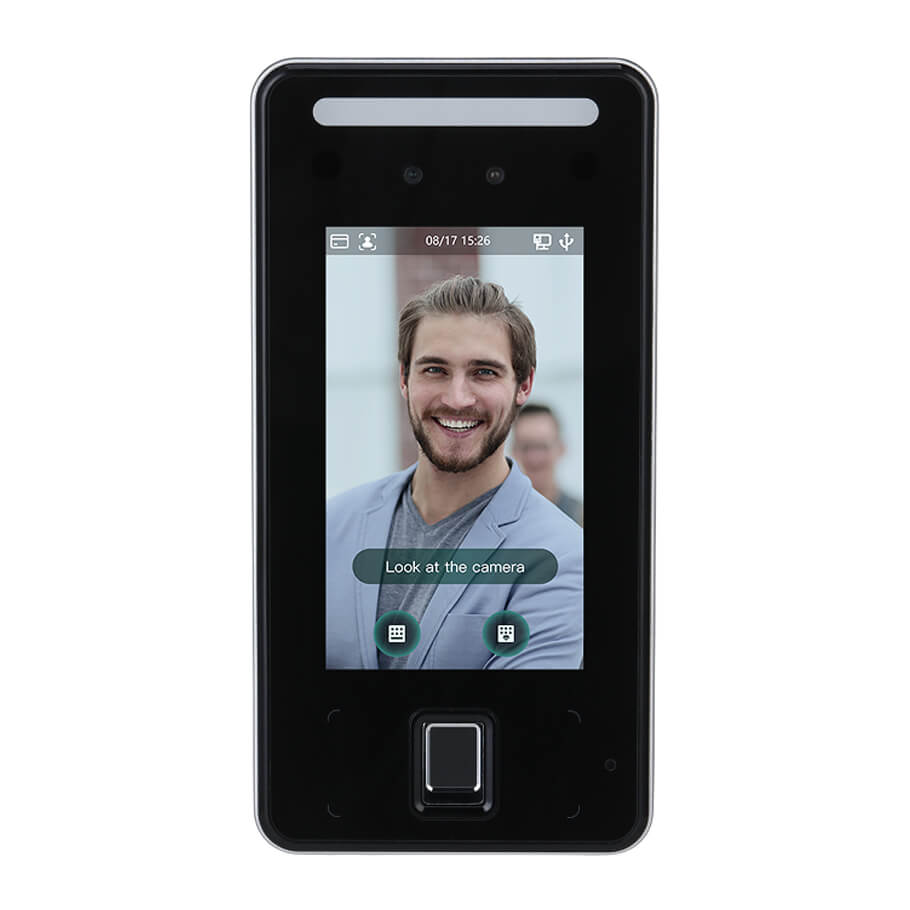

Máy chấm công kiểm soát cửa nhận diện khuôn mặt DAHUA DHI-ASI6214J-MFW
- Màn hình cảm ứng LCD 4.3 inch; độ phân giải 480 × 272.
- Camera kép góc rộng 2MP; hỗ trợ DWDR, đèn chiếu sáng trắng và đèn chiếu sáng hồng ngoại.
- Hỗ trợ mở khóa bằng khuôn mặt, thẻ, mật khẩu, vân tay và các tổ hợp của chúng; hỗ trợ mở khóa theo thời gian.
- Dữ liệu người dùng có thể được lưu trữ tại bộ điều khiển truy cập; có khả năng lưu trữ 6000 hình ảnh khuôn mặt và hoạt động mà không cần mạng.
- Khoảng cách từ camera đến khuôn mặt: 0.3 m - 1.5 m.
- Độ chính xác xác thực khuôn mặt 99.5%; tốc độ so sánh khuôn mặt 0.3 giây mỗi người; tỷ lệ nhận diện sai thấp; hỗ trợ phát hiện sự sống.
Thông số kỹ thuật
| System | |
| Main Processor | Embedded Processor |
| Internet Protocol | IPv4; RTSP; RTP; TCP; UDP; P2P |
| OSDP Protocol | Support |
| Interoperability | CGI |
| SDK | Support |
| Basic | |
| Display | 4.3 inch TFT screen |
| Screen Type | Capacitive touch screen |
| Screen Resolution | 480 × 272 |
| Camera | 2 MP CMOS high definition camera |
| WDR | DWDR |
| Light Compensation | Auto white light Auto IR light |
| Voice Prompt | Support |
| Casing | PC Metal rear case |
| Function | |
| Unlock Mode | Card/Password/Fingerprint/Face unlock and unlock through their combinations |
| Card Reading Type | IC card |
| Period List | 128 |
| Holiday Period | 128 |
| First-Card Unlock | Support |
| Remote Verification | Support |
| Peripheral Card Reader | 1 RS-485 1 Wiegand |
| Multiple User Unlock | Support |
| Real-Time Surveillance | Support |
| Web Configuration | Support |
| Performance | |
| Face Recognition Height | 0.9 m–2.4 m |
| Face Recognition Distance | 0.3 m–1.5 m |
| Face Verification Accuracy | 99.50% |
| Fingerprint Sensor Type | Capacitive |
| Fingerprint Verification Mode | 1:N |
| Fingerprint Comparison Time | 1.0 s |
| Fingerprint Recognition Time | 0.5 s |
| Capacity | |
| User Capacity | 6,000 |
| Face Image Capacity | 6,000 |
| Fingerprint Capacity | 6,000 |
| Card Capacity | 6,000 |
| Password Capacity | 6,000 |
| Record Capacity | 150,000 |
| Port | |
| RS-485 | 1 |
| Wiegand | 1 |
| USB | 1 × USB2.0 port |
| Network | 1 × RJ-45, 10/100 Mbps self-adaption |
| Alarm Input | 1 |
| Alarm Linkage | Support |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 |
| Alarm | |
| Anti-Passback | Support |
| Tamper | Support |
| Duress | Support |
| Door Sensor Timeout | Support |
| Intrusion | Support |
| Illegal Card Exceeding Threshold | Support |
| Duress Fingerprint | Support |
| General | |
| Power Supply Mode | 12V DC; 2A |
| Protection Grade | IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick startguide.) |
| Power Consumption | ≤ 24W |
| Product Dimensions | 174.0 mm × 87.5 mm × 22.5 mm |
| Working Temperature | -30°C to 60°C (-22°F to 140°F) |
| Working Humidity | 5%RH–95%RH (non-condensing) |
| Working Environment | Indoor Outdoor |
| Accessory | Bracket (provided) |
| Installation Method | Surface mount |
| Certification | CE FCC |
