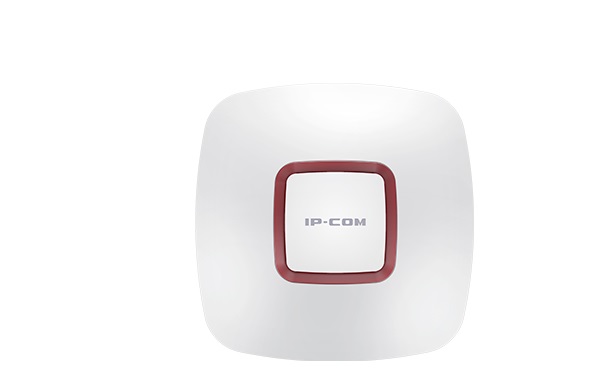

Indoor High Capacity Access Point IP-COM AP365
- Băng tần: 2.4GHz + 5Ghz.
- Tốc độ không dây: 450Mbps (2.4GHz) + 1300Mbps (5Ghz).
- Số lượng SSID: 8 (2.4GHz) + 4 (5Ghz).
- Chế độ hoạt động: Access point, WDS, Client + Access Point.
- Chịu tải: 256 user.
- Tiêu chuẩn: IEEE 802.11n/g/b, 802.11ac/n/a.
- Chuẩn bảo mật không dây: 64/128 WEP, WPA-PSK, WPA, WPA2.
- Kích thước: 234x234x51mm.
Đặc tính kỹ thuật
| Model | AP365 |
| Product Information | |
| Mounting | Ceiling and Wall Mount |
| Dimensions (W x H x L) | 234x234x58.4mm |
| Application Scenarios | Medium-Sized Enterprise offices, Shopping Malls, and Restaurants etc |
| Hardware Specifications | |
| Frequency Range | 2.4GHz/5GHz |
| PHY Data Rates | 1750Mbps |
| Wi-Fi Standards | IEEE 802.11n/g/b， 802.11ac/n/a |
| Interfaces | 2 x 10/100/1000Mbps PoE/LAN port |
| Buttons | 1 x RESET |
| Antennas | 3x Integrated 2.4GHz Omni-directional, 4dBi gain 3x Integrated 5GHz Omni-directional, 5dBi gain |
| Max Power Consumption | 23W |
| LED indicators | PWR, 2.4G，5G |
| Power Supply | DC Input: 51 VDC 1.25A PoE: 802.3at compliant |
| Receiver Sensitivity | MCS0: -88dBm MCS7: -72dBm |
| Software Specifications | |
| Operating Mode | AP, WDS, Client+AP |
| WiFi Radio | Enable or Disable |
| BSSIDs | Up to 8 (2.4 GHz), Up to 4(5 GHz) |
| SSID Hiding | Enable or Disable |
| User Isolation | Support |
| Clients Limit | Connected user number limitation for every SSID |
| VLANs | 802.1Q, 4094 VLAN IDs (1 to 4094) and SSID-based VLAN assignment |
| RSSI Threshold | Support |
| WMM Capable | Support |
| Power Save (APSD) | Support |
| Airtime Fairness | Support |
| Band Steering | Support |
| Spectrum Analysis | Support |
| Automatic Channel Control | Support |
| Adjustable Power | Adjustable step by 1dBm |
| Access Control | Connect limitation based on mac address |
| Wireless Security | 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2 |
| DHCP Server | Support |
| VPN Pass-Through | PPTP,L2TP |
| Schedule Reboot | Support |
| Network Diagnoses | Ping |
| Time&Date Setting | Support |
| WiFi Client Association Status | Support |
| System Monitoring | Status Statistic and Event Log |
| Backup Configuration | Support |
| Restore Configuration | Support |
| Reset Device | Support from Web UI or AP Controller |
| Username Management | Support from Web UI or AP Controller |
| Reboot Device | Support from Web UI or AP Controller |
| Firmware Upgrade | Support from Web UI or AP Controller |
| Centralized Management | Managed by AC2000, AC3000 |
| Working Environment | |
| Operating Temperature | -10℃~45℃ |
| Storage Temperature | -30℃~70℃ |
| Operating Humidity | 10%-90% (non-condensing) |
| Storage Humidity | 10%-90% (non-condensing) |
| Default Login IP | 192.168.0.254 |
| Default User Name | Admin |
| Default Password | Admin |
| Certifications | FCC/CE/RoHS |
- Bảo hành: 24 tháng.
