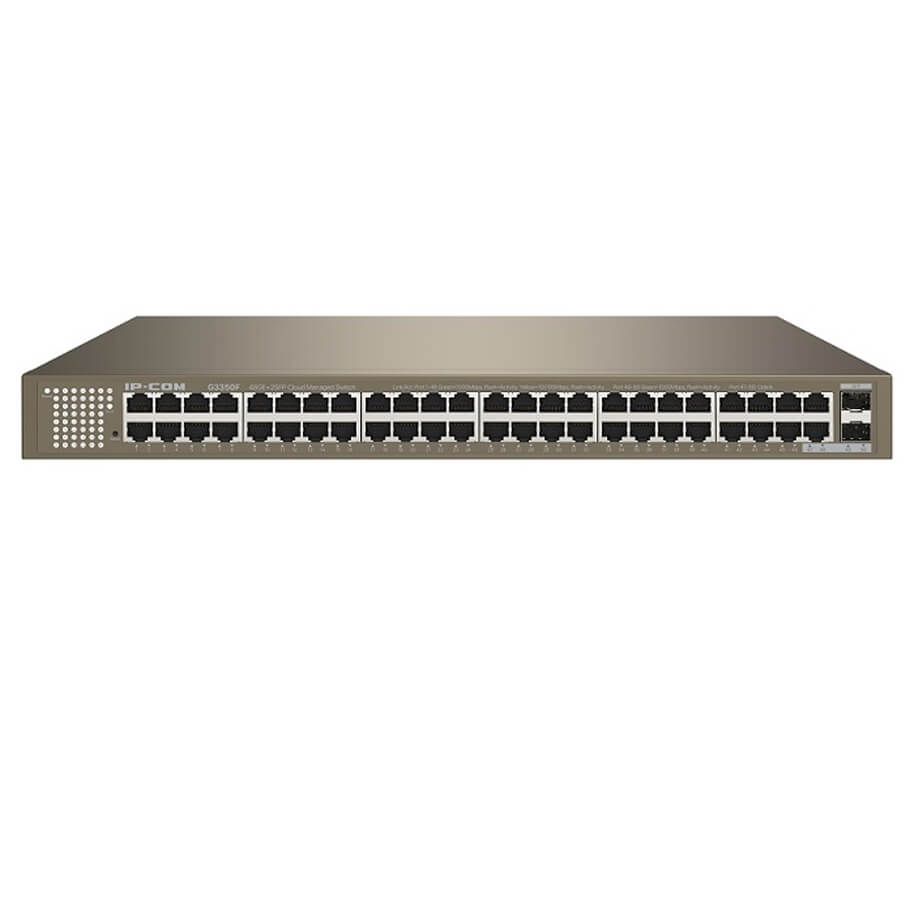

48GE+2SFP Cloud Managed Switch IP-COM G3350F
- Tuân thủ các tiêu chuẩn IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z và IEEE 802.1p/q/w/d/s.
- 48 cổng Ethernet 10/100/1000 Base-T; 2 cổng SFP 100/1000 Base-X.
- Bảng địa chỉ MAC với dung lượng 16K và khả năng tự động học địa chỉ MAC.
- Bộ nhớ đệm lớn 12MB.
- Khả năng chuyển mạch: 100 Gbps.
- Hỗ trợ VLAN, IGMP, QoS, ACL, DHCP Snooping và Telnet.
- Hỗ trợ quản lý qua ứng dụng và quản lý trực quan tại chỗ.
Thông số kỹ thuật
| Hardware | |
| Network standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s |
| LED indicators | One Link/Act LED indicator for each port One Power LED indicator One SYS LED indicator |
| Fixed ports | 48 x 10/100/1000Base-T Ethernet port 2 x 1000Base-X SFP slot |
| Lightning protection | Port: 6 kV Power supply: 6 kV |
| Forwarding mode | Store-and-forward |
| Switching capacity | 100 Gbps |
| Packet forwarding rate | 74.4 Mpps |
| Switching buffer | 12 Mbit |
| MAC address table | 16K |
| Input voltage | 100 - 240V AC 50/60Hz |
| Dimensions | 440 mm * 240 mm * 44 mm(L x W x H) |
| Environment | Operating temperature: 0°C - 45°C Operating humidity: (10% - 90%)RH, non-condensing Storage temperature: -40°C - 70°C Storage humidity: (5% - 90%)RH, non-condensing |
| Software features | |
| Security features | Support ARP receiving limit Support discarding unknown MAC addresses Support DoS attack defense Support 802.1x security authentication Support RADIUS authentication |
| VLAN | Support 4 K VLAN table Support IEEE 802.1q VLAN Support three port modes: Access, Trunk and Hybrid |
| DHCP | Support DHCP snooping Support Option 82 policy configuration |
| Port aggregation | Support Static aggregation Support Dynamic aggregation |
| STP | Support IEEE 802.1d STP (Spanning Tree Protocol) Support IEEE 802.1w RSTP (Rapid Spanning Tree Protocol) Support IEEE 802.1s MSTP (Multiple Spanning Tree Protocol) Support edge ports Support BPDU statistics |
| IGMP | Support IGMP snooping V1/V2/V3 Support fast leave of ports |
| Port mirroring | Support N: 1 port mirroring |
| QoS | Support SP (Strict Priority) Support SWRR (Simple Weighted Round Robin) Support WRR (Weighted Round Robin) Support 802.1p port trust mode Support DSCP port trust mode Support a maximum of 8-queue service quality mapping |
| ACL | Support MAC ACL Support IPv4 ACL |
| Cloud Management | Support configuration delivery from CloudFi management platform Support CloudFi App management Support log reporting and fault detection Support remote maintenance: reboot, backup, upgrade |
- Bảo hành: 36 tháng.
