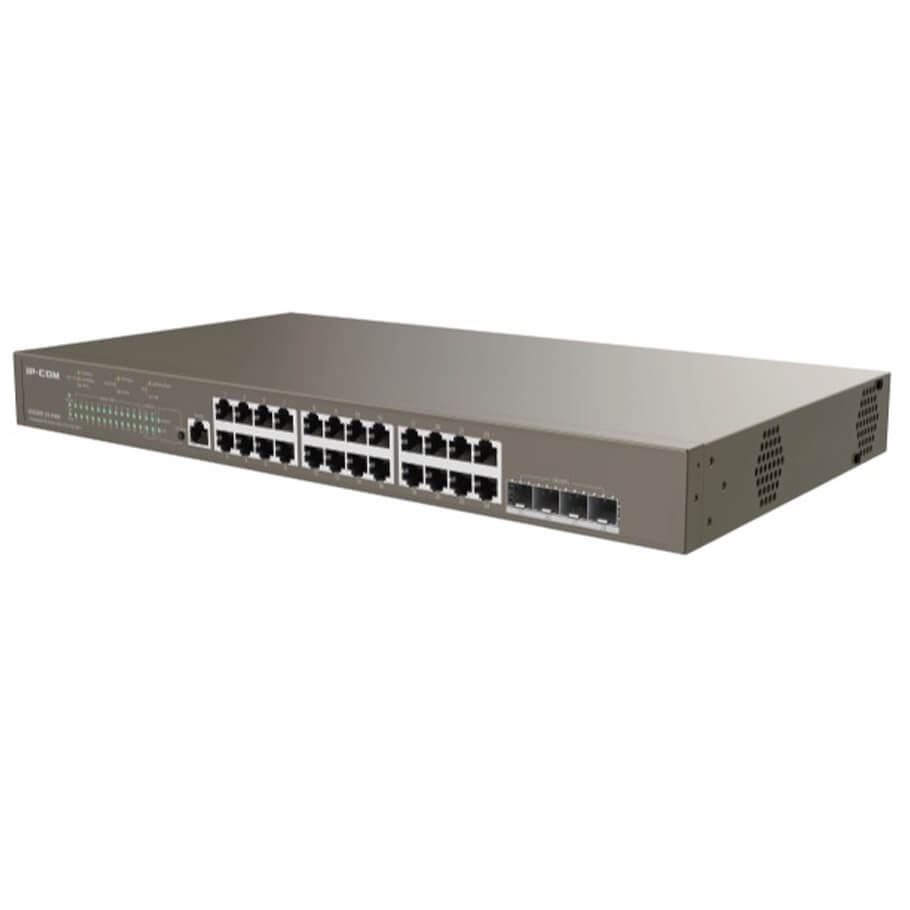

24-port GE + 4*10G SFP L3 Managed PoE Switch IP-COM G5328XP-24-410W
- Tuân thủ các tiêu chuẩn IEEE802.3/ 802.3u/ 802.3ab/ 802.3ae/ 802.3ad/ 802.3z/ 802.3x/ 802.3af/ 802.3at và IEEE802.1p/q/w/d/s.
- 24 cổng Ethernet 10/100/1000 Base-T, 4 cổng SFP+ 10G độc lập, và 1 cổng Console.
- Bảng địa chỉ MAC với dung lượng 16K và khả năng tự động học địa chỉ MAC.
- Bộ nhớ đệm lớn 12Mb; Khả năng chuyển mạch: 128 Gbps.
- Hỗ trợ máy chủ DHCP, định tuyến tĩnh, QVLAN, IGMP, QoS, ACL, DHCP snooping, SSH và nhiều chức năng khác.
- Hỗ trợ quản lý qua giao diện web ProFi Cloud, quản lý qua ứng dụng ProFi và quản lý trực quan tại chỗ.
Thông số kỹ thuật
| Model | G5328XP-24-410W |
| Hardware | |
| Network standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3af, IEEE 802.3at |
| Fixed ports | 24 × 10/100/1000 Base-T Ethernet ports 4 × 10G Base-X SFP+ ports 1 × Console port |
| Lightning protection | Port: 6 kV Power supply: 6 kV |
| Forwarding mode | Store-and-forward |
| Switching capacity | 128 Gbps |
| Packet forwarding rate | 95.2 Mpps |
| Switching buffer | 12 Mbit |
| MAC address table | 16K |
| Input voltage | 100 - 240V AC 50/60Hz |
| Dimensions (L x W x H) | 440 mm * 284 mm * 44 mm |
| Environment | Operating temperature: 0°C - 45°C Operating humidity: (10% - 90%)RH, non-condensing Storage temperature: -40°C - 70°C Storage humidity: (5% - 90%)RH, non-condensing |
| Certificates | FCC, CE, RoHS |
| Software | |
| PoE Power Supply Management | PoE port configuration and power supply with priority PoE over-temperature protection PoE scheduled management Supports intelligent management and PoE-powered device detection (port status, power assignment and PoE-powered device status) |
| Security Features | ARP receiving limit Unknown MAC address discard DoS attack defense 802.1x security authentication RADIUS authentication HTTPS secure access SSHv2 secure access |
| VLAN | 802.1Q VLAN and 4 K VLAN table Voice VLAN MAC VLAN IP subnet-based VLAN Protocol VLAN |
| DHCP | DHCP server DHCP relay DHCP snooping Supports option 82 policy configuration |
| L3 Routing | Inter-VLAN routing IPv4 static routing Static ARP |
| Port aggregation | Support Static aggregation Support Dynamic aggregation |
| STP | Support IEEE 802.1d STP (Spanning Tree Protocol) Support IEEE 802.1w RSTP (Rapid Spanning Tree Protocol) Support IEEE 802.1s MSTP (Multiple Spanning Tree Protocol) Support edge ports Support BPDU statistics |
| IGMP | Support IGMP snooping V1/V2/V3 Support fast leave of ports |
| Port mirroring | Support N: 1 port mirroring |
| QoS | SR (Strict Priority) SWRR (Simple Weighted Round Robin) WRR (Weighted Round Robin) Supports 802.1p port trust mode Supports DSCP port trust mode Supports a maximum of 8 queues service quality mapping Supports Tail-drop |
| ACL | Support MAC ACL Support IPv4 ACL |
| Cloud Management | Supports remote configuration delivery through ProFi Cloud web UI platform Supports ProFi App management Supports log reporting and fault detection Supports remote maintenance: restart, backup and upgrade |
| Local Visualization | Supports discovery and recognition of network devices such as routers, switches and APs through the LLDP protocol Supports camera discovery and recognition through the ONVIF protocol Supports automatic generation of topology Supports local view and main view Supports online/offline detection of clients Supports remote restarting of cameras Supports loop alert Supports custom device type and device name |
| Loading and upgrade | Support Telnet configuration Support SNMP V1/V2/V3 Support RMON Support LLDP-MED Support web management and maintenance Support system log Support log classification Support NTP Support Ping and Tracert tests Support memory and CPU monitoring |
- Bảo hành: 36 tháng.
