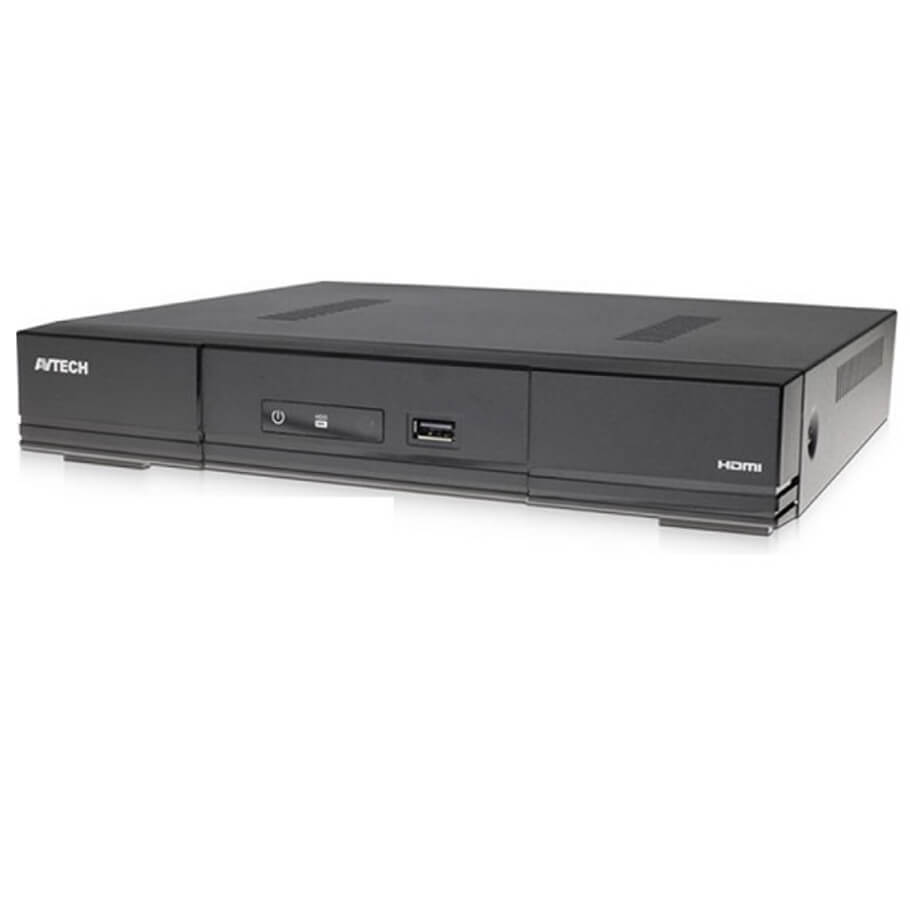

Đầu ghi hình Pentabrid 4 kênh AVTECH DGD1005AV(EU)
- Đầu ghi hình 4 kênh Camera Pentabrid 5 Megapixel.
- Chuẩn nén: H265.
- Video Signal: TVI/AHD/CVI/960H/IP.
- Video Resolution: 5M, 4M, 1080P, 720P, QHD, 960H,...
- Độ phân giải IP: 2 IP @ 1920 x 1080.
- Ghi hình và sao lưu: 24IPS@5M, Max 60IPS@1080P (4CH).
- Tương thích với tín hiệu ngõ ra: BNC, VGA, HDMI.
- Hỗ trợ 1 ổ cứng SATA HDD dung lượng 14TB.
- Hỗ trợ cổng Audio: 4 In, 1 Out.
- Hỗ trợ cổng Alarm: 4 In, 1 Out.
- Xem qua mạng bằng: IE, Firefox, Safari, CMS Free.
- Backup: USB2.0 Flash drive, Network.
- Cảnh báo khi lỗi ổ cứng, mất nguồn, bị cắt cáp.
- Chức năng đặc biệt: Pushvideo 1CH, Eazy Networking.
- Phần mềm trên điện thoại: EagleEyes.
- Hỗ trợ Cloud và tên miền miễn phí.
- Nguồn điện: 12VDC/ 2A.
Đặc tính kỹ thuật
| Model | DGD1005AV | |
| Video | ||
| Video System | NTSC / PAL (auto detection) | |
| Video Compression Format | H.265 | |
| Video Signal | IP / TVI / CVI / Analog HD / 960H | |
| Video Input | 4 pentabrid channels (IP / TVI / CVI / Analog HD / 960H), within which IP channels are up to 2 channels | |
| Video Input Interface | Analog Mode | Composite video signal 1 Vp-p 75Ω BNC |
| IP Mode | Ethernet, 10/100 Base-T | |
| Video Output | BNC | YES |
| VGA | YES | |
| HDMI | YES (4K2K display) | |
| Video Resolution | Analog Mode | 5MP / 5MLITE / 4MP / 4MLITE / FHD (1080P) / HD / 960H / Frame / CIF |
| IP Mode | 2592 x 1944 / 2048 x 1536 / 1920 x 1080 / 1280 x 720 / 720 x 480 / 352 x 240 | |
| Record & Backup | ||
| Max. Recording Rate | Analog Mode | Up to 24 IPS @ 5MP Up to 32 IPS @ 4MP Up to 60 IPS @ FHD (1080P) |
| IP Mode (2 channels) | Up to 30 IPS @ 2592 x 1944 (5MP) Up to 48 IPS @ 2048 x 1536 (3MP) Up to 60 IPS @ 1920 x 1080 |
|
| Recording Mode | Manual / Timer / Motion / Alarm / Remote | |
| Playback Channel | 4CH | |
| Quick Search | Time / Motion / Alarm search mode | |
| Backup Device | USB 2.0 drive / Network | |
| Regular Backup | Yes | |
| Audio | ||
| Audio Input | 4 | |
| Audio Output | 1 (Mono) | |
| External I/O | ||
| RS485 | Yes | |
| Alarm Input | 4 | |
| Alarm Output | 1 | |
| Network | ||
| Ethernet | 10/100 Base-T. Supports remote control and live view via Ethernet | |
| Network Protocol | TCP/IP, PPPOE, DHCP and DDNS | |
| General | ||
| Hard Disk Storage | 14TB SATA HDD x 1 or external disk array x 1 connected to the recorder via the eSATA interface | |
| SATA Interface | Yes | |
| eSATA Interface | Expandable with a SATA to eSATA cable | |
| Image Quality Setting | SUPER BEST / BEST / HIGH / NORMAL | |
| USB Mouse Control | Yes | |
| Motion Detection Area | 16 × 12 grids per channel | |
| Motion Detection Sensitivity | 3 adjustable parameters for accurate detection | |
| Event Notification | Push Video / Push Status / FTP / E-Mail | |
| Event Pop-up & Preview | Yes | |
| Scenario Setup | Yes | |
| Picture Zoom | 2X digital zoom | |
| PTZ Control | Yes | |
| Key Lock (Password Protection) | Yes | |
| User Level | 4 user levels for different access privilege | |
| Video Loss Detection | Yes | |
| Camera Title | Supports up to 25 letters | |
| Video Adjustable | Hue / Saturation / Contrast / Brightness | |
| Date Display Format | YY/MM/DD, DD/MM/YY & MM/DD/YY | |
| Daylight Saving | Yes | |
| Power Source (±10%) | 12V / 2A | |
| Operating Temperature | 10ºC ~ 40ºC (50ºF ~104ºF) | |
| Operating Humidity | 10% ~ 85% | |
| Dimensions | 260 x 235.7 x 48 mm | |
| Weight | 1.3kg | |
- Bảo hành: 24 tháng.
