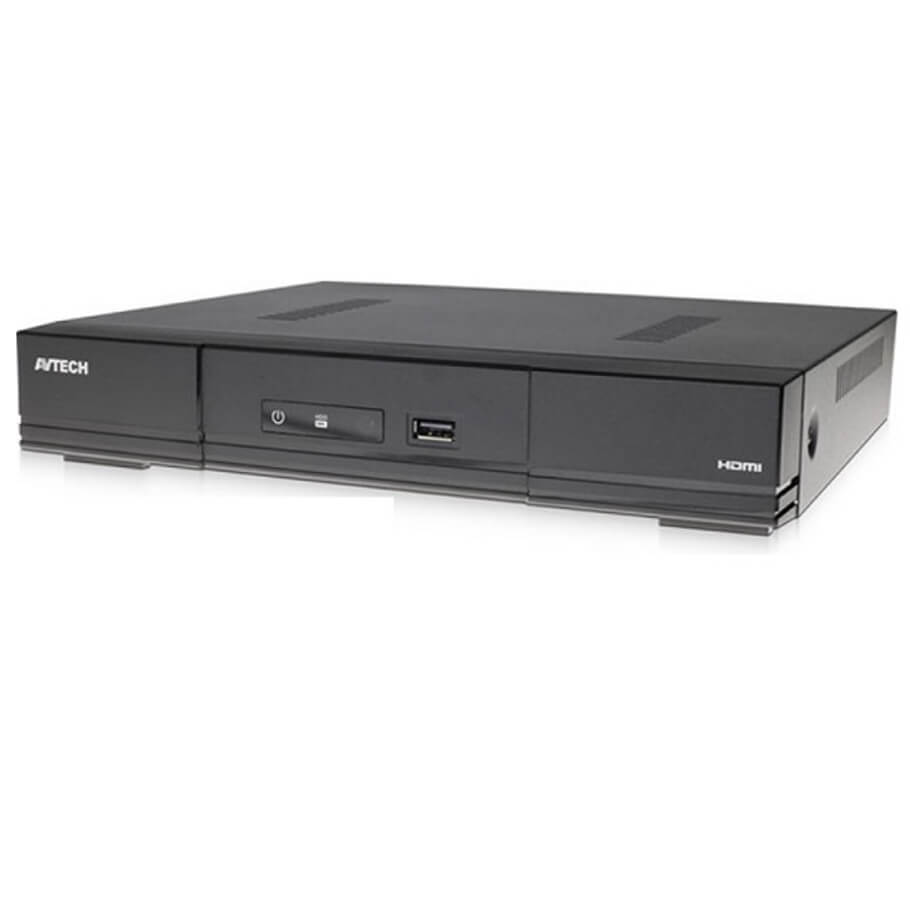

Đầu ghi hình camera IP 8kênh AVTECH AVH1109AX
- Đầu vào video: 8 LAN ports with PoE + 1 WAN port.
- Chuẩn nén hình ảnh: H.265.
- Tương thích tín hiệu cổng ra: HDMI, VGA.
- Hỗ trợ Spot Monitor.
- Hỗ trợ 1 ổ cứng với dung lượng lên đến 16TB.
- Hỗ trợ USB 2.0 x 2.
- Nhiệt độ hoạt động: 10℃ ~ 40℃ (50℉~104℉).
Đặc tính kỹ thuật
| Hardware | |
| Video Input | 8 LAN ports with PoE + 1 WAN port |
| Video Output | HDMI: Yes (4K2K) VGA: Yes (720P/Spot Monitor Supported) Composite: Yes (Spot Monitor Supported) |
| Video Output Resolution | 4K2K (3840 x 2160) |
| Audio | 1 in (mic in)/1 out |
| Alarm I/O | 4 in/1 out |
| RS485 | Yes |
| HDD Storage | Either one 16TB SATA HDD installed in the recorder, or a disk array connected to the recorder via the eSATA interface |
| USB Port | USB 2.0 x 2 |
| eSATA Port | Expandable with a SATA to eSATA cable |
| Ethernet | POE port: 10/100 Mbps x 8 (IEEE802.3af) Internet (WAN) port: 10/100 Mbps x 1 |
| Software | |
| Video Compression Format | H.265 |
| Audio Compression Format | G711 |
| Live Display Mode | - Local: 9CH - Remote: 4CH |
| Playback Display Mode | - Local: 9CH - Remote: 4CH |
| Local Single Channel Playback | Yes |
| Recording Mode | Manual/Event/Alarm/Schedule |
| Record Streaming | Dual |
| Recording Resolution | 270 IPS @ 4K2K (3840 x 2160) |
| Recording Throughput | 80Mbps |
| Pre-alarm Recording | Yes |
| Quick Search | Time/Event |
| Event Notification | Push Video/Push Status/Video Mail/Message Mail |
| Security | Multiple user access levels with password |
| Multicast | Yes |
| Seamless Recording | Yes |
| EaZy Networking | Yes |
| IVS | Yes (9CH) |
| Spot Monitor Setup | Call Monitor/Event Monitor/Live Monitor (VGA or Composite) |
| Alarm Scenario Setup | Yes |
| Alarm Pop-up & Preview | Yes |
| Free DDNS Service | Yes |
| Network | |
| Protocols | DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP, RTCP, IPv4, UPnP, DNS, UDP, IGMP |
| ONVIF Compatible | Yes |
| Max. Online User | 40 |
| Remote Access | Web browser: Windows Edge, Google Chrome, Mozilla Firefox & Opera on Windows 10 (and later versions) and Google Chrome & Mozilla Firefox on MAC PC program: 32CH CMS software for Windows OS Mobile app: EagleEyes on iOS & Android mobile devices |
| General | |
| Power Source (±10%) | DC48V/2.5A |
| Operating Temperature | 10℃ ~ 40℃ (50℉~104℉) |
| Operating Humidity | 10% ~ 85% |
| Dimensions (mm) | 260 x 235.7 x 48 |
| Net Weight (kg) | 0.912 |
| Minimum PC Browsing Requirements | ‧Intel core i3 or higher, or equivalent AMD ‧2GB RAM ‧AGP graphics card, Direct Draw, 32MB RAM ‧Windows 10 and later versions ‧Windows Edge, Google Chrome, Mozilla Firefox & Opera on Windows 10 (and later versions) |
| Optional Peripherals | USB Joystick (AVX102) / SATA to eSATA cable (PWSC07F120200) |
| Certification | CE/UL (Power Adapter) |
- Bảo hành: 24 tháng.
