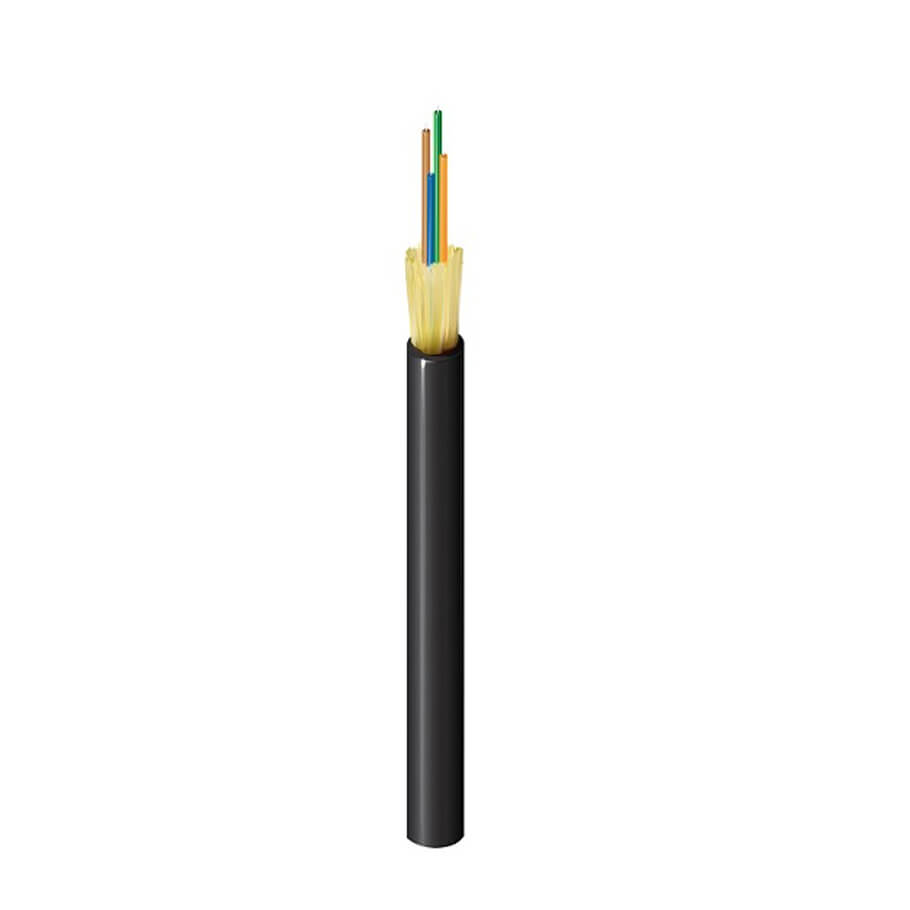

Cáp quang chuẩn G.652.D 2FO BELDEN NTAP12WA002BKAA
- Part number: NTAP12WA002BKAA
- Belden Fiber Optic - Tight Buffer - PVC Jacket - Indoor Riser 9/125 ( OS 2), 02FO.
Đặc tính kỹ thuật
| Fiber Specifications | |
| Fiber Type | OS2, G.652.D |
| Fiber Core Diameter | 9 µm |
| Fiber Diameter | 125 µm |
| Buffer Material | PVC - Polyvinyl Chloride |
| Buffer Construction | Tight Buffer |
| Buffer Diameter | 900 µm |
| Fiber Count | 2 |
| Fiber Color Coding | TIA-598-D |
| Outer Jacket Specifications | |
| Strength Member | Aramid Yarns |
| Jacket Material | PVC - Polyvinyl Chloride |
| Nom. Diameter | 4.1 mm (0.16 in) |
| Color | Black |
| Optical Characteristics | Wavelength: 1310 nm + Max. Attenuatio: 0.36 dB/km + Mode Field Diameter: 9.2 µm Wavelength: 1550 nm + Max. Attenuation: 0.22 dB/km + Mode Field Diameter: 10.4 µm |
| Mechanical Characteristics | |
| Min. Bend Radius During Installation | 20 x Cable OD |
| Min. Bend Radius During Operation | 10 x Cable OD |
| Max. Tensile Strength During Installation | 660 N (150 lbf) |
| Max. Tensile Strength During Operation | 200 N (45 lbf) |
| Crush Resistance | Max Crush Resistance During Installation: 1000N/100mm, Max Crush Resistance During Operation: 300N/100mm |
| Temperature Range | |
| Operating Temperature Range | -20 °C to +60 °C |
| Storage Temperature Range | -20 °C to +60 °C |
| Standards and Compliance | |
| Environmental Suitability | Indoor, Outdoor |
| Flammability / Reaction to Fire | UL 1666 |
| ISO/IEC Compliance | IEC 60793, IEC 60794-1 |
| European Directive Compliance | EU Directive 2011/65/EU (RoHS 2) |
