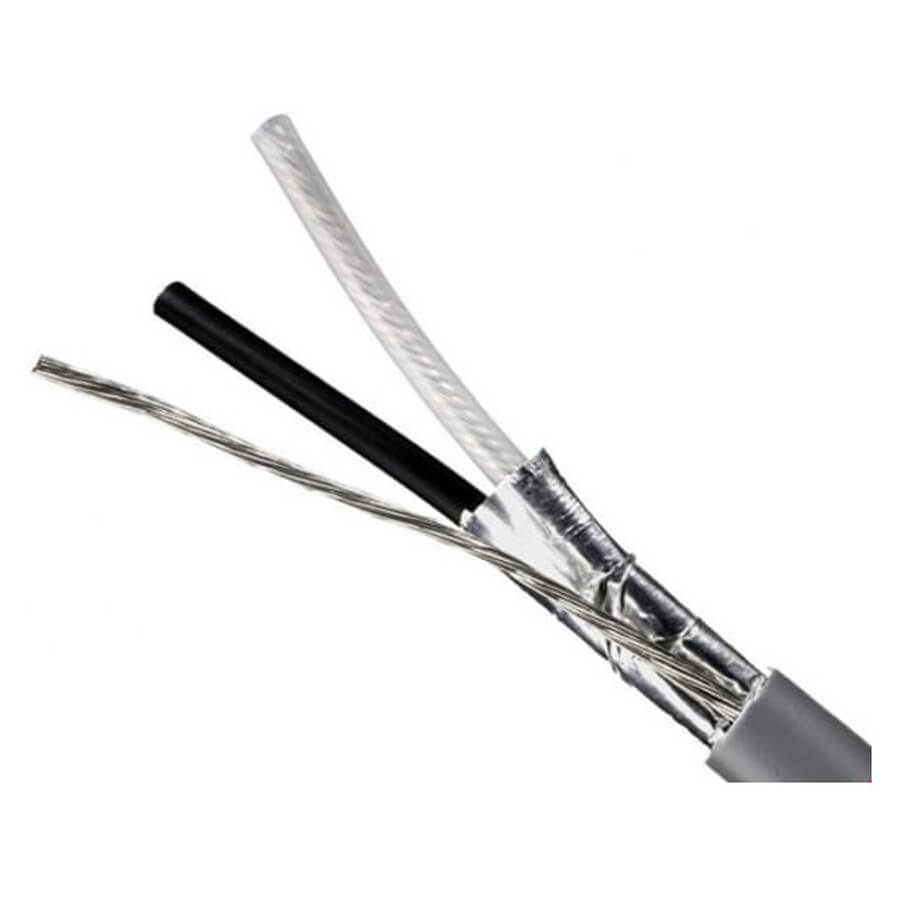

Cáp điều khiển 18AWG 1-Pair BELDEN I2331FF01
- Cáp điều khiển 1PR X1.00mm² PVC/OS/PVC Multi Pair Cable 300V.
- Tiêu chuẩn: BS EN 50288-7, IEC 60332-1.
Thông số kỹ thuật
| Cable Part Code | I2331FF01 |
| Cable Description | 1PR X0.82mm² PVC/OS/PVC Multi Pair Cable 300V |
| Cable References Standards | BS EN 50288‐7, IEC 60332‐1 |
| Conductor | |
| Conductor Material | Bare copper |
| Conductor Size | 0.82mm² |
| Conductor Stranding (No. of Strands/Diameter) | 16x30 |
| Insulation | |
| No. of Pairs | 1 |
| Insulation Material | PVC |
| Nom. Insulation Diameter (mm) | 2.5 |
| Insulation Color Code & Identification | White, Black |
| Shielding | |
| Shielded/Unshielded | Overall Foil Shield With Drain Wire |
| Outer Jacket/Sheath Material | |
| Outer Jacket Material | PVC |
| Nom. Overall Diameter (mm) | 0.028 |
| Physical/Mechanical Properties | |
| Operating temperature | ‐30°C to +60°C |
| Oil Resistance | Yes |
| UV Resistance | Yes |
| Flame / Fire Retardancy | IEC 60332‐1 |
| Electrical Properties | |
| Voltage Rating | 300V |
| Max. Conductor Resistance @ 20°C | 6.5 Ohm/1000 ft |
| Max. Mutual Capacitance Core to Core @ 1KHz | 250 pF/m |
| Max. Inductance | 18 µH/ft |
| Max. Inductance to Resistance Ratio L/R | 40 µH/Ω |
