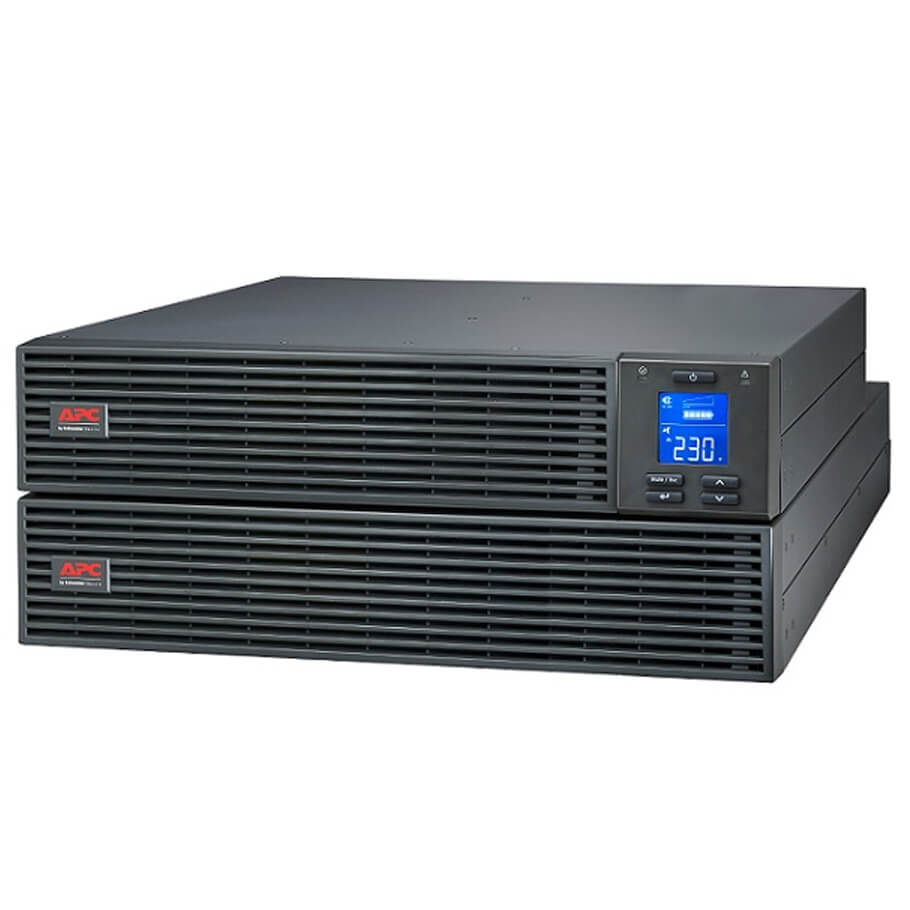

Bộ lưu điện UPS APC SRV3KRILRK-E
- Công nghệ: Double-conversion Online.
- Công suất: 2700W/ 3000VA.
- Điện thế ngõ vào: 230V.
- Điện thế ngõ ra: 230V.
- Tần số ngõ vào: 40~70Hz auto sensing.
- Tần số ngõ ra: 50/60 Hz +/- 3 Hz sync to mains.
- Dạng sóng: Sóng sine.
- Thời gian lưu điện: 13 phút (full load), 32 phút (50% load).
Thông số kỹ thuật
| Model | SRV3KRILRK-E |
| Output | |
| Output power capacity | 2700W/ 3000VA |
| Main Output Voltage | 230V |
| Output Frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Topology | Double conversion online |
| Harmonic distortion | 3% |
| Waveform | Sine wave |
| Efficiency | 90% (full load) |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3:1 |
| Output connection type | 6 IEC 60320 C13 1 IEC 60320 C19 |
| Input | |
| Main Input Voltage | 230V |
| Input voltage range for main operations | 105…300 V 40% load 180...285 V full load |
| Input frequency | 40...70 Hz auto sensing |
| Input Connections | IEC 60320 C20 |
| Batteries & Run time | |
| Battery Type | Lead-acid battery |
| Typical recharge time | 5.5 h |
| Expected Battery Life | 3 ~ 5 years |
| Nominal Battery Voltage | 72V |
| Number of battery filled slots | 1 |
| Number of battery free slots | 0 |
| Run time for full load | 13min 50s |
| Run time for half load | 32min |
| Communications & Management | |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Control panel | Multifunction LCD status and control console |
| General | |
| Number of rack unit | 4U |
| Mounting mode | Rack-mounted |
| Dimensions (DxWxH) | 63.2 x 43.7 x 17.2 mm |
| Weight | 52.2kg |
| Operating Temperature | 0 ~ 40°C |
| Storage Temperature | -20~50 °C |
| Operating Relative Humidity | 0 - 95% (non-condensing) |
| Storage Relative Humidity | 0 - 95% (non-condensing) |
| Protection Class | IP20 |
- Bảo hành: 36 tháng.
