Bộ lưu điện UPS APC SMC1500IC

Trang Chủ >> Nguồn lưu điện-Ắc quy >> Nguồn lưu điện UPS APC >> Bộ lưu điện UPS APC SMC1500IC
Mã số:28143571

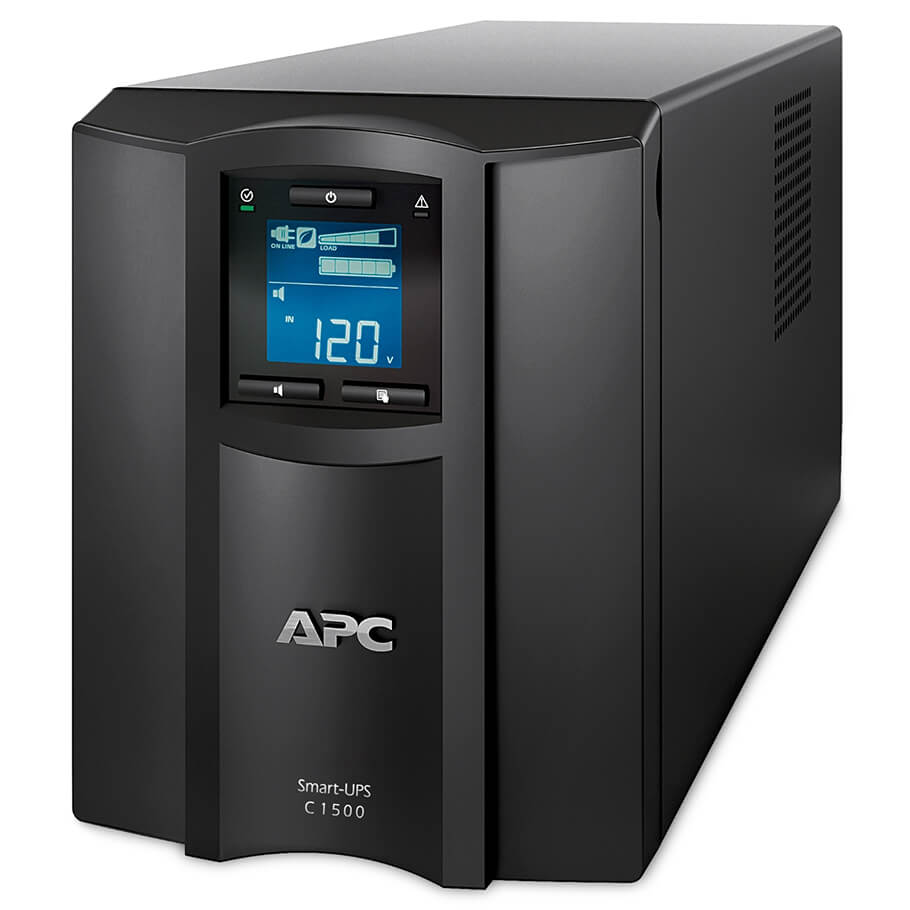

Bộ lưu điện UPS APC SMC1500IC

Bộ lưu điện UPS APC SMC1500IC

- Công suất: 900Watts / 1.5kVA.

- Công nghệ: Line Interactive.

- Nguồn điện ngõ ra: 220, 240VAC.

- Tần số ngõ ra: 50/60Hz +/- 3 Hz.

- Nguồn điện ngõ vào: 220, 240VAC.

- Tần số ngõ vào: 50/60 Hz +/- 3 Hz (auto sensing).

- Giao tiếp cổng: USB.

- Dạng sóng: Sóng sine.

- Ắc quy (Battery Volt-Amp-Hour Capacity): 288 (VAH).

- Thời gian chuyển mạch: 6ms (typical), 10ms (maximum).

- Thời gian sạc: 3 giờ.

- Pin thay thế: RBC6.

- Kết nối ngõ ra: (8) IEC 320 C13.

- Thích hợp sử dụng cho các thiết bị như: Máy vi tính, máy in, Wifi, máy chấm công, máy tính tiền, tổng đài điện thoại, máy Fax, cửa từ, thiết bị viễn thông, thiết bị mạng, camera,…

- Kích thước: 219 x 171 x 439mm.

- Trọng lượng: 20.1kg.

Đặc tính kỹ thuật

Model SMC1500IC
Output
Max Configurable Power (Watts) 900Watts / 1.5kVA
Output Voltage Distortion Less than 5%
Output Frequency (sync to mains) 50/60Hz +/- 3 Hz
Other Output Voltages 220, 240
Topology Line Interactive
Waveform type Sine wave
Transfer Time 6ms typical : 10ms maximum
Input
Input frequency 50/60 Hz +/- 3 Hz (auto sensing)
Input voltage range for main operations 180 - 287V
Input voltage adjustable range for mains operation 170 - 300V
Other Input Voltages 220, 240
Batteries & Runtime
Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time 3hour(s)
Expected Battery Life (years) 3-5
Replacement Battery RBC6
RBC Quantity 1
Battery Charge Power (Watts) 96Watts
Battery Volt-Amp-Hour Capacity 288
Communications & Management
Interface Port(s) USB
Control panel Multi-function LCD status and control console
Audible Alarm Alarm when on battery : distinctive low battery alarm : configurable delays
Surge Protection and Filtering
Surge energy rating 459Joules
Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height 219MM, 21.9CM
Maximum Width 171MM, 17.1CM
Maximum Depth 439MM, 43.9CM
Net Weight 20.1KG
Shipping weight 22.64KG
Shipping Height 330MM, 33.0CM
Shipping Width 330MM, 33.0CM
Color Black
Master Carton Units 1.0
Units per Pallet 18
Environmental
Operating Temperature 0 - 40 °C
Operating Relative Humidity 0 - 95 %
Operating Elevation 0-3000meters
Storage Temperature -15 - 45 °C
Storage Relative Humidity 0 - 95 %
Storage Elevation 0-15000meters
Audible noise at 1 meter from surface of unit 45.0dBA
Online thermal dissipation 135.0BTU/hr

- Sản xuất tại Trung Quốc hoặc Philippin.

- Bảo hành: 3 năm

Giá: 12.060.000 VND (Đã bao gồm VAT)
