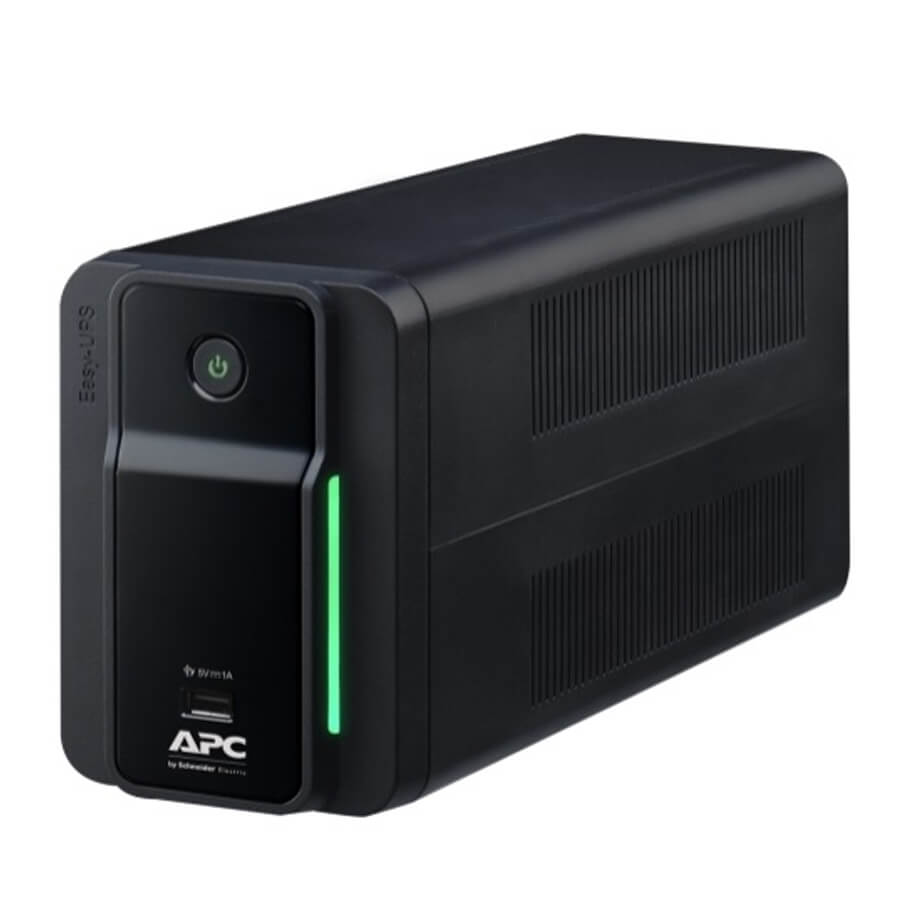

Bộ lưu điện UPS APC BVX700LUI-MS
- Công nghệ: Line interactive.
- Công suất: 360W/ 700VA.
- Điện thế ngõ vào: 230V.
- Tần số ngõ vào: 50/60Hz ±5Hz (Auto-sensing).
- Dạng sóng: Sóng sine.
- Thời gian chuyển mạch: 6ms (typical)
- Thời gian sạc: 8 giờ.
Đặc tính kỹ thuật
| Model | BVX700LUI-MS |
| Output | |
| Output power capacity | 360W/ 700VA |
| Nominal Output Voltage | 230V |
| Output Frequency | 50/60 Hz +/- 1 Hz Sync to mains |
| Topology | Line interactive |
| Waveform | Stepped approximation to a sinewave |
| Transfer Time | 6 ms typical : 10 ms maximum |
| Input | |
| Nominal Input Voltage | 230V |
| Input frequency | 50/60 Hz +/- 5 Hz Auto-sensing |
| Input voltage range for main operations | 170 - 280 (230 V) ACV |
| Number of Power Cords | 1 |
| Input Power Factor at Full Load | 0.51 |
| Input Connections | IEC 60320 C14 |
| Batteries & Run time | |
| Battery Type | Lead-acid battery |
| Typical recharge time | 8 hour(s) |
| Expected Battery Life | 2 ~ 3 years |
| Nominal Battery Voltage | 12V |
| Battery Volt-Amp-Hour Capacity | 84 |
| Run time for half load | 5m 3s |
| Features | |
| Boost Automatic Voltage Regulation (AVR) | Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery. |
| Transformer-block spaced outlets | Protect equipment with input transformer blocks without blocking access to other receptacles. |
| Sleek design | Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor. |
| Cold-start capable | Provides temporary battery power when the utility power is out |
| Communications & Management | |
| Control panel | LED Status display with on line : on battery |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm |
| Protection | |
| Battery backup and surge protection | Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage. |
| Battery and surge protected outlets | Back up and protect your hardware and data during power outages, surges and spikes |
| Surge energy rating | 273Joules |
| General | |
| Dimensions (DxWxH) | 138 x 98 x 310 mm |
| Weight | 4.2kg |
| Operating Temperature | 0 ~ 40°C |
| Storage Temperature | -15 ~ 40°C |
| Operating Relative Humidity | 0 - 95% (non-condensing) |
| Storage Relative Humidity | 0 - 95% (non-condensing) |
| Protection Class | IP20 |
- Bảo hành: 3 năm.
