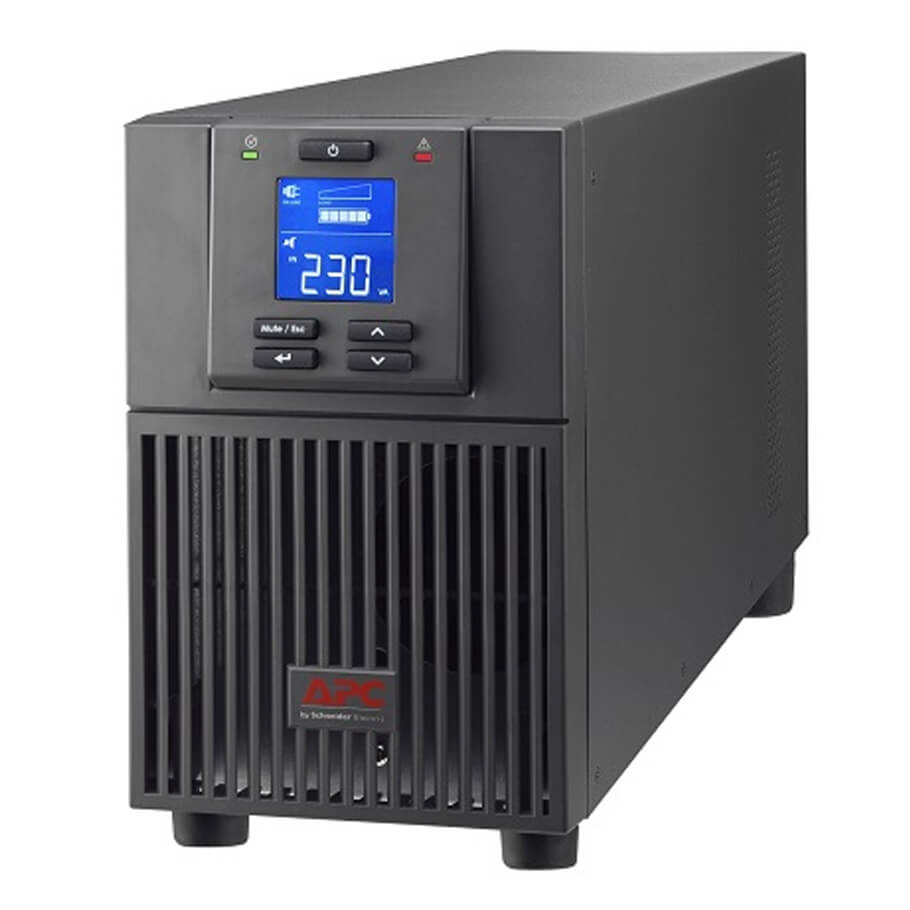

Bộ lưu điện UPS APC SRV2KI-E
- Output power capacity: 1800Watts/2.0kVA.
- Topology: Double Conversion Online.
- Waveform type: Sine wave.
- Output Connections: (4) IEC 60320 C13
- Input Connections: IEC 60320 C14.
Đặc tính kỹ thuật
| Main | |
| Main Input Voltage | 230V |
| Other Input Voltage | 220V 240V |
| Main Output Voltage | 230V |
| Other Output Voltage | 220V 240V |
| Rated power in W | 1800W |
| Rated power in VA | 2000VA |
| Input Connection Type | IEC 60320 C14 |
| Output connection type | 4 IEC 60320 C13 |
| Cable length | 1.5m |
| Number of cables | 1 |
| Provided equipment | 1 IEC 60320 C13 to Schuko power cable 1 IEC 60320 C13 to C14 power cable 1 USB cable 1 RS-232 configuration cable user manual |
| General | |
| Max runtime | 3 min |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Physical | |
| Colour | Black (RAL 7010) |
| Dimension (H x W x D) | 23.8 x 14.5 x 40 cm |
| Weight | 17.0kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| USB compatible | Yes |
| Mounting position | Vertical |
| Input | |
| Input voltage limits | 110...285V half load 180...285V full load |
| Network frequency | 40...70Hz auto sensing |
| Output | |
| Maximum configurable power in VA | 2000VA |
| Maximum configurable power in W | 1800W |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Harmonic distortion | 3% |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Efficiency | 88% (full load) |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3 : 1 |
| Conformance | |
| Product certifications | CE UKCA TISI |
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Environmental | |
| Ambient air temperature for operation | 0…40°C |
| Relative humidity | 0…95% non-condensing |
| Operating altitude | 0...3000m |
| Ambient air temperature for storage | -20…50°C |
| Storage Relative Humidity | 0…95% non-condensing |
| Storage altitude | 0…15000m |
| Acoustic level | 50 dBA |
| IP degree of protection | IP20 |
| Batteries & Runtime | |
| Battery type | Lead-acid battery |
| Battery voltage | 48V |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 4h |
| Battery life | 3…5 year(s) |
| Battery charger power | 70W rated |
| Communications & Management | |
| Alarm | Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm |
| Free slots | 1 |
| Control panel | Multifunction LCD status and control console |
| Surge Protection and Filtering | |
| Surge energy rate | 945 J |
- Công nghệ Nhật Bản.
- Bảo hành: 3 năm.
