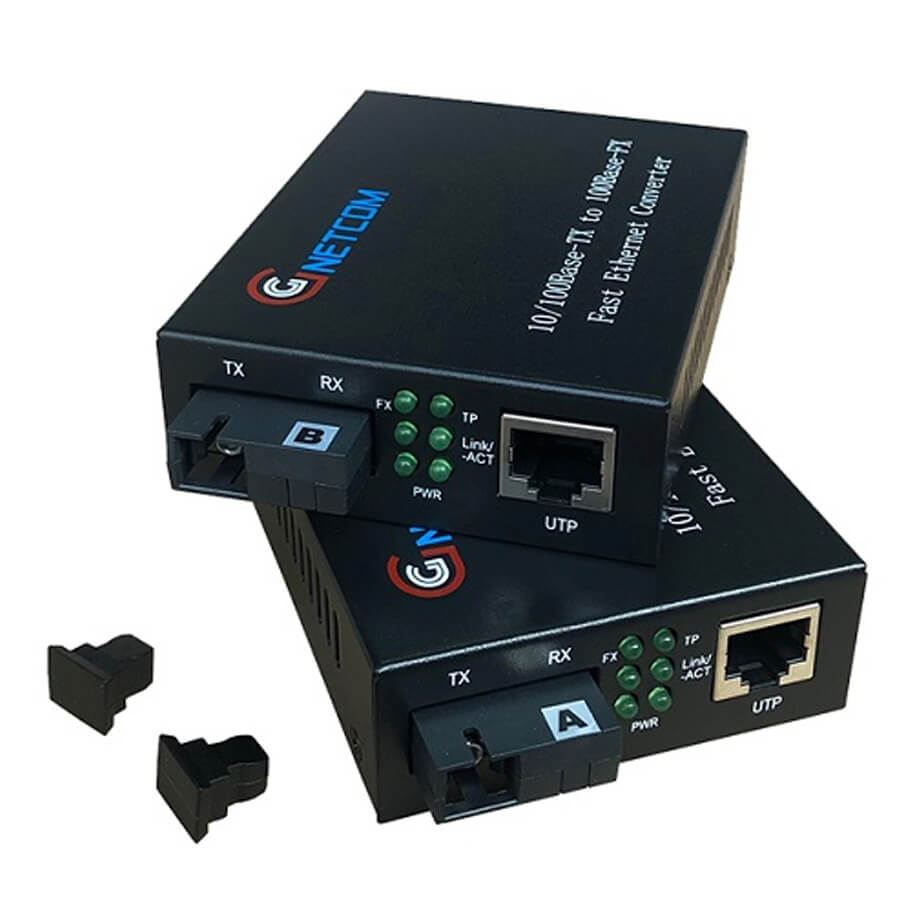

Bộ chuyển đổi quang điện 10/100Mbps GNETCOM GNC-1111S-20A/B
- Bộ chuyển đổi quang điện 10/100Mbps Single Fiber/Multi mode (1 sợi quang), sử dụng Chipset RTL8305NB (Taiwan).
- Bước sóng: 1310nm/1550nm.
- Cổng quang: SC - Simplex.
- Khoảng cách truyền: Multi-mode: 2km; Single-mode: 20km.
- Tốc độ RJ45: 10/100Mbps.
- Bộ bao gồm 2 chiếc, 2 Adapter.
Thông số kỹ thuật
| Standards | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control, IEEE802.1q VLAN, IEEE802.1p QoS, IEEE802.1d Spanning Tree |
| Fiber port | Data Rate: 155M Connector: SC as default,FC/ST (optional) Distance: Single-mode Fiber 20km Wavelength: 1310nm/1550nm TX power: ≥ -12 dBm RX Sensitivity: ≥ -33 dBm |
| Copper port | Data Rate: 10/100M Connector: RJ45 Category-5 twisted pairs: 100m |
| Performance | Conversion Means: store-and-forward/cut-through Delay time: <10us Back Bandwidth: 400Mbps MAC address Size: 4Kbit Packet Buffer Size: 512Kbit |
| LED Indicators | PWR (power supply) FX LINK/ACT (optical link/action) TP LINK/ACT (twisted pairs link/action) TP 100 (100M transmission rate of twisted pairs) FX 100 (100M transmission rate of optical fiber) |
| Electrical&Mechanical | Input power Requirements: DC5V@1A Power Adapter: AC100V~240V Power Consumption: <2W Dimensions: 9.4 x 7 x 2.6 cm Weight: 0.4kg (External power supply) |
| Environmental | Operating Temperature: -20ºC~+75ºC Storage Temperature: -40ºC~+85ºC Relative Humidity: 5%~90%(no-condensing) MTBF: >100,000 hours |
- Bảo hành: 24 tháng.
