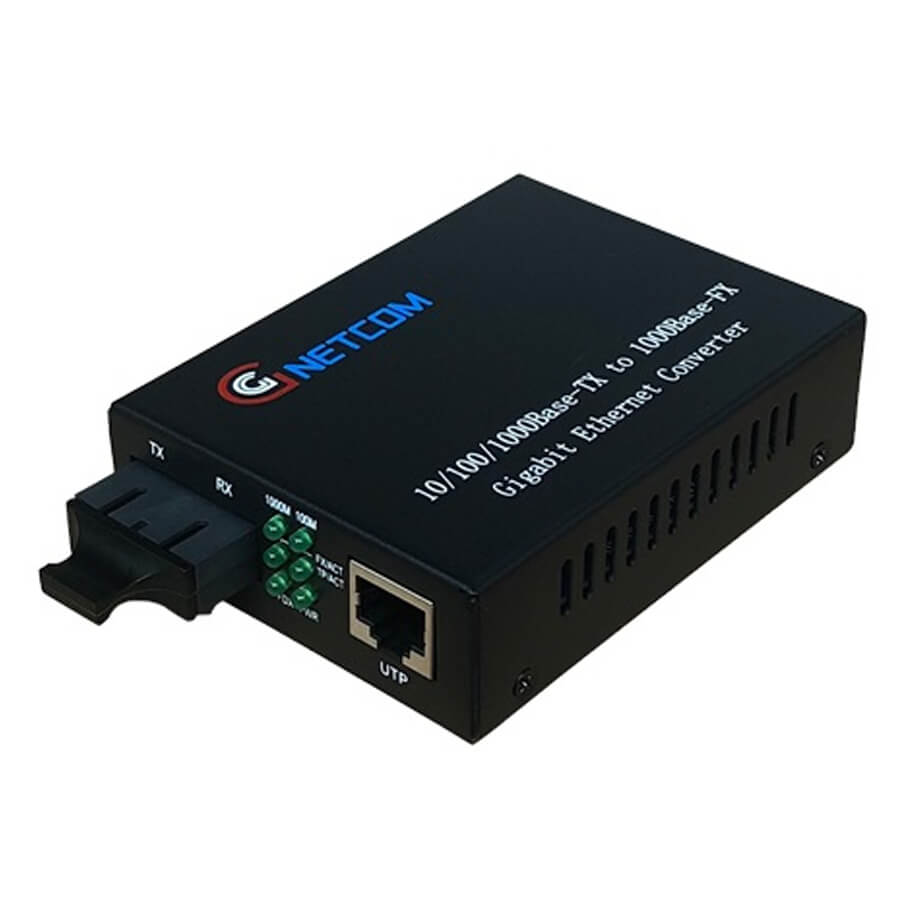

Bộ chuyển đổi quang điện 10/100/1000Mbps GNETCOM GNC-2211S-20
- Bộ chuyển đổi quang điện Gigabit Ethernet 10/100/1000Mbps Single Fiber/Multi mode (2 sợi quang), Chipset Qualcomm 8334 (USA).
- Bước sóng: 1310nm.
- Cổng quang: SC.
- Multimode: 0~2km/; Singlemode: 0~20km.
- Tốc độ RJ45: 10/100/1000Mbps.
- Bộ bao gồm 1 chiếc, 1 Adapter 5V-2A.
Thông số kỹ thuật
| Standards | IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.1qVLAN,IEEE802.1p QoS, IEEE802.1d Spanning Tree |
| Fiber port | Data Rate: 1000M Connector: SC as default,FC/ST (optional) Distance: Multi-mode Fiber 2km, Single-mode Fiber 20km Wavelength: 1310nm TX power: ≥ -10 dBm RX Sensitivity: ≥ -23 dBm |
| Copper port | Data Rate: 10/100/1000M Connector: RJ45 Category-5 twisted pairs: 100m |
| Performance | Conversion Means: Media conversion Delay Time: <10us Back Bandwidth: 4Gbps MAC Address Size: 16Kbit Packet Buffer Size: 1Mbit |
| LED Indicators | PWR (power supply) FX LINK/ACT (optical link action) TP LINK/ACT (twisted pair packet forwarding) TP LINK1000 (twisted pair link1000M) TP LINK100 (twisted pair link 100M) |
| Electrical&Mechanical | Input Power Requirements: DC5V@1A Power Adapter: AC100V~240V Power Consumption: <5W Dimensions: 9.4 x 7 x 2.6 cm Weight: 0.4kg (External power supply) |
| Environmental | Operating Temperature: -20ºC~+75ºC Storage Temperature: -40ºC~+85ºC Relative Humidity: 5%~90%(no-condensing) MTBF: >100,000 hours |
- Bảo hành: 24 tháng.
