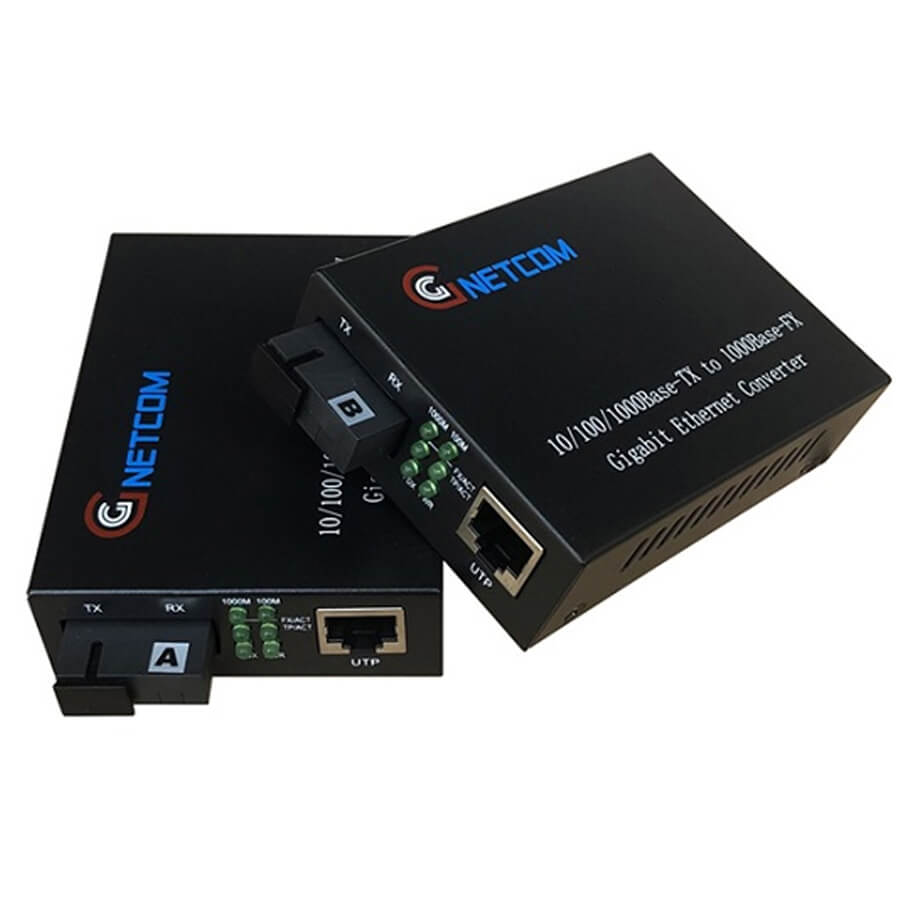

Bộ chuyển đổi quang điện 10/100/1000Mbps GNETCOM GNC-2111S-20A/B
- Bộ chuyển đổi quang điện Gigabit Ethernet 10/100/1000Mbps (1 sợi quang), sử dụng Chipset Qualcomm 8334 (USA).
- Bước sóng: 1310nm/1550nm.
- Cổng quang: SC.
- Multi-Mode: 2km; Single-Mode: 20km.
- Tốc độ RJ45: 10/100/1000Mbps.
- Bộ bao gồm 2 chiếc, 2 Adapter.
Thông số kỹ thuật
| Standards | IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.1qVLAN,IEEE802.1p QoS, IEEE802.1d Spanning Tree |
| Fiber port | Data Rate: 1000M Connector: SC as default,FC/ST (optional) Distance: Single-mode Fiber 20km, Multi-mode fiber 2km Wavelength: 1310nm/1550nm Tx power: ≥-10dBm Rx sensitivity: ≥ -23dBm |
| Copper port | Data Rate: 10/100/1000M Connector: RJ45 Category-5 twisted pairs: 100m |
| Performance | Conversion Means: Media conversion Delay time: <10us Back Bandwidth: 4Gbps MAC address Size: 16Kbit Packet Buffer Size: 1Mbit |
| LED Indicators | PWR (power supply) FX/ACT (optical link action) TP/ACT (twisted pair packet forwarding) TP LINK1000 (twisted pair link1000M) TP LINK100 (twisted pair link 100M) |
| Electrical&Mechanical | Input power Requirements: DC5V@1A Power Adapter: AC100V~240V Power consumption: <5W Dimensions: 9.4 x 7 x 2.6 cm. Weight: 0.4kg (External power supply) |
| Environmental | Operating Temperature: -20ºC~+75ºC Storage Temperature: -40ºC~+85ºC Relative Humidity: 5%~90%(no-condensing) MTBF: >100,000 hours |
- Bảo hành: 24 tháng.
