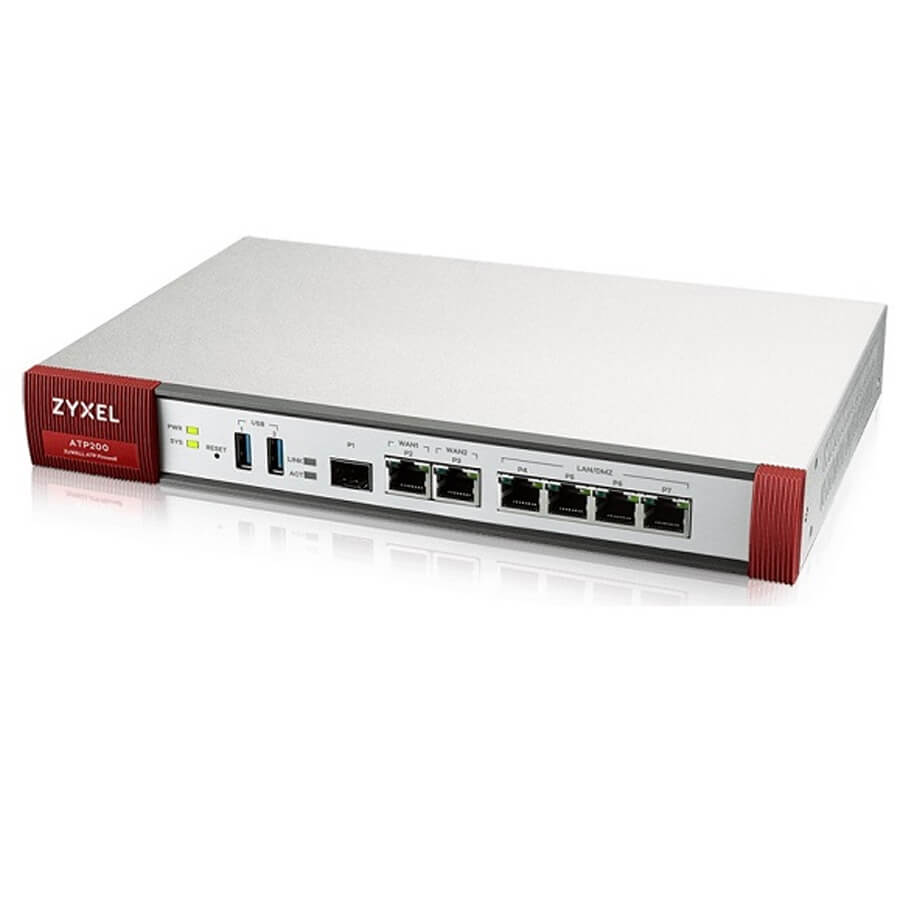

ATP Firewall ZyXEL ATP200
- Interface: 4 x LAN/DMZ, 2 x WAN, 1 x SFP.
- Sandboxing defeats unknown threats.
- Flexible to adapt to On Premises or Nebula cloud.
- High assurance multi-layered protection.
- Device Insight provides better visibility and control.
- CDR contains threats at the network edg.
- Analytics report and enhanced insights.
Specifications
| Hardware Specifications | |
| Interface | 4 x LAN/DMZ, 2 x WAN, 1 x SFP |
| USB 3.0 ports | 2 |
| Console port | DB9 |
| Rack-mountable | Yes |
| Fanless | Yes |
| System Capacity & Performance | |
| SPI firewall throughput (Mbps) | 2,000 |
| VPN throughput (Mbps) | 500 |
| IPS throughput (Mbps) | 1,200 |
| Anti-malware throughput (Mbps) | 630 |
| UTM throughput (AV and IDP, Mbps) | 600 |
| Max. TCP concurrent sessions | 600,000 |
| Max. concurrent IPsec VPN tunnels | 100 |
| Recommended gateway-to-gateway IPsec VPN tunnels |
50 |
| Concurrent SSL VPN users | 60 |
| VLAN interface | 16 |
| Speedtest Performance | |
| SPI firewall throughput (Mbps) | 900 |
| Key Features | |
| Security Service | Sandboxing Web Filtering Application Patrol Anti-Malware IPS Reputation Filter Geo Enforcer SecuReporter Premium Collaborative Detection & Response Device Insight Security Profile Sync (SPS) SSL (HTTPS) Inspection 2-Factor Authentication |
| VPN Features | VPN: IKEv2, IPSec, SSL, L2TP/IPSec Microsoft Azure: Yes Amazon VPC: Yes |
| WLAN Management | Default number of managed AP: 8 Recommend max. AP in 1 AP Group: 20 Secure WiFi Service: Yes + Maximum Number of Tunnel-Mode AP: 10 + Maximum Number of Managed AP: 40 |
| Connectivity Management | Nebula Cloud Managed Mode: Yes Concurrent devices logins (max.): 200 |
| Power Requirements | |
| Power input | 12V DC, 2.5A max. |
| Max. power consumption (Watt Max.) | 13.3 |
| Heat dissipation (BTU/hr) | 45.38 |
| Physical Specifications | |
| Dimensions (WxDxH) | 272 x 187 x 36 mm |
| Weight | 1.4kg |
| Included accessories | - Power adapter - Rack mounting kit |
| Environmental Specifications | |
| Operating environment | Temperature: 0°C to 40°C Humidity: 10% to 90% (non-condensing) |
| Storage environment | Temperature: -30°C to 70°C Humidity: 10% to 90% (non-condensing) |
| MTBF (hr) | 529,688.2 |
- Bảo hành: 36 tháng.
