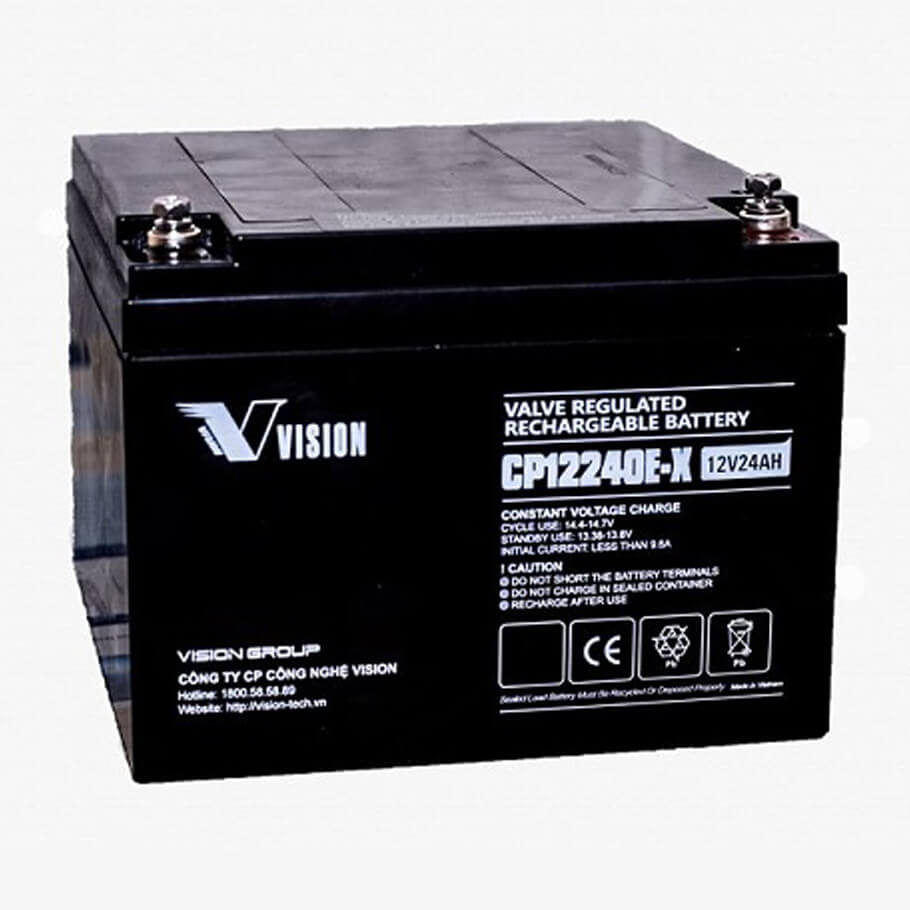

Ắc quy 12V-24Ah VISION CP12240E-X
- Dung lượng: 12V-24Ah.
- Kiểu ắc quy: Khô, kín khí, không cần bảo dưỡng.
- Sử dụng cho: UPS, bộ kích điện, thiết bị viễn thông, thiết bị mạng, xe đạp điện...
- Kích thước (LxWxH): 166 x 175 x 125 mm.
- Trọng lượng: 8.1kg.
Thông số kỹ thuật
| Battery model | CP12240E-X |
| Nominal Voltage | 12V |
| Number of cell | 6 |
| Design Life | 5 years |
| Nominal Capacity 77°F(25°C) | 20 hour rate (1.20A, 10.5V): 24Ah |
| 10 hour rate (2.37A, 10.5V): 23.7Ah | |
| 5 hour rate (4.10A, 10.5V): 20.5Ah | |
| 1 hour rate (16.0A, 9.6V): 16.0Ah | |
| Internal Resistance | Fully Charged battery 77°F(25°C): ≤ 12mOhms |
| Self-Discharge | 3% of capacity declined per month at 20°C(average) |
| Operating Temperature Range | Discharge: -20~60°C |
| Charge: -10~60°C | |
| Storage: 20~60°C | |
| Max. Discharge Current 77°F(25°C) | 300A(5s) |
| Short Circuit Current | 1200A |
| Charge Methods: Constant Voltage Charge 77°F(25°C) | Cycle use: 2.40-2.45VPC |
| Maximum charging current: 9.6A | |
| Temperature compensation: -30mV/℃ | |
| Standby use: 2.23-2.30VPC | |
| Temperature compensation: -20mV/℃ | |
| Dimensions (LxWxH) | 166 x 175 x 125 mm |
| Approx. weight | 8.1 kg |
- Bảo hành: 12 tháng.
