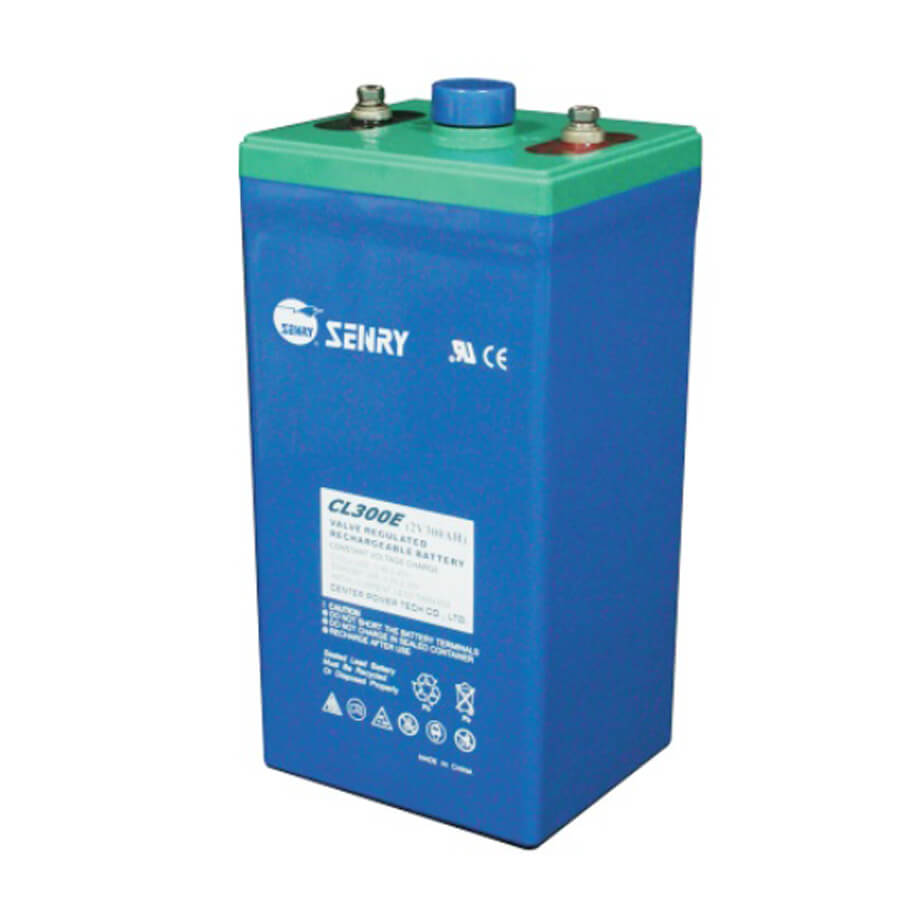

Ắc quy 2V-300Ah VISION CL300E
- Dung lượng: 2V-300Ah.
- Kiểu ắc quy: Khô, kín khí, không cần bảo dưỡng.
- Ứng dụng: Dùng cho ứng dụng UPS, viễn thông...
- Kích thước (LxWxH): 171 x 151 x 330 mm.
- Trọng lượng: 19.3 kg.
Thông số kỹ thuật
| Battery model | CL300E |
| Nominal Voltage | 2V |
| Number of cell | 1 |
| Design Life | 20 years |
| Nominal Capacity 77°F(25°C) | 10 hour rate (30.0A, 1.8V): 300Ah |
| 5 hour rate (51.5A, 1.75V): 257.5Ah | |
| 1 hour rate (185A, 1.6V): 185Ah | |
| Internal Resistance | Fully Charged battery 77°F(25°C): ≤0.75mOhms |
| Self-Discharge | 3% of capacity declined per month at 20°C(average) |
| Operating Temperature Range | Discharge: -20~60℃ |
| Charge: -10~60℃ | |
| Storage: -20~60℃ | |
| Max. Discharge Current 77°F(25°C) | 1500A(5s) |
| Charge Methods: Constant Voltage Charge 77°F(25°C) | Cycle use: 2.40-2.45VPC |
| Maximum charging current: 60A | |
| Temperature compensation: -5.0mV/℃ | |
| Standby use: 2.20-2.28VPC | |
| Temperature compensation: -3.3mV/℃ | |
| Dimensions (LxWxH) | 171 x 151 x 330 mm |
| Approx. weight | 19.3 kg |
- Bảo hành: 12 tháng.
