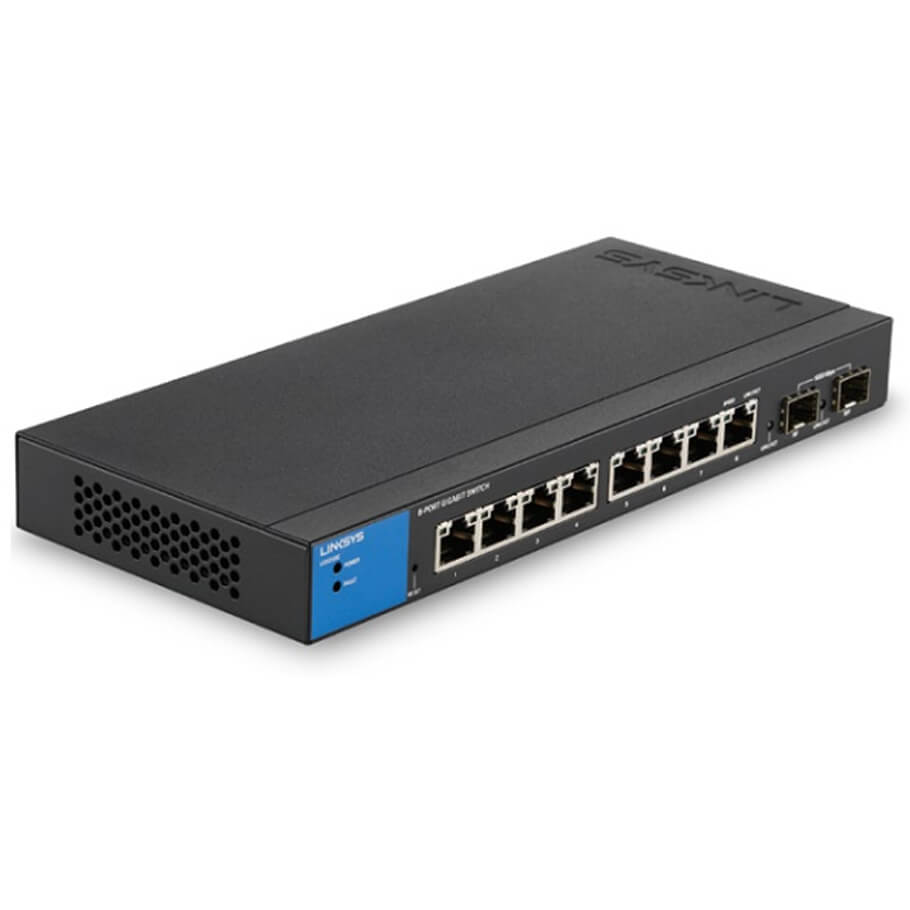

8-Port Managed Gigabit Ethernet Switch LINKSYS LGS310C
- 8 x 10/100/1000Mbps cổng LAN Gigabit Ethernet + 2 1G SFP Uplinks
- Forwarding Rate 14.88 Mpps, Switching Capacity 20 Gbps, DRAM 256MB, 8K MAC, 10Kbytes Jumbo Frame
- Hỗ trợ Layer 2, Spanning Tree Protocol (STP), Storm Control, 256 active VLANs (4,096 range)
- Hỗ trợ giao thức IPv4 (63 max entries), IPv6 (21 max entries)
- Chế độ bảo mật nâng cao (802.1x Radius authentication, DHCP snooping, IP-MAC binding, port security, DOS Attack Prevention, Port Isolation (Protected Ports)...)
- Quản lý bằng giao diện web (HTTP/HTTPS), Telnet, SSH, DHCP client, system log, configuration upload and backup via HTTP or TFTP, PING, Traceroute, dual images, SNTP…
- Đạt chuẩn tiết kiệm năng lượng EEE
- Thiết kế để bàn, vỏ hợp kim siêu bền và cho phép tản nhiệt tốt
Specifications
| Model | LGS310C |
| Routing | Static Routing, IPv4 (63 max entries), IPv6 (21 max entries) |
| Ports | 8 Gigabit Ethernet 2 Gigabit SFP |
| Memory | 256MB |
| LEDs | Power, Fault |
| Forwarding Rate | 14.88 Mpps |
| Switching Capacity | 20 Gbps |
| MAC Address Table Size | 8K |
| Jumbo Frame (FE, GE) | 8K |
| Dimensions (LxWxH) | 240 x 105 x 27 mm |
| Weight | 609 g |
| Power Consumption | 6.54W |
| Power Input | 12V/1A |
| Power Saving | EEE |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
| Operating Humidity | 10 to 90% RH |
| Storage Humidity | 5 to 95% RH (non-condensing) |
| Spanning Tree | IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s Multiple Spanning Trees (16 instances) |
| Link Aggregation | IEEE 802.3ad LACP, up to 8 groups with up to 8 ports per group |
| VLAN | Port-based and 802.1q VLANs, Management VLAN, Guest VLAN support |
| Number of VLANs Supported | 256 active VLANs (4,096 range) |
| Auto Voice VLAN | Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels |
| IGMP Snooping | IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups |
| HOL Blocking Prevention | Head of line (HOL) blocking prevention |
| Port Mirroring | Traffic on multiple ports (up to 3 ports) can be mirrored to another port for analysis with a network analyzer |
| Security Features | 802.1x Radius authentication DHCP snooping IP-MAC binding Port Security (256 max entries per port) DOS Attack Prevention Port Isolation (Protected Ports) |
| Storm Control | Support broadcast/unknown multicast/unknown unicast 16kbps~1000Mbps: in steps of 16kbps |
| Quality Of Service | 8 hardware queues Strict, Weighted Round Robin (WRR) Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based |
| Access Control | Ingress, MC Based ACL, IPv4 Based ACL, IPv6 Based ACL, ACL Binding, Action: permit/deny |
| RMON | Ingress, MC Based ACL, IPv4 Based ACL, IPv6 Based ACL, ACL Binding, Action: permit/deny |
| Management Interface | HTTP; HTTPS |
| Other Management | Telnet, SSH, DHCP client, system log, configuration upload and backup via HTTP or TFTP, PING, Traceroute, dual images, SNTP |
| SNMP | Version 1 Version 2c Version 3 |
| Firmware Upgrade | Web Browser (HTTP/HTTPS) |
- Bảo hành: 3 năm.
