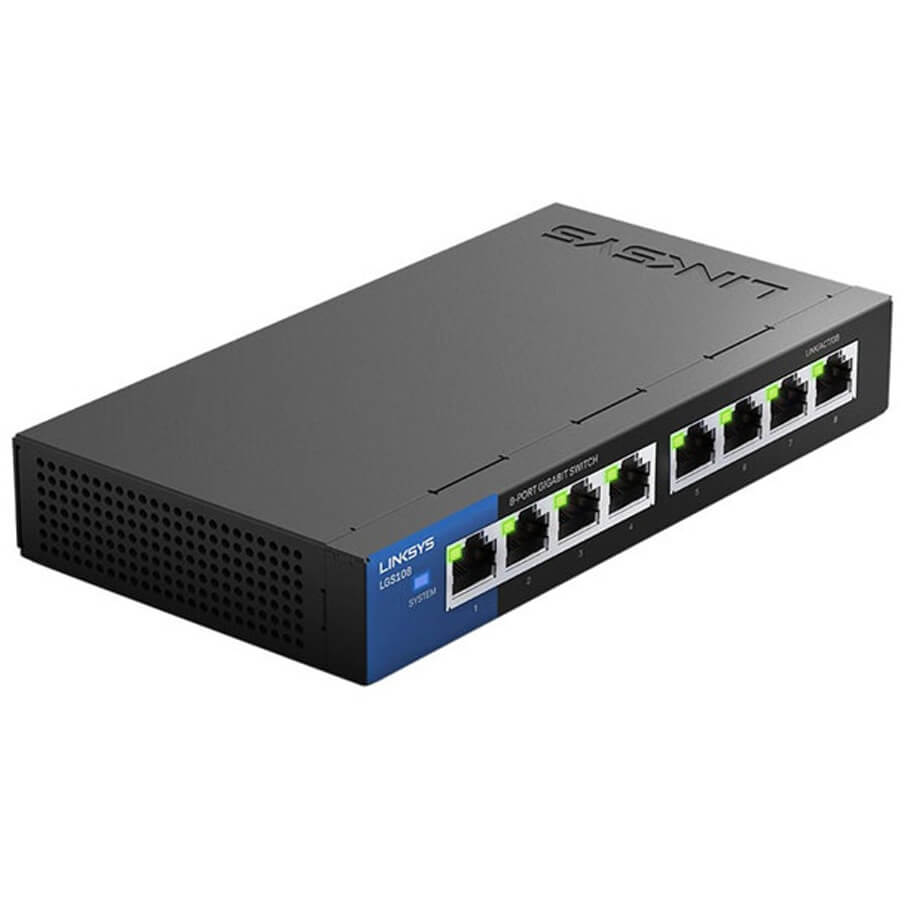

8-Port Business Desktop Gigabit Switch LINKSYS LGS108

8-Port Business Desktop Gigabit Switch LINKSYS LGS108

-      Accelerate your performance and productivity when you send large files to network servers, drives, and printers at Gigabit speeds.

-      8 Port 10/100/1000 Mbps with MDI and MDI crossover (MDI-X); auto negotiated port.

-      Bandwidth: 16 Gbps (non-blocking).

-      Performance: Full line rate and forwarding rate of 64B frame at: 1.488Mpps for 1000M port; 0.1488Mpps for 100M port; 0.01488Mpps for 10M port.

-      Wired connection speed up to 1000 Mbps

-      8 Gigabit Ethernet auto-sensing ports

-      Easy plug & play connection

-      QoS

-      Meets EEE (Energy Efficient Ethernet) 802.3az standard

GIGABIT PERFORMANCE

Minimize transfer times and interference while streaming high-bandwidth files to connected devices.

PLUG-AND-PLAY CONVENIENCE

Instantly extend your office network with a quick and easy installation.

AUTO-SENSING PORTS

Automatically optimize speed for each connected device.

POWER-SAVING FEATURES

The auto power-down feature disables unused ports, smart power is ideal for short cable runs, and the port status switch controls LED lights.

Technical specifications

-      Network Standards:

o   IEEE 802.3

o   IEEE 802.3u

o   IEEE 802.3x

o   IEEE 802.3ab

o   IEEE 802.3az

-      Ports:
8 Gigabit Ethernet (10/100/1000) Ports

-      LEDs:
Link and activity indicators

-      Performance:

o   Full line rate and forwarding rate of 64B frame at:

o   1.488 Mpps for 1000M port

o   0.1488 Mpps for 100M port

o   0.01488 Mpps for 10M port

-      MAC Address Table Size:
8,000 entries

-      Bandwidth:
16 Gbps (non-blocking)

-      Minimum System Requirements:
Connected devices need Ethernet connectivity and Ethernet cables

-      Dimensions (LxWxH):
121 x 75 x 26 mm (4.76 x 2.95 x 1.02 in.)

-      Weight:
0.340 kg (0.75 lbs)

-      Power:
100-240VAC, 50/60Hz, 5VDC

-      Power Consumption:
1.07W / 3.53W

-      Power Saving:
Cable connected detection, cable length detection, sleep mode.

-      Power Supply:
External

-      Operating Temperature:
0–40°C (32–104°F)

-      Storage Temperature:
-20–70°C (-4–158°F)

-      Operating Humidity:
10–90% (non-condensing)

-      Storage Humidity:
10–90% (non-condensing)

-      Mounting:
Wall

-      Regulatory Compliance:
FCC Class B, CE

-      Bảo hành chính hãng: 12 tháng.
