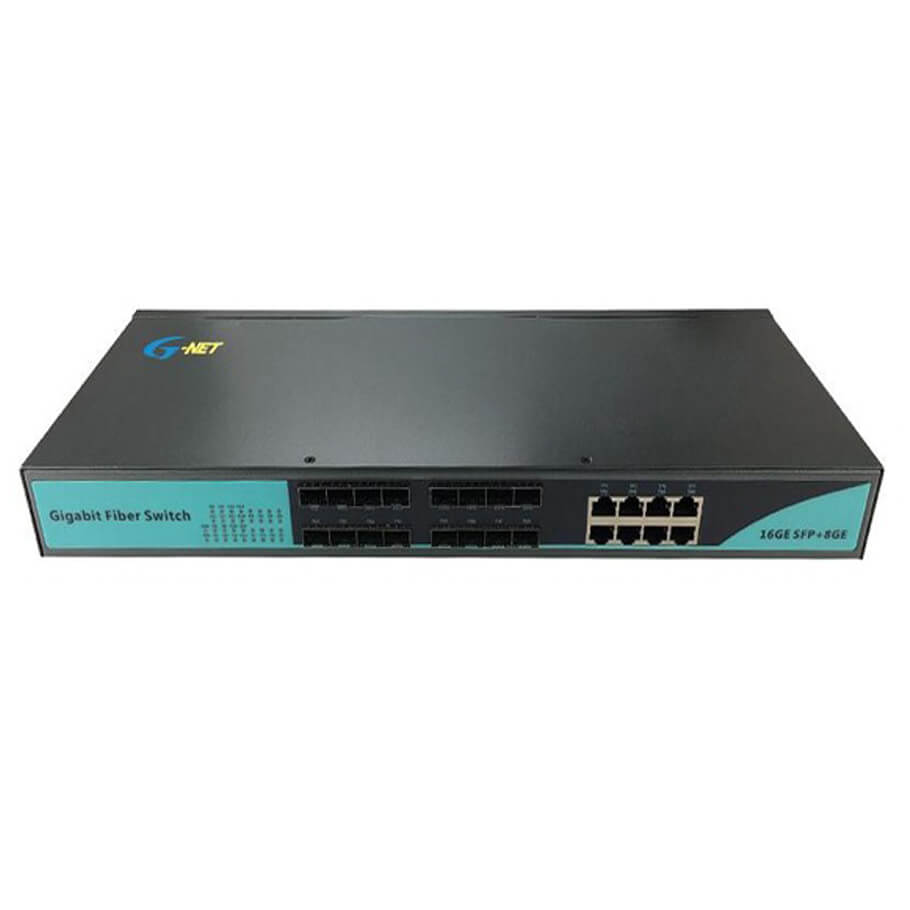

8-port 10/100/1000Base-TX Ethernet Switch G-NET G-UES-16GX8GT-SFP
- Support 16 x 1000Base-FX SFP Slots and 8 x 10/100/1000Base-TX RJ45 ports for uplink.
- Compliant with IEEE802.3, IEEE 802.3ab, IEEE 802.3z, IEEE802.3u, IEEE802.3x standard.
- Support store-and-forward forwading mode.
- Flow Control Type: Full duplex adopts IEEE 802.3x standard, half duplex adopts back pressure standard.
- Supports 10/100/1000M full duplex and half duplex.
- Supports auto MDI/MDI-X, obtains the fastest possible connection.
- Supports MAC address auto learning and auto aging.
- LED indicators display the working status, supporting simple trouble shooting.
- All ports support wire speed switch, jumbo frame transmission.
- Support automatic temperature control.
- Support automatic fan failure alarm.
- Plug and play, no configuration required.
- Desktop or 1U Rack Mounted,easy to install and use.
- Fanless design, natural cooling.
- Dual AC power input.
Đặc tính kỹ thuật
| Standard | IEEE802.3 10Base-T IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX IEEE802.3u 100Base-TX/FX IEEE802.3x flow control |
| Switch Properties | Switching Capacity: 52Gbps CPU: 500Mhz MAC Address Table: 16K Packet Buffer Size: 4M Switching mode: Store and Forward |
| Network Medium | 10BASE-T: Cat3, 4, 5 UTP (≤100 meters) 100BASE-TX: Cat5 UTP or better (≤100 meters) 1000BASE-TX: Cat5 UTP or better (≤100 meters) |
| Flow Control | Full duplex adopts IEEE 802.3x standard, half duplex adopts back pressure standard |
| Fiber Port | 16 x 1000Base-FX SFP Slots |
| Ethernet Port | 8 x 10/100/1000Mbps RJ45 Ports |
| Transmission Distance | Twisted pair: 0-100m (CAT5e/CAT6) Multi mode fiber: 0-2km Single mode fiber: 0-20/40/60/80/100km |
| Power | Dual AC 100-240V, 50/60Hz inputs Automatic synchronous switching circuit |
| Indicator | 1-16, PLS, PMS, Giga, Link |
| Mechanical | Case: Metal Cooling way: Built-in dual fan Installation: Desktop or 1U Rack Mounted Dimension: 441 x 176 x 47 mm (L x W x H) Weight: 2.3kg |
| Environmental | Working Temperature: -30°C to 50°C Storage Temperature: -40°C to 70°C Working Humidity: 10%~90% (non-condensing) Storage Humidity: 5% ~ 90%(non-condensing) |
| MTBF | 100,000 hours |
