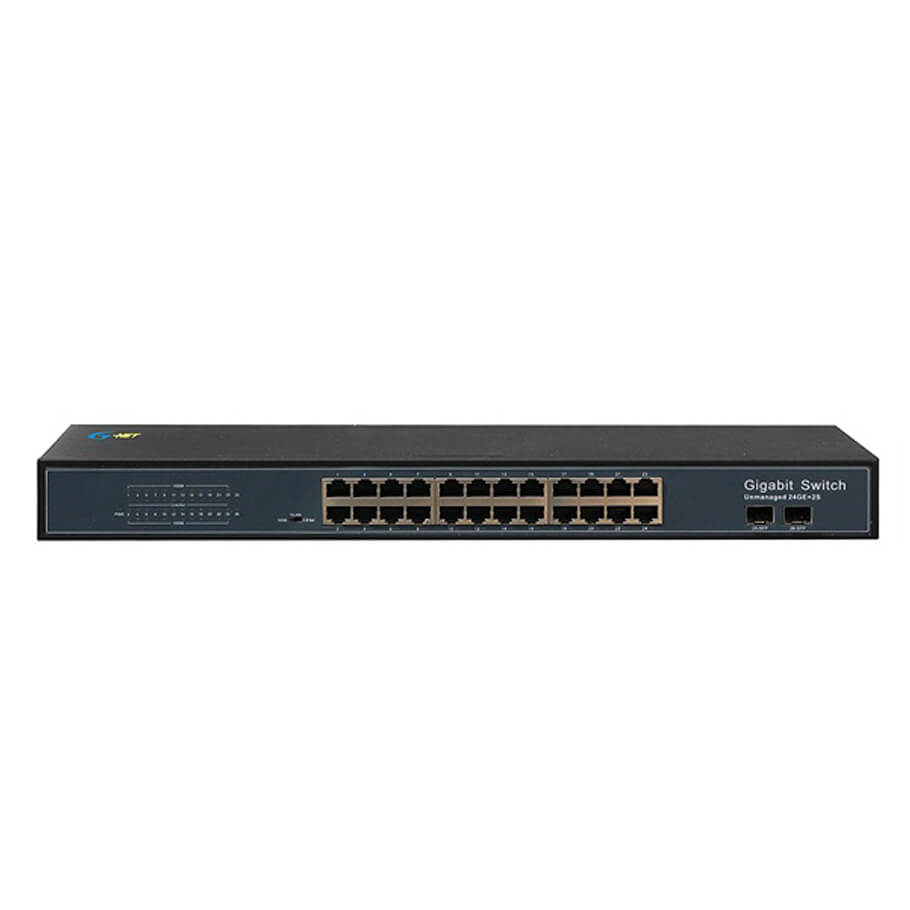

24-port 10/100/1000Base-TX Ethernet Switch G-NET G-UES-2GX24GT-SFP
- Support 2 x 1000Base-FX SFP ports and 24 x 10/100/1000Base-TX Auto-Negotiation RJ45 ports.
- Compliant with IEEE802.3, IEEE 802.3ab, IEEE 802.3z, IEEE802.3u, IEEE802.3x standard.
- Support store-and-forward forwading mode.
- Flow Control Type: Full duplex adopts IEEE 802.3x standard, half duplex adopts back pressure standard.
- Supports 10/100/1000M full duplex and half duplex.
- Supports auto MDI/MDI-X, obtains the fastest possible connection.
- Supports MAC address auto learning and auto aging.
- LED indicators display the working status, supporting simple trouble shooting.
- All ports support wire speed switch, jumbo frame transmission.
- Plug and play, no configuration required.
- 1U Rack mounted or desktop, easy to install and use.
- Fanless design, natural cooling.
- AC100-240V power input.
Đặc tính kỹ thuật
| Standard | IEEE802.3 10Base-T IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX IEEE802.3u 100Base-TX/FX IEEE802.3x flow control |
| Switch Properties | Switching Capacity: 52Gbps MAC Address Table: 8K CPU: 500Mhz Cache: 4.1M Switching mode: Store and Forward |
| Network Medium | 10BASE-T: Cat3, 4, 5 UTP (≤100 meters) 100BASE-TX: Cat5 UTP or better (≤100 meters) 1000BASE-TX: Cat5 UTP or better (≤100 meters) |
| Flow Control | Full duplex adopts IEEE 802.3x standard, half duplex adopts back pressure standard |
| Fiber Port | 2x1000Base-FX SFP ports |
| Ethernet Port | 24x10/100/1000Mbps RJ45 |
| Transmission Distance | Twisted pair: 0-100m(CAT5e/CAT6) Fiber port: Based on SFP module choose |
| Power | Input Voltage: AC100-240V, 50/60Hz |
| Indicator | PWR, Link/Act |
| Mechanical | Case: Metal Cooling way: Natural cooling,fanless design Installation: 1U Rack Dimension: 440 x 140 x 45 mm (L x W x H) Weight: 2.5kg |
| Environmental | Working Temperature: 0°C to 50°C Storage Temperature: -40°C to 70°C Working Humidity: 10%~90% (non-condensing) Storage Humidity: 5% ~ 90% (non-condensing) |
| MTBF | 100,000 hours |
