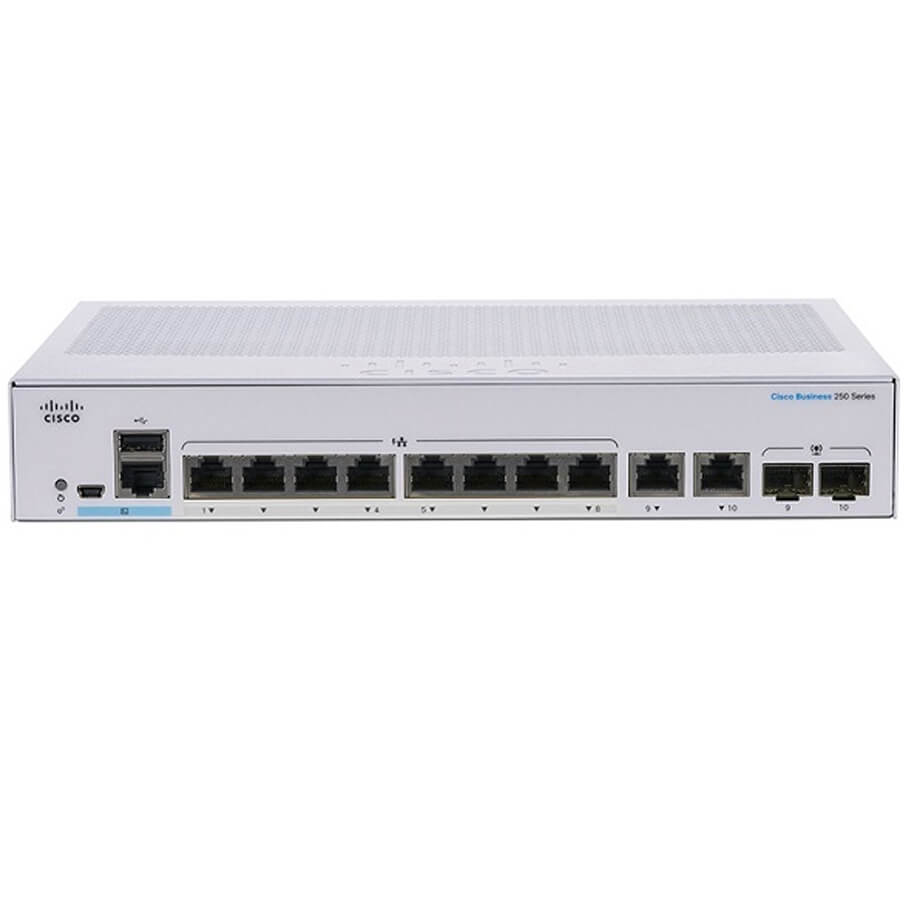

8-Port Gigabit Ethernet Smart Switch CBS250-8T-E-2G-EU
- Hỗ trợ 8 cổng Gigabit Ethernet và 2 cổng Combo Gigabit Ethernet (RJ45 + khe cắm module quang SFP).
- Dung lượng chuyển mạch: 20,0 Gbps.
- Jumbo frames: Hỗ trợ kích thước gói dữ liệu lên tới 9K byte. MTU mặc định là 2K byte.
- Bảng MAC: Lưu trữ tối đa 8.000 địa chỉ.
- Loại cáp: Cáp xoắn đôi không bọc (UTP) Cat 5e hoặc tốt hơn cho kết nối 1000BASE-T.
- Bộ nhớ Flash: 256 MB.
- CPU: ARM 800 MHz.
- DRAM: 512 MB.
- Kích thước (R x D x C): 268 x 185 x 44 mm.
- Trọng lượng: 1,39 kg.
Đặc tính kỹ thuật
| Model | CBS250-8T-E-2G-EU |
| Performance | |
| Capacity in millions of packets per second (mpps) (64-byte packets) | 14.88 |
| Switching capacity | 20.0Gbps |
| General | |
| Jumbo frames | Frame sizes up to 9K bytes. The default MTU is 2K bytes |
| MAC table | 8K addresses |
| System power consumption | 110V=12.55W 220V=12.56W |
| Heat dissipation (BTU/hr) | 42.86 |
| Buttons | Reset button |
| Cabling type | Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T |
| LEDs | System, Link/Act, Speed |
| Flash | 256 MB |
| CPU | 800MHz ARM |
| DRAM | 512 MB |
| Packet buffer | 1.5 MB |
| Ports | |
| Total system ports | 10 Gigabit Ethernet |
| RJ-45 ports | 8 Gigabit Ethernet |
| Combo ports (RJ-45 + SFP) | 2 Gigabit Ethernet combo |
| Console port | Cisco Standard mini USB Type-B/RJ45 console port |
| USB slot | USB Type-A slot on the front panel of the switch for easy file and image management |
| Environmental | |
| Unit dimensions (W x D x H) | 268 x 185 x 44 mm |
| Unit weight | 1.39 kg |
| Power | 100 to 240V, 50 to 60 Hz, external |
| Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Operating temperature | -5° to 50°C |
| Storage temperature | -25° to 70°C |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Storage humidity | 10% to 90%, relative, noncondensing |
| Acoustic noise and Mean Time Between Failures (MTBF) | |
| Fan (number) | Fanless |
| MTBF at 25°C (hours) | 2,171,669 |
- Bảo hành: 12 tháng.
