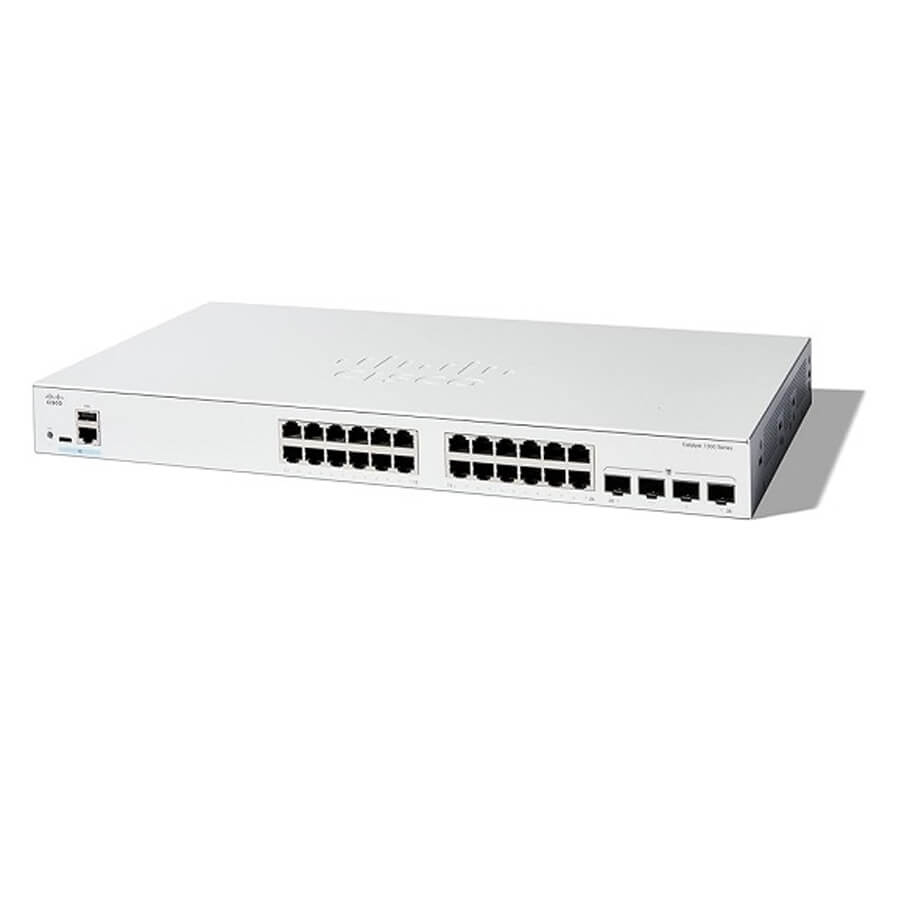

24-Port GE + 4-Port 1G SFP Switch CISCO C1300-24T-4G
- C1300-24T-4G là thiết bị chuyển mạch thuộc dòng Cisco Catalyst 1300 cung cấp 24 cổng 10/100/1000Mbps và 4 cổng 1G SFP uplink. Switch Cisco C1300-24T-4G được tích hợp đầy đủ tính năng layer 3 cùng khả năng quản lý hiệu quả, phù hợp để xây dựng hệ thống mạng tại các doanh nghiệp vừa và nhỏ.
- CPU: ARM dual-core at 1.4GHz.
- DRAM: 1GB DDR4.
- Packet buffer: 1.5MB.
- Tốc độ chuyển tiếp: 41.66Mpps.
- Khả năng chuyển mạch: 56.0Gbps.
Thông số kỹ thuật
| Performance | |
| Switching capacity and forwarding rate | Capacity in Millions of Packets Per Second (mpps) (64-byte packets): 41.66 Switching capacity in Gigabits per second (Gbps): 56.0 |
| General | |
| Jumbo frames | Frame sizes up to 9000 bytes. The default MTU is 2000 bytes |
| MAC table | 16,000 addresses |
| Chip guard | Detects tampering attempts and responds during bootup |
| Boot integrity | Boot integrity visibility allows Cisco's platform identity and software integrity information to be visible and actionable |
| Hardware | |
| Power consumption (worst case) | System power consumption: + 110V=14.6W + 220V=14.8W Heat dissipation (BTU/hr): 50.5 Idle Power: + 110V=4.9W + 220V=5.2W |
| Ports | Total system ports: 28 x Gigabit Ethernet RJ-45 ports: 24 x Gigabit Ethernet Combo ports (RJ-45 + Small Form-Factor Pluggable [SFP]): 4 x SFP |
| Console port | Cisco standard RJ-45 console port and USB Type C port |
| USB port | USB Type C port on the front panel of the switch for easy file and image management as well as console port |
| Buttons | Reset button |
| Cabling type | Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T |
| LEDs | System, Link/Act, PoE, Speed |
| Flash | 512 MB |
| CPU | ARM dual-core at 1.4 GHz |
| DRAM | 1 GB DDR4 |
| Packet buffer | 1.5 MB |
| Environmental | |
| Unit dimensions (W x D x H) | 445 x 240 x 44 mm |
| Unit weight | 2.63 kg |
| Power | 100-240V 50-60 Hz, internal, universal |
| Certifications | UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Operating temperature | 23° to 122°F (-5° to 50°C) |
| Storage temperature | -13° to 158°F (-25° to 70°C) |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Storage humidity | 10% to 90%, relative, noncondensing |
| Acoustic noise and mean time between failures (MTBF) | FAN (number): Fanless MTBF at 25°C (hours): 664,987 |
- Bảo hành: 12 tháng.
