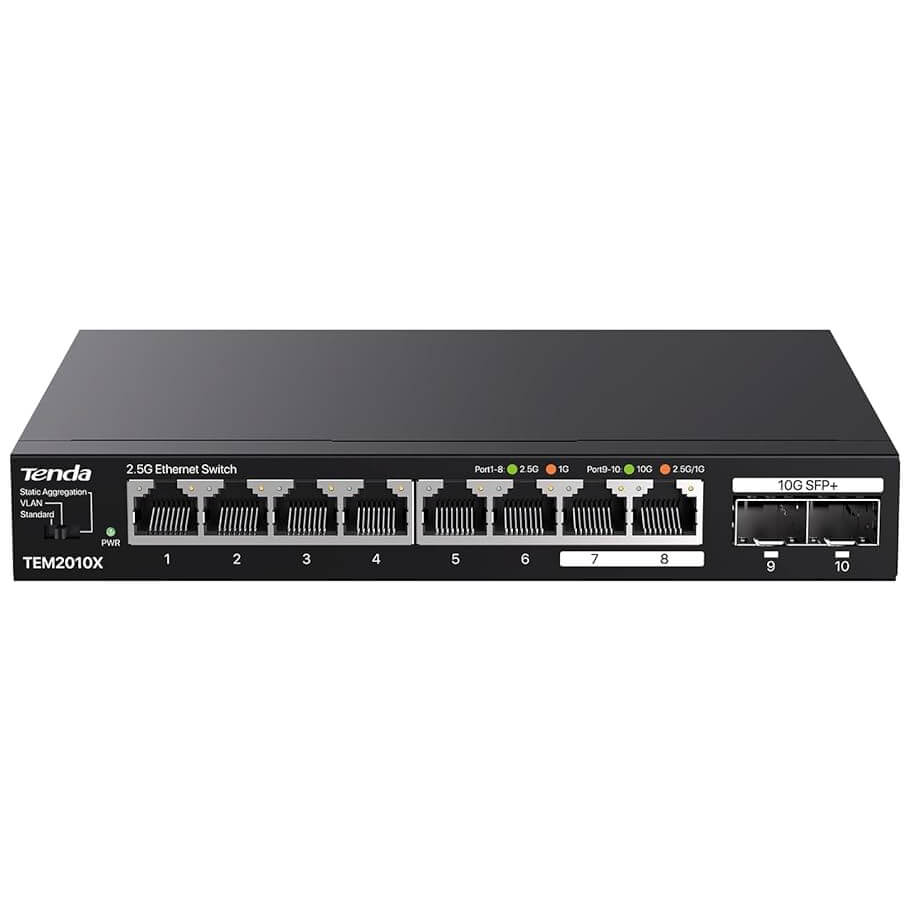

8-Port 2.5G + 2-Port 10G SFP+ Switch TENDA TEM2010X
- TEM2010X là switch 2.5G 8 cổng, đi kèm 2 khe cắm 10G SFP+, được Tenda thiết kế để xây dựng hệ thống mạng tốc độ cao cho máy tính, NAS, TV box, Wi-Fi 6/7 APs và nhiều thiết bị khác.
- Thiết bị hỗ trợ ba chế độ hoạt động, linh hoạt trong việc triển khai mạng theo nhu cầu sử dụng. Với hiệu suất cao, TEM2010X là giải pháp lý tưởng cho doanh nghiệp nhỏ (SME), văn phòng tại nhà (SOHO), biệt thự hoặc các hệ thống mạng không dây yêu cầu băng thông lớn và tốc độ kết nối ổn định.
Thông số kỹ thuật
Network standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3z |
LED Indicator | Power, Link/Act |
Interfaces | (8)2.5GE RJ45 ports, (2)10GE SFP+ ports |
Transmission media | Recommended: CAT5/5e UTP or better |
Dimensions | 177 x 104 x 26 mm |
Material | Metal |
Level of protection | Port: 6 KV |
Forwarding mode | Store-and-forward |
Switch capacity | 80Gbps |
MAC address table | 59.5Mpps |
Power method | 100-240V AC 50/60Hz |
Power consumption | Max:<12W |
Mounting | Desktop mounting: support; Wall mounting: support |
Environment | Operating Temperature: 0℃~40℃; Storage Temperature: -40℃~70℃; Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
Certifications | FCC, CE, RoHS, UKCA |
Funtions | 1. Standard: In this mode, all ports can communicate with each other.; 2. VLAN: Ports 1-6 are isolated from each other, but can communicate with ports 7-10; 3. Static Aggregation: Group 1: 7-8. For dual-port 2.5G NAS, up to 5 Gbps |
Protocols | FCC, CE, RoHS, UKCA |
- Bảo hành: 36 tháng.
