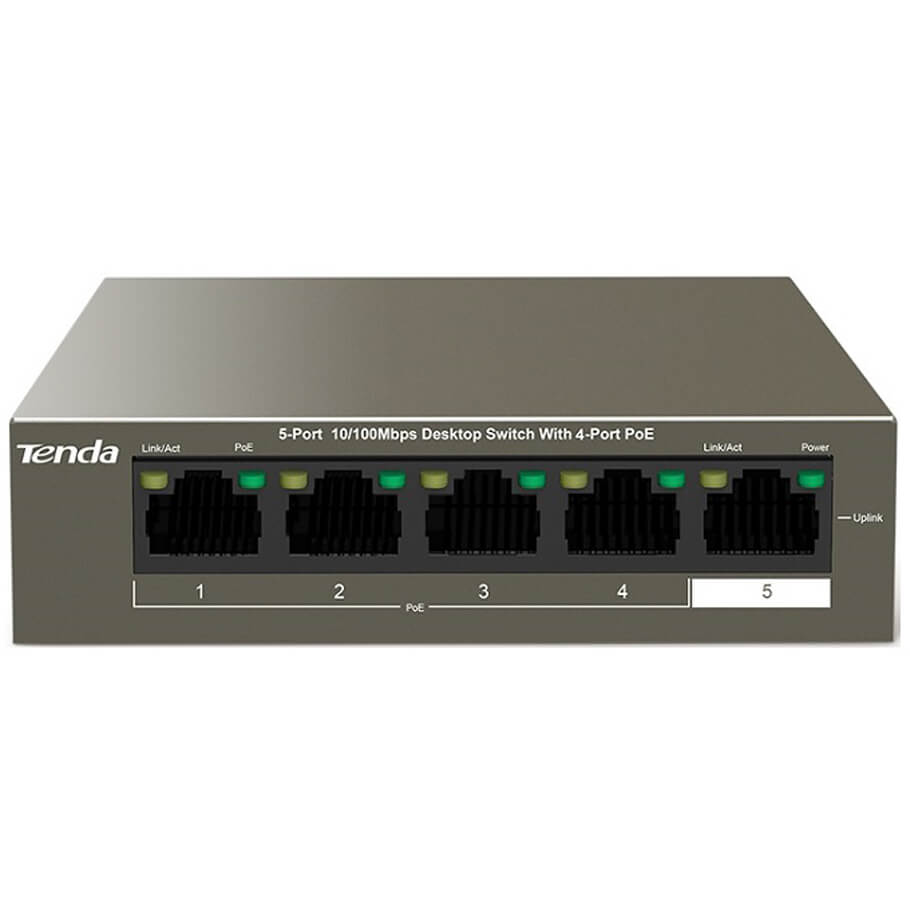

4-Port 10/100Mbps PoE Desktop Switch TENDA TEF1105P-4-63W
- 4 cổng PoE + 1 cổng Link
- Hỗ trợ cung cấp nguồn cho cổng PoE lên 48V/63W.
- Chuẩn giao thức: IEEE 802.3, IEEE 802.3, IEEE 802.3, IEEE 802.3a, IEEE 802.3at
- Công suất chuyển đổi: 1Gb
- Tương thích với camera PoE J-Tech
Đặc tính kỹ thuật
| Model | TEF1105P-4-63W |
| Hardware | |
| Network standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| LED Indicator | 5* Link/Ack LED indicators 1 * Power LED indicator |
| Interfaces | 4*10/100 Base-TX Ethernet Ports (Data/Power) 1*10/100 Base-TX Ethernet Port (Data) |
| Transmission media | Recommended: CAT5/5e UTP or better |
| Dimension | 100 x 100 x 26 mm |
| Level of protection | Lightning protection for ports: 6kV Lightning protection for power: 6kV ESD: Air discharge: ±10kV Contact discharge: ±8kV |
| Forwarding mode | Store-and-forward |
| Switch capacity | 1Gbps |
| Packet forwarding rate | 0.74Mpps |
| Buffer | 448K |
| MAC address table | 1K |
| PoE budget | Single port: AF: 15.4W, AT: 30W Whole device: 58W |
| Input voltage | 100－240V AC 50/60Hz 51V /1.25A DC (Power Adapter)） |
| Mounting | Desktop mounting: support Wall mounting: support Rack mounting: non-support |
| Environment | Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Software | |
| Funtions | Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other. Extend Mode: If the extend mode is enabled, the transmission distance of both power and data will extend up to 250m(10Mbps), this funcation can replace the extender and parts of the Fiber. It will extend the distance of the whole system and save the cost of the project. |
- Bảo hành: 36 tháng.
