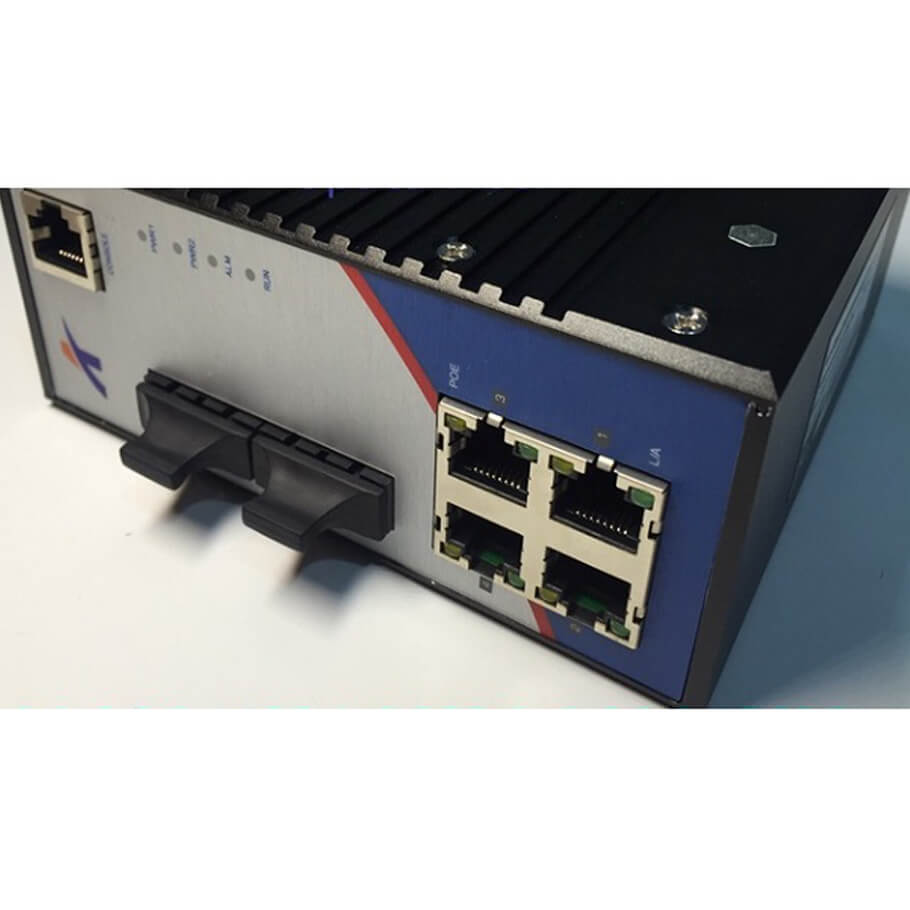

6-port Industrial DIN-Rail PoE Switch WINTOP YT-RS205-2F4T-AT
- Support 4 × 10/100Base-T(X) P.S.E.ports + 2 × 100Base-FX (Single-mode, dual fiber, 20Km, SC) ports, DIN Rail, DC46-75V.
- The electrical port supports10/100Mbps adaptive, both support MDI/MDIX.
- Applicable voltage range 12~75V DC.
- The electrical port supportsIEEE802.3af and IEEE802.3at standard POE power supply.
- Has excellent lightning protection, anti-static and anti-electromagnetic interference capabilities.
- Suitable forworking environment of -40℃~85℃.
Technical parameters
| Interface | Optical port: 100Mbps (interface type: SC, SFP optional) Electrical port: 10/100Mbps adaptive, Full/Half duplex mode, support MDI/MDI-X. Transmission distance is 0-100m. LED indicator: PWR1, PWR2, L/A, SPD, POE |
| Switch properties | Backplane bandwidth: 1.2Gbps Message buffer size: 1Mb MAC address table:8K Jumbo frame: 10K Bytes |
| Power requirement | Input voltage: redundant dual DC (DC12~75V) wide voltage current input, reverse connection protection Input current: max 2A |
| Physical properties | Shell: metal, IP40 protection Size: 135x126x44mm Weight: 650g Installation method: card rail installation |
| Working environment | Working temperature: -40 ~ 85°C (-40 ~ 185°F) Storage temperature: -40 ~ 85°C (-40 ~ 185°F) Ambient relative humidity: 5 ~ 95% (non-condensing) |
| Industry standards and Certification | Electromagnetic Interference (EMI): FCC Part 15/CISPR22 (EN55022): Class A Electromagnetic susceptibility (EMS): IEC61000-4-2 (ESD) Level 4, IEC 61000-4-3 (RS) Level 3, IEC 61000-4-4 (EFT) Level 4, IEC 61000-4-5 (Surge) Level 4, IEC 61000- 4-6 (CS) Level 3 Anti-vibration: IEC60068-2-6 Shock resistance: IEC60068-2-27 Free fall: IEC60068-2-32 Note: Please check the latest certification status on the official website of Yuantuo. MTBF (Mean Time Between Failure) Time: 500000h |
- Bảo hành: 12 tháng.
