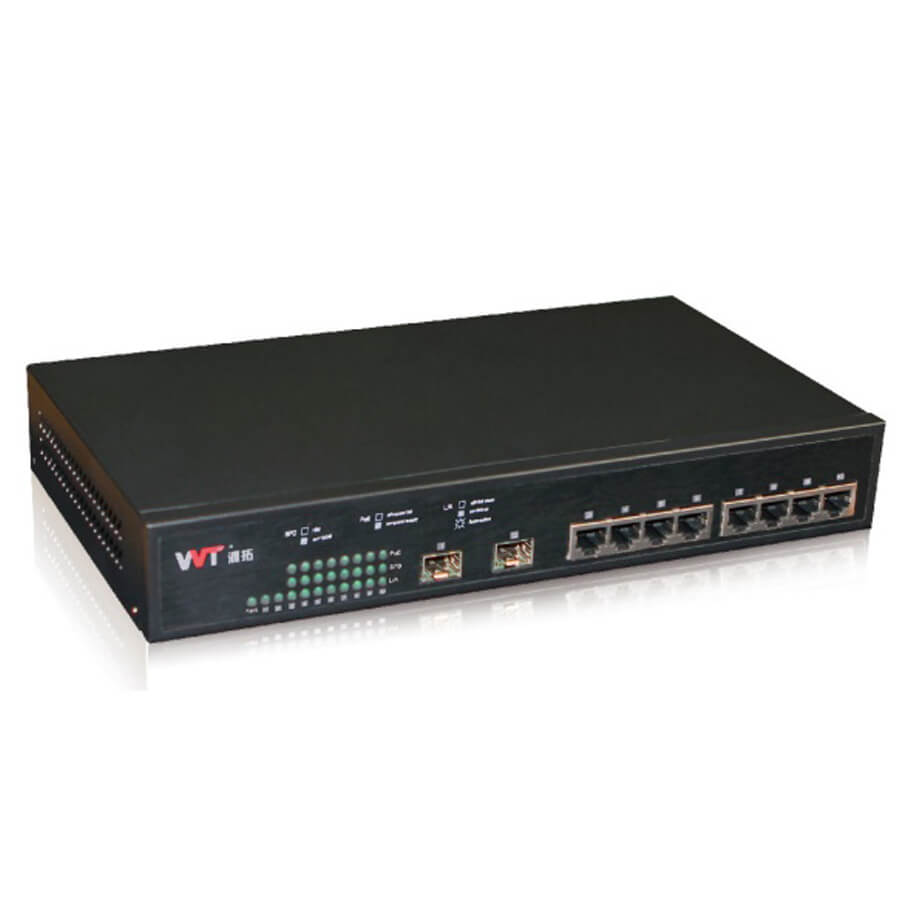

8-port 10/100/1000Base-T(X) + 2-port SFP Switch WINTOP YT-RS2010-2GF8GT

8-port 10/100/1000Base-T(X) + 2-port SFP Switch WINTOP YT-RS2010-2GF8GT

- 8 x 10/100/1000Base-T(X) + 2 x 1000BaseFX

- Support auto-negotiation and auto-MDI/MDI-X

- No fan, metal shell, internal power, 100~240VAC

- All port lighting protections (6KV)

- Working temperature: -20°C ~ 60°C

Specifications

Switch Property

- Switching bandwidth: 20Gbps

- Packet buffer size: 3MB

- Mac table size: 8K

- Jumbo frames: 9.6 Kbytes

Interfaces

- Fiber ports: 1000Mbps

- RJ45 port: 10/100/1000Mbps, Full/Half duplex, MDI/MDI-X

- LED Indicator: PWR, Link/ACT, SPD

Power requirement

- Input voltage: 100~240VAC

- Input current: Max. 0.3A

Physical

- Housing: Metal, IP30 Protection

- Dimensions: 290 x 165 x 40 mm

- Weight: 1200g

- Installation: Desk/Wall mounting

Environment

- Operating temperature: -20°C ~ 60°C

- Storage temperature: -20°C ~ 60°C

- Relative humidity: 5 ~ 95% (non-condensing)

- Bảo hành: 12 tháng.
