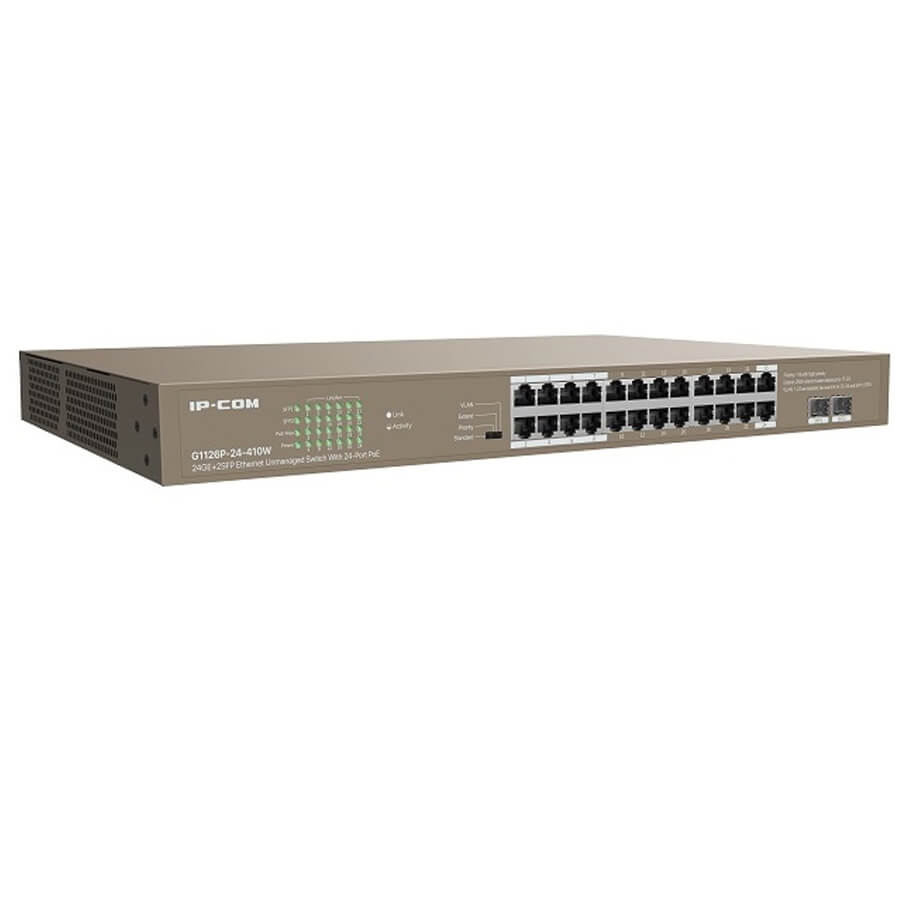

24GE+2SFP Ethernet Unmanaged PoE Switch IP-COM G1126P-24-410W
- Tuân thủ các tiêu chuẩn IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x và IEEE802.3af/at.
- 24 cổng RJ45 100/1000 Mbps Base-T cho truyền dữ liệu và cung cấp nguồn.
- 2 cổng SFP 1000 Mbps Base-X.
- Bảng địa chỉ MAC với dung lượng 8K và khả năng tự động học địa chỉ MAC.
- Hỗ trợ điều khiển luồng full-duplex theo chuẩn IEEE 802.3x và điều khiển lưu lượng half-duplex bằng áp lực ngược (backpressure).
- Băng thông vỏ (backplane) 48Gbps.
- Công suất tiêu thụ tối đa của một cổng: 30W.
- Công suất tiêu thụ tối đa của toàn bộ switch: 410W.
- 4 chế độ: tiêu chuẩn, ưu tiên, mở rộng và VLAN.
- Có thể gắn rack.
Thông số kỹ thuật
| Model | G1126P-24-410W |
| Interfaces | 24 * 100/1000 Mbps Base-T RJ45 ports (Data/Power) 2* 1000 Mbps Base-X SFP port |
| Lightning protection | ≥6KV |
| Forwarding mode | Store-and-forward |
| Switching capability | 48 Gbps |
| Packet forwarding rate | 35.7 Mpps |
| Buffer | 2M |
| MAC address table | 8K |
| PoE supply | Ports 1-24 support standard IEEE802.3af/at 30W output per PoE port 370W output of the total PoE Power |
| Power consumption | 410W output the whole device |
| Input voltage | AC: 100-240V~50/60Hz |
| Dimensions | 440*284*44mm |
| Four Modes | Standard: Default mode of the switch. In this mode, it works as an unmanaged switch;all ports can communicate with each other separately. |
| Priority: In this mode, port 23,24,SFP1 and SFP2 serve as uplink ports, ports 1 ‒ 8 serve as high priority port. All ports can communicate with each other separately. | |
| Extend: In this mode, data rate of ports 17 - 22 reduces to 10 Mbps, the maximum transmission distance can be 250 meters, and all ports can communicate with each other. | |
| VLAN: In this mode, ports 1 - 22 of the switch can communicate with port 23,24, SFP1, SFP2 separately, but cannot communicate with each other. You can enable this mode to reduce broadcast storm and isolate DHCP broadcast. | |
| Operating environment | Operating Temperature: 0℃~45℃ (32℉~113℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
- Bảo hành: 36 tháng.
