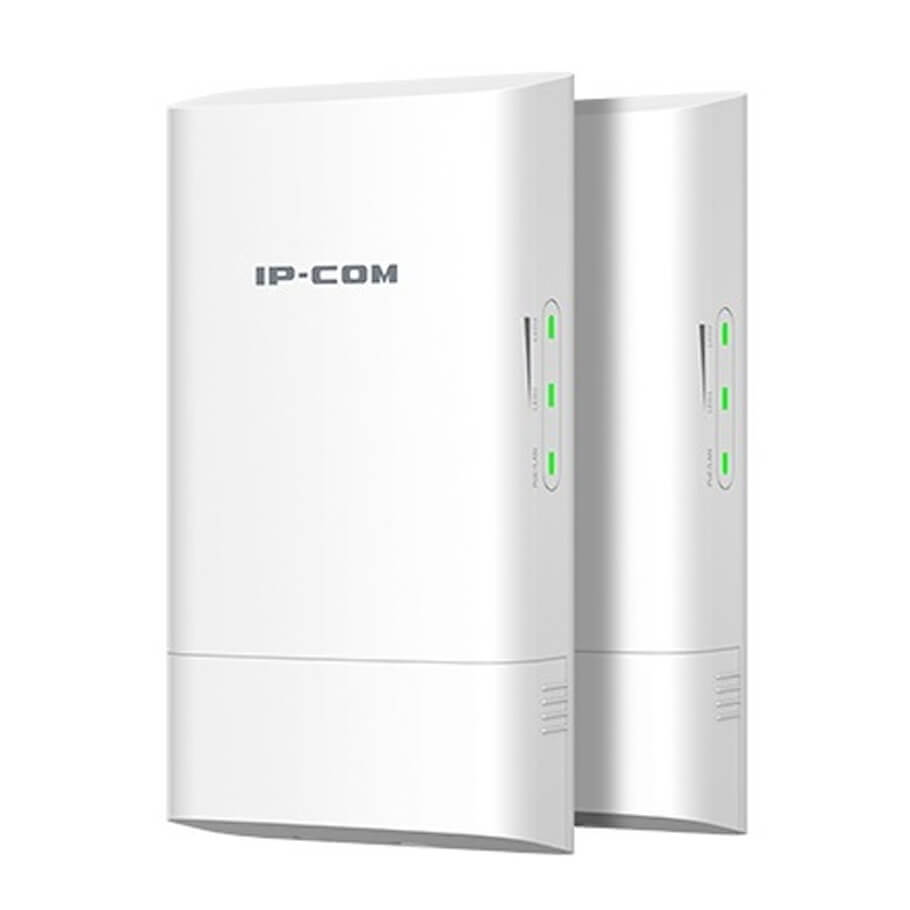

5GHz 9dBi 867Mbps Outdoor CPE IP-COM CPE5
- Tần số 5GHz, chuẩn Wi-Fi 11AC, tốc độ 867Mbps
- Ăng-ten định hướng 9dBi
- Một cổng Ethernet tốc độ cao
- Vỏ ngoài chống nước đạt tiêu chuẩn IP65
- Hỗ trợ nguồn 12V-1A DC/ PoE thụ động 12V-1A
Thông số kỹ thuật
| Model | CPE5 |
| Dimensions | 132*72*46.3mm |
| Deployment | Pole/Wall Mount |
| Application Scenarios | PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance |
| Hardware Features | |
| Frequency Range | 5GHz |
| Compliant Standards | IEEE 802.11a/n/ac |
| Maximum Wireless Rate | 867Mbps |
| Interfaces | 1*10/100Mbps LAN Port |
| Antennas Gain | 9dBi |
| Antenna Beamwidth | Horizontal: 30°, Vertical: 30°, Elevation: 30° |
| Reset Button | 1 |
| Power Consumption | 4.7W |
| Waterproof Level | IP65 |
| LED indicator | PoE/LAN,LED1,LED2 |
| Power Method | 12V 1A Passive PoE |
| 12V 1A DC | |
| Passive PoE | Passive power over ethernet via PoE/LAN (+4,5pins; -7,8pins ) up to 60 meters Voltage range: 9-13V DC |
| Software Features | |
| Operating mode | AP/Station |
| Enable/Disable Wireless Radio | Support |
| SSID Hidden | Support |
| Wireless Client isolation | Support |
| Channel Bandwidth | 20/40/80MHz |
| Client Limitation For SSID | Support |
| Wireless Access Control | Support |
| Transmission Power | Adjustable power by 1dBm |
| WMM Capable | Support |
| APSD Capable | Support |
| Wireless Security | 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK |
| Transparent Bridge | Support |
| VPN Pass-Through | PPTP, L2TP |
| Schedule Reboot | Support |
| Page Timeout | Support |
| Ping Watchdog | Support |
| Time&Date Setting | Support |
| Firmware upgrade | Support |
| Backup/Restore Configuration | Support |
| Username Managerment | Support |
| System Log | Support |
| Managed By Controller | PC Software -- CPE Controller |
| Others | |
| Operating Temperature | -30℃ ~ 60℃ |
| Storage Temperature | -40℃ ~ 70℃ |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 10%~90% non-condensing |
- Bảo hành: 36 tháng.
