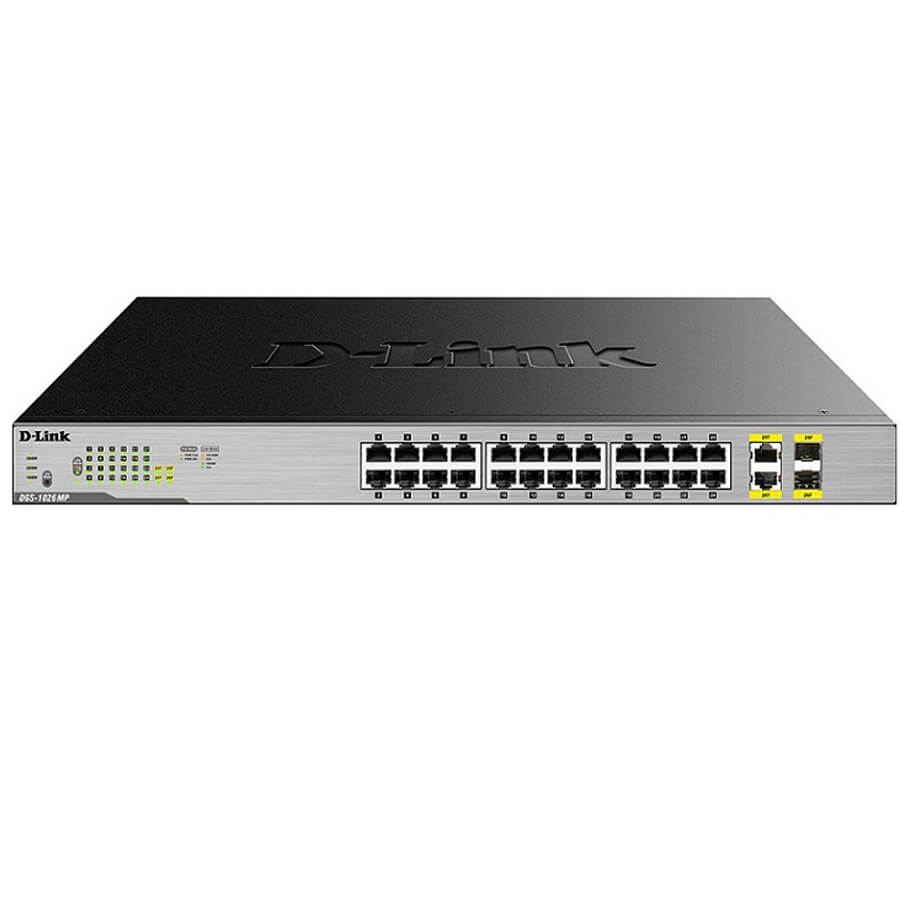

24-Port Gigabit Max PoE Switch D-Link DGS-1026MP
Versatile Connectivity
- 24 10/100/1000 Mbps PoE ports
- 2 Gigabit combo uplink ports
Reliability
- IEEE 802.3x Flow Control
- Store-and-forward switching
Easy Setup
- Plug-and-play installation
- Auto MDI/MDI-X crossover on all ports
Green Features
- IEEE 802.3az Energy Efficient Ethernet
- RoHS-compliant
High PoE Power Budget
- 370W PoE power budget
- Compliant with IEEE 802.3af/at
- PoE usage indicator LEDs
Specifications
| Model | DGS-1026MP |
| General | |
| Number of Ports | 24 x 10/100/1000 Mbps ports 2 x 10/100/1000BASE-T/SFP combo ports |
| Standards | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3z IEEE 802.3x Flow Control IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Switching Capacity | 52 Gbps switching fabric |
| 64 Byte Max. Forwarding Rate | 38.69 Mpps |
| Media Interface Exchange | Auto MDI/MDI-X |
| Transmission Method | Store-and-forward |
| MAC Address Table | 8K (8192) entries per device |
| Packet Buffer Memory | 512 KB per device |
| PoE Standards | IEEE 802.3at, IEEE 802.3af |
| PoE Ports | Ports 1 to 24 |
| PoE Budget | 370 W |
| Diagnostic LEDs | |
| Per Unit | Power PoE Power Budget |
| Per Port | Activity/Link Speed |
| Per PoE Port | Power Fail Power OK |
| Physical | |
| Fan | 2 x Smart fans |
| Weight | 3.1kg |
| Dimensions | 440 x 250.4 x 44 mm |
| Power Input | AC Input: 100 to 240 V AC, 50/60 Hz |
| Temperature | Operating: 0 to 50 ˚C (32 to 122 ˚F) Storage: -40 to 70 ˚C (-40 to 158 ˚F) |
| Humidity | Operating: 0% to 90% RH non-condensing Storage: 5% to 90% RH non-condensing |
- Bảo hành: 36 tháng.
