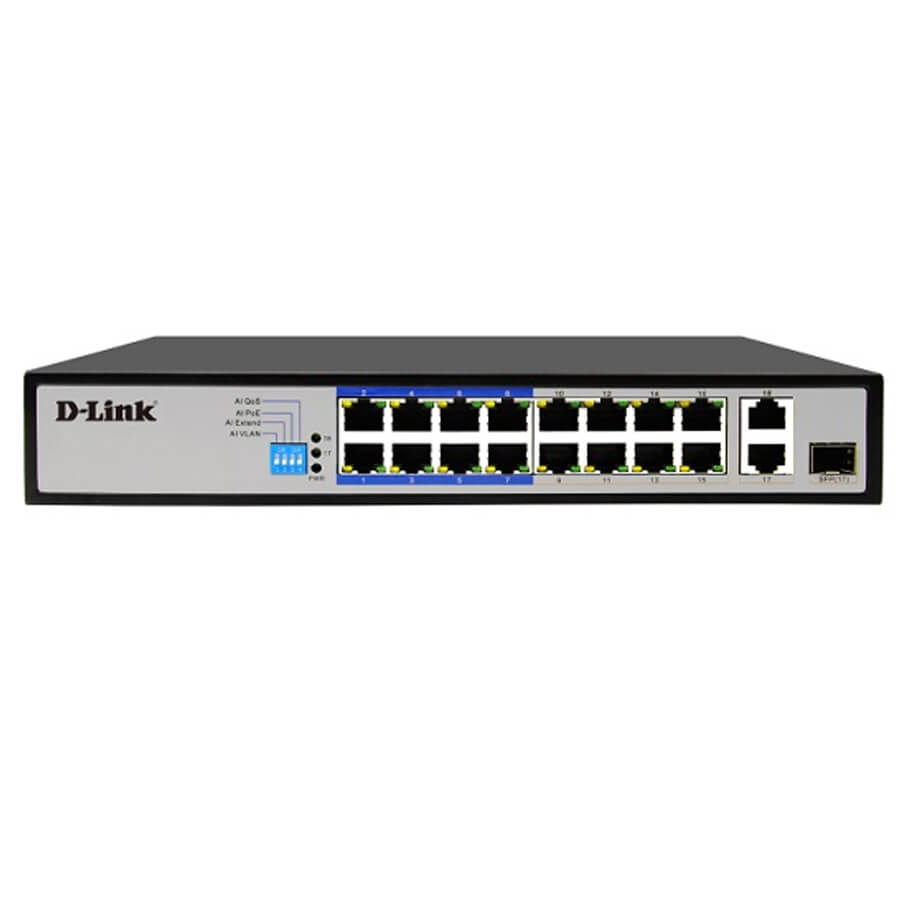

16-Port 10/100 PoE Switch D-Link DES-F1018P-E
- The D-Link DES-F1018P-E 18 Port Switch with 16 10/100Mbps and 2 Gigabit Ports with 1 Combo SFP port enables you to connect Power over Ethernet (PoE) devices such as wireless access points (APs), IP cameras, and IP phones to the network. The DES-F1018P-E can also connect other network devices like computers, printers, Network Attached Storage (NAS) to fit into any type of network application. The Combo SFP/RJ45 port gives you the flexibility of using this uplink port either with copper or fibre optic cable.
Features
High-Speed Networking
+ 10/100 Mbps Ethernet ports
+ Full/half-duplex for Ethernet/Fast Ethernet
+ 2 Gigabit Uplink RJ45 ports with 1 SFP Combo port
Functions
+ VLAN
+ EXTEND
+ PoE
+ QoS
Easy Setup
+ Plug-and-play installation
+ Auto MDI/MDI-X crossover on all ports
PoE Functionality
+ Sixteen PoE ports
+ IEEE 802.3af/at compliant
+ 150W total power budget
+ Up to 30W power output per PoE port
Technical Specifications
| General | |
| Size | Desktop (with Mounting Kit) |
| Interfaces | 16 10/100 BASE-T ports 2 x Gigabit RJ45 with 1 Combo SFP/RJ45 |
| Standards | • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) • ANSI/IEEE 802.3 NWay auto-negotiation • IEEE 802.3x ow contro |
| Media Interface Exchange | • Auto MDI/MDI-X adjustment on all ports |
| Lighting Protection | • 6KV |
| Performance | |
| Switching Fabric | • 7.2 Gbps |
| Transmission Method | • Adopt Store-and-forward |
| Data Transfer Rates | Gigabit Ethernet: 100 Mbps Ethernet: 10 Mbps |
| Packet Filtering/Forwarding Rates | 10M port maximum 14800pps 100M port maximum 148800pps 1000M port maximum 1488000pps |
| PoE | |
| PoE Standards | IEEE 802.3af IEEE 802.3at |
| PoE-Capable Ports | Port 1 - 16 (Port 1 - 8 PoE can support up to 250m @ 10Mbps with Extend enabled) |
| Power Budget | 150W (36 W max. per PoE port) |
| Physical | |
| Weight | 2.5 kg |
| Dimensions | 285 x 180 x 44 mm |
| Power | External power adapter: 150W |
| Temperature | Operating: 0 to 40 ˚C (32 to 104 ˚F) |
| Humidity | Operating: 0% to 95% RH non-condensing Storage: 0% to 95% RH non-condensing |
- Bảo hành: 36 tháng.
