0916 287 068 16-Port Gigabit Desktop Switch D-Link DGS-1016S
Trang Chủ >>
Thiết bị mạng >> Thiết bị mạng D-Link >> 16-Port Gigabit Desktop Switch D-Link DGS-1016S
Mã số:04052939

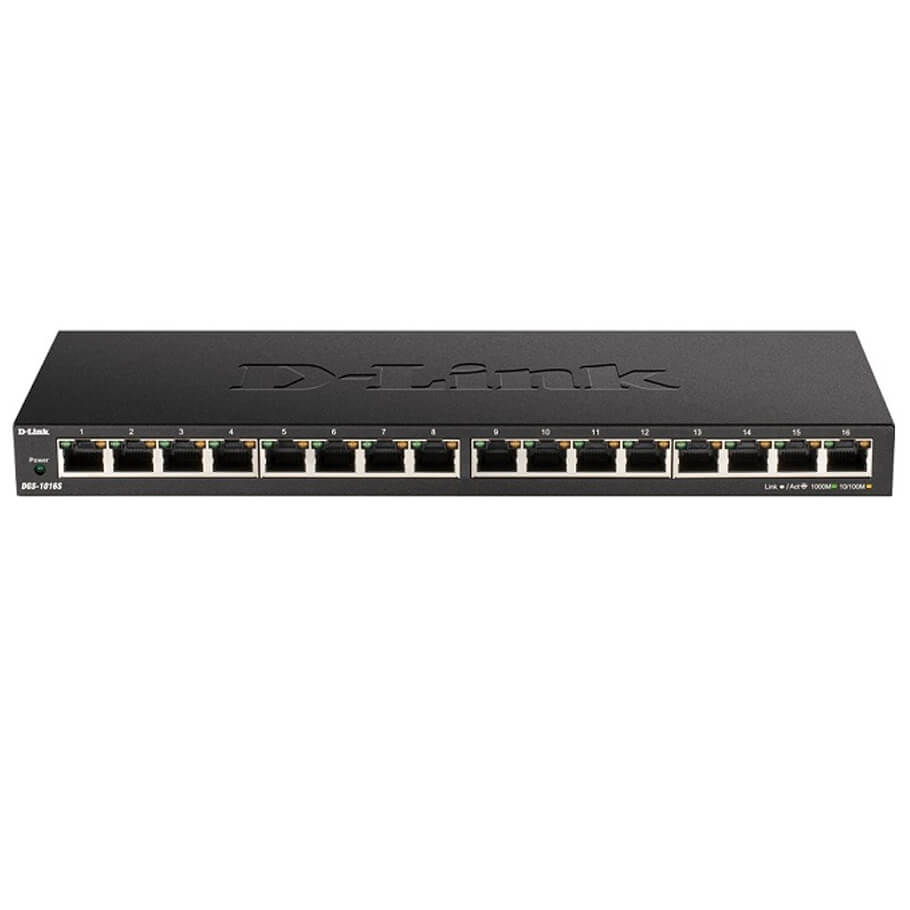

16-Port Gigabit Desktop Switch D-Link DGS-1016S
- 16 Gigabit ports for high-speed wired connections
- Plug-and-play for effortless installation
- IEEE 802.3az-compliant to reduce power consumption
- Auto power reduction when port has little or no traffic
- Cable-length detection enhances energy conservation
- Energy-efficient design reduces heat generated and allows silent operation
- IEEE 802.1p QoS traffic prioritization to optimize performance
Specifications
| Model | DGS-1016S |
| General | |
| Standards | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3x Flow Control IEEE 802.1p QoS IEEE 802.3az Energy-Efficient Ethernet (EEE) |
| Number of Ports | 16 x 10/100/1000 Mbps LAN ports |
| Performance | |
| Switching Capacity | 32 Gbps |
| Advanced Features | Auto-MDI/MDIX crossover for all ports Secure store-and-forward switching scheme Full/half-duplex for Ethernet/Fast Ethernet speeds Supports 9,216 byte jumbo frames Back pressure at half-duplex operation Wire-speed reception and transmission Auto-negotiation for each port Quality of Service (8 queues, strict mode) |
| Transmission Method | Store-and-forward |
| MAC Address Table | 8K entries per device |
| Packet Filtering/Forwarding Rates | Ethernet: 14,880 pps per port Fast Ethernet: 148,800 pps per port Gigabit Ethernet: 1,488,000 pps per port |
| RAM Buffer | 512 KB per device |
| Physical | |
| LED Indicators | Per port: Link/Activity/Speed Per device: Power |
| Media Interface Exchange | Auto-MDI/MDIX adjustment for all ports |
| Dimensions (W x H x D) | 280 x 110 x 25 mm |
| Weight | 0.77kg |
| Power Input | 12 V / 1 A |
| Power Consumption | Standby: 3.37 W Maximum: 8.89 W |
| Temperature | Operating: 0 to 40 °C Storage: -40 to 70 °C |
| Humidity | Operating: 10% to 90% non-condensing Storage: 5% to 95% non-condensing |
- Bảo hành: 36 tháng.
Giá: 1.308.000 VND
(Đã bao gồm VAT)
