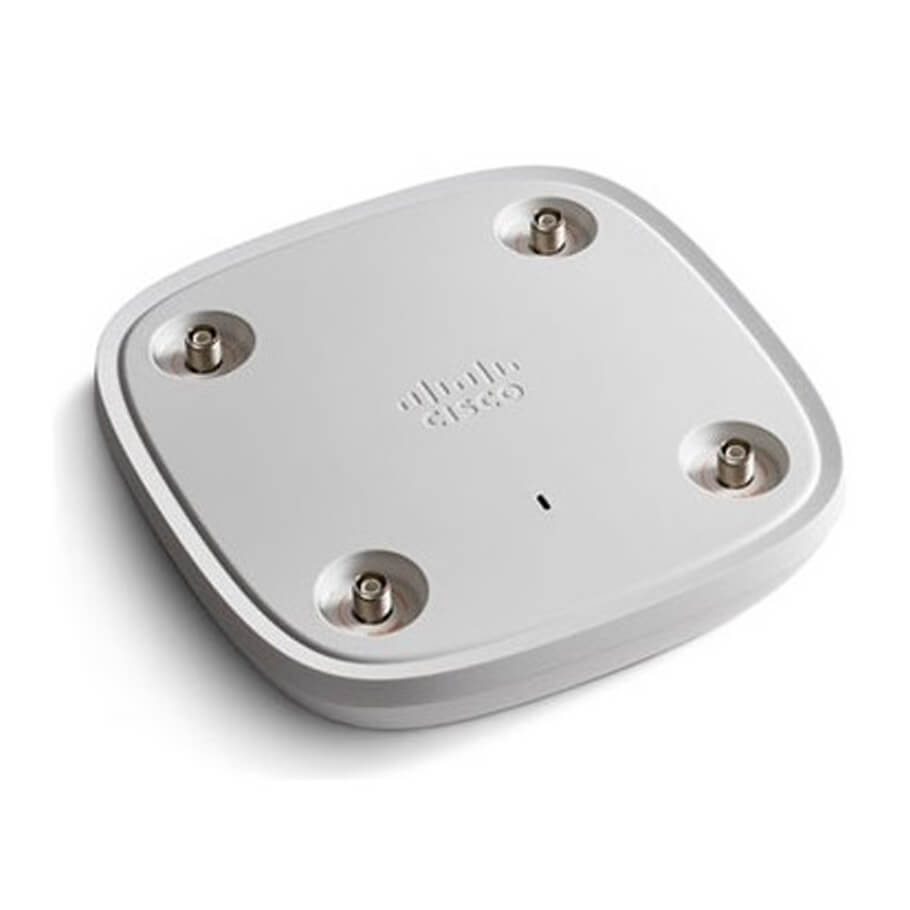

Wireless Access Point CISCO C9120AXE-S
- Cisco Catalyst 9120AXE Access Point: Indoor, challenging environments, with external antennas.
- Interfaces: 1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz (Auto-MDIX support); Management console port (RJ-45); USB 2.0@4.5W.
- System memory: 2048 MB DRAM; 1024 MB flash.
- Dimensions (W x L x H): 21.6 x 21.6 x 5.1 cm.
- Weight: 1.36kg.
Specifications
| Software | - Cisco Unified Wireless Network Software Release 8.9.x or later - Cisco IOS XE Software Release 16.11 with AP Device Pack, or later |
| Supported wireless LAN controllers | - Cisco Catalyst 9800 Series Wireless Controllers - Cisco 3500, 5520, and 8540 Series Wireless Controllers and Cisco Virtual Wireless Controller |
| 802.11n version 2.0 (and related) capabilities | - 4x4 MIMO with four spatial streams - Maximal Ratio Combining (MRC) - 802.11n and 802.11a/g beamforming - 20- and 40-MHz channels - PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) - Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) - 802.11 Dynamic Frequency Selection (DFS) - Cyclic Shift Diversity (CSD) support |
| 802.11ac | - 4x4 downlink MU-MIMO with four spatial streams - MRC - 802.11ac beamforming - 20-, 40-, 80-, and 160-MHz channels - PHY data rates up to 3.47 Gbps (160 MHz with 5 GHz) - Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) - 802.11 DFS - CSD support |
| 802.11ax | - 4x4 downlink MU-MIMO with four spatial streams - Uplink/downlink OFDMA - TWT - BSS coloring - MRC - 802.11ax beamforming - 20-, 40-, 80-, and 160-MHz channels - PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz) - Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) - 802.11 DFS - CSD support |
| Integrated antenna | Flexible radio (either on 2.4 GHz or on 5 GHz) - 2.4 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth - 5 GHz, peak gain 5 dBi, internal antenna, omnidirectional in azimuth Dedicated 5-GHz radio - 5 GHz, peak gain 5 dBi, internal antenna, omnidirectional in azimuth |
| External antenna (sold separately) | - Cisco Catalyst 9120AXE Access Points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) - Cisco Catalyst 9120AXP Access Points) are certified for use with antenna gains up to 13 dBi (2.4 GHz and 5 GHz) with the AIR-ANT2513P4M-N= antenna - Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios - Supports Self-Identifiable Antennas (SIA) on one RP-TNC port |
| Smart antenna connector | - Available on the 9120AXE and 9120AXP only - Compact multi-RF connector with DART interface - Requires the AIR-CAB002-DART-R= 2 ft smart antenna connector when used with antennas with RP-TNC connector - Required when running the flexible radio as either a second 5-GHz serving radio or a Wireless Security Monitoring radio |
| Interfaces | - 1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz + Auto-MDIX support - Management console port (RJ-45) - USB 2.0 @ 4.5W |
| Indicators | Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
| Dimensions (W x L x H) | 21.6 x 21.6 x 5.1 cm |
| Weight | 1.36kg |
| Input power requirements | - 802.3at Power over Ethernet Plus (PoE+), 802.3bt Cisco Universal PoE (Cisco UPOE+, Cisco UPOE) - 802.3af PoE - Cisco power injector, AIR-PWRINJ6= (Note: This injector supports only 802.3at) - Cisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af) |
| Environmental | - Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) - Nonoperating (storage) altitude test: 25˚C, 15,000 ft. - Operating temperature: -4° to 122°F (-20° to 50°C) - Operating humidity: 10% to 90% (noncondensing) - Operating altitude test: 40˚C, 9843 ft. |
| System memory | - 2048 MB DRAM - 1024 MB flash |
- Bảo hành: 12 tháng.
