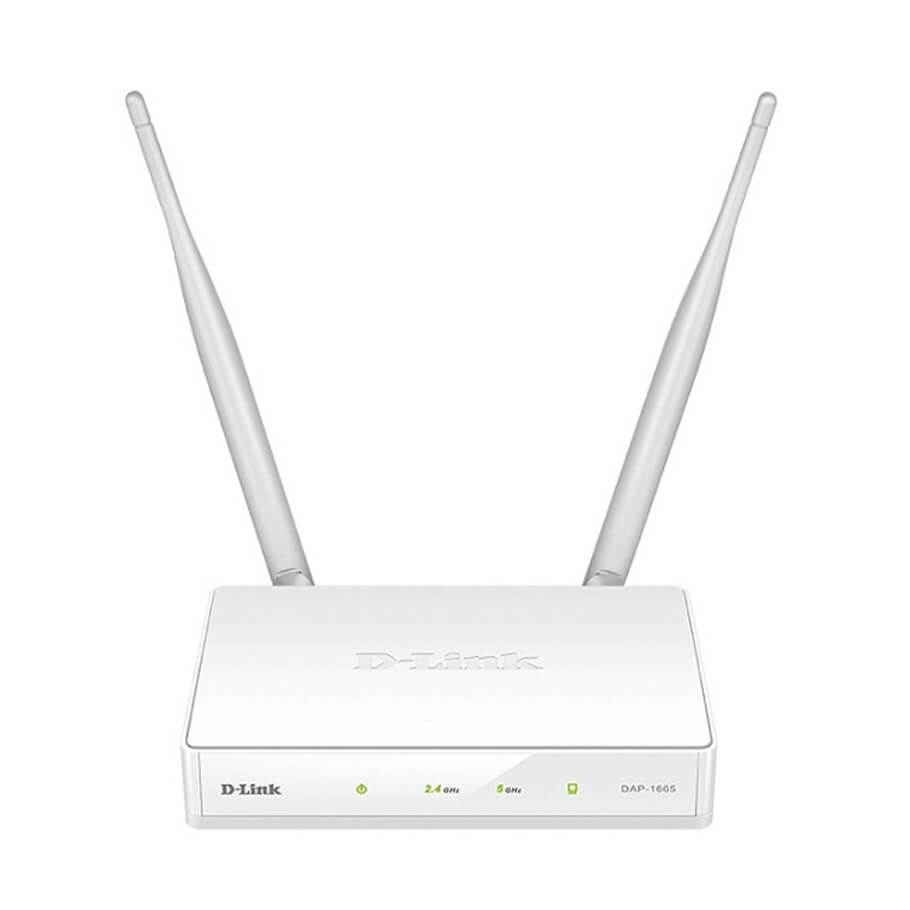

Wireless AC1200 Dual-Band Access Point D-Link DAP-1665
Wireless and Wired LAN
- Latest 802.11ac wireless technology with combined wireless speeds of up to 1200 Mbps.
- Backwards-compatible with 802.11n/g/b/a clients.
- Two external antennas increase range.
- Gigabit LAN port for wired connections up to 1000 Mbps.
Operating Modes
- Access Point mode to add wireless to your existing network.
- Repeater mode extends the range of your existing wireless network to reach further throughout your home or office.
- Bridge mode lets you create a direct wireless link between two existing LANs
- Bridge mode with AP adds the functionality of a wireless access point to your bridged network
- Client mode delivers wireless connectivity to a LAN device such as a storage device, media server, or gaming console
Security
- WPA/WPA2 security encryption to protect your wireless traffic
- Quickly and easily add new wireless devices with Wi-Fi Protected Setup (WPS)
- Kensington lock port to protect against theft
Đặc tính kỹ thuật
|
Features |
|
|
Networking Standards |
IEEE 802.11ac |
|
IEEE 802.11n |
|
|
IEEE 802.11g |
|
|
IEEE 802.11b |
|
|
IEEE 802.11a |
|
|
802.3/802.3u |
|
|
Interface |
IEEE 802.11ac wireless LAN |
|
IEEE 802.11n/g/b/a wireless LAN |
|
|
10/100/1000BASE-TX wired LAN |
|
|
Operating Modes |
Access Point (AP) |
|
Bridge |
|
|
Bridge with AP |
|
|
Wireless Client |
|
|
Repeater |
|
|
Operating Frequency |
5 GHz Band: 5.15 GHz to 5.35 GHz; 5.47 GHz to 5.85 GHz |
|
2.4 GHz Band: 2.4 - 2.4835 GHz |
|
|
Antenna |
2 x 5 dBi external antennas |
|
LEDs |
Power |
|
2.4 GHz wireless |
|
|
5 GHz wireless |
|
|
LAN |
|
|
Advanced Features |
|
|
Security |
64/128-bit WEP |
|
WPA-PSK/WPA2-PSK |
|
|
Wi-Fi Protected Setup (WPS) |
|
|
MAC address filtering |
|
|
Kensington security slot |
|
|
SSID broadcast disable |
|
|
Device Management |
Web-based interface minimum requirements: Internet Explorer 7, Firefox 12.0, Chrome 20.0, or Safari 4.0 |
|
Physical |
|
|
Temperature |
Operating: 0 to 40°C (32 to 104°F) |
|
Storage: -20 to 65°C (-4 to 149°F) |
|
|
Humidity |
Operating: 10% to 90% non-condensing |
|
Storage: 5% to 95% non-condensing |
|
|
Certifications |
CE, FCC, TELEC, IC, Wi-Fi Certified, VCCI |
|
Power |
Input: 12 V/1 A |
|
Consumption: Maximum 5.18 W |
|
|
Dimensions |
147 x 108 x 27.8 mm |
|
Weight |
222g |
- Bảo hành: 24 tháng.
