0916 287 068 Wi-Fi Access Point Grandstream GWN7605

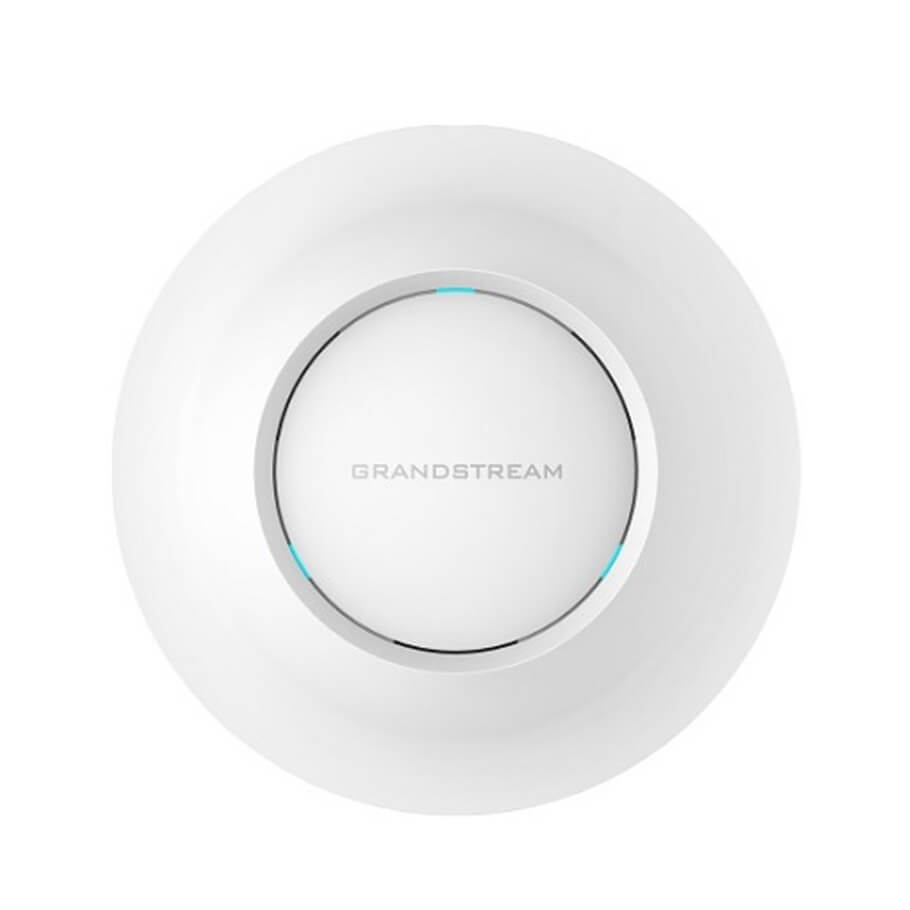

Wi-Fi Access Point Grandstream GWN7605
- The GWN7605 is an affordable 802.11ac Wave-2 Wi-Fi access point ideal for small to medium wireless network deployments with medium user density. It offers dual-band 2x2:2 MU-MIMO with beam-forming technology, supports up to 100+ concurrent client devices, and up to 165-meter coverage range.
- 1.27Gbps aggregate wireless throughput and 2xGigabit wireline ports.
- Dual-band 2x2:2 MU-MIMO with beamforming technology.
- Self power adaptation upon auto detection of PoE/PoE+.
- Supports 100+ concurrent Wi-Fi client devices.
- Up to 165-meter coverage range.
- Advanced QoS to ensure real-time performance of low-latency applications.
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device.
- Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premise-based software controller.
Đặc tính kỹ thuật
| Model | GWN7605 |
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac (Wave-2) |
| Antennas | 2 dual band internal antennas 2.4GHz, gain 3dBi 5 GHz, gain 4dBi |
| Wi-Fi Data Rates | IEEE 802.11ac: 6.5 Mbps to 867 Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps IEEE 802.11n: 6.5Mbps to 300Mbps; IEEE 802.11b: 1, 2, 5.5, 11 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Frequency Bands | 2.4 GHz Radio: 2412 – 2484 MHz 5 GHz Radio: 5180-5825 MHz |
| Channel Bandwidth | 2.4G: 20 and 40 MHz 5G: 20,40 and 80 MHz |
| Wi-Fi and System Security | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device |
| MIMO | 2x2:2 2.4GHz (MIMO) 2x2:2 5GHz (MU-MIMO) |
| Coverage Range | Up to 165 meters |
| Maximum TX Power | 2.4G:24dBm 5G:22dBm |
| Receiver Sensitivity | 2.4G 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7 5G 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9 |
| SSIDs | 8 SSIDs per radio |
| Concurrent Clients | 100+ |
| Network Interfaces | 2 x autosensing 10/100/1000 Base-T Ethernet Ports |
| Auxiliary Ports | 1 x Reset Pinhole, 1 x Kensington lock |
| Mounting | Indoor wall or ceiling mount, kits included |
| LEDs | 3 x tri-color LED for device tracking and status indication |
| Network Protocols | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
| QoS | 802.11e/WMM, VLAN, TOS |
| Network Management | Embedded controller can manage up to 50 local GWN APs GWN.Cloud offers a free cloud management platform for unlimited GWN APs GWN Manager offers premise-based software controller for up to 3,000 GWN Aps |
| Power and Green Energy Efficiency | PoE 802.3af/ 802.3at; Maximum Power Consumption:10.16W |
| Environmental | Operation: 0°C to 40°C Storage: -10°C to 60°C Humidity: 10% to 90% Non-condensing |
| Physical | Unit Dimension: 180.4mmx180.4mmx40.8mm; Unit Weight: 388.2g Entire Package Dimension: 228.5x220x79mm; Entire Package Weight: 719.3g |
| Package Content | GWN7605 802.11ac Wireless AP, Mounting Kits, Quick Start Guide |
| Compliance | FCC, CE, RCM, IC |
- Lưu ý: Giá bán không bao gồm nguồn PoE, vui lòng cộng thêm 340.000 đồng nếu lấy nguồn PoE.
- Sản phẩm chính hãng Grandstream của Mỹ.
- Sản xuất tại Trung Quốc.
- Bảo hành: 36 tháng.
