0916 287 068 Wallplate Access Point RUIJIE RG-RAP1200(F)
.jpg "Wallplate Access Point RUIJIE RG-RAP1200(F)")

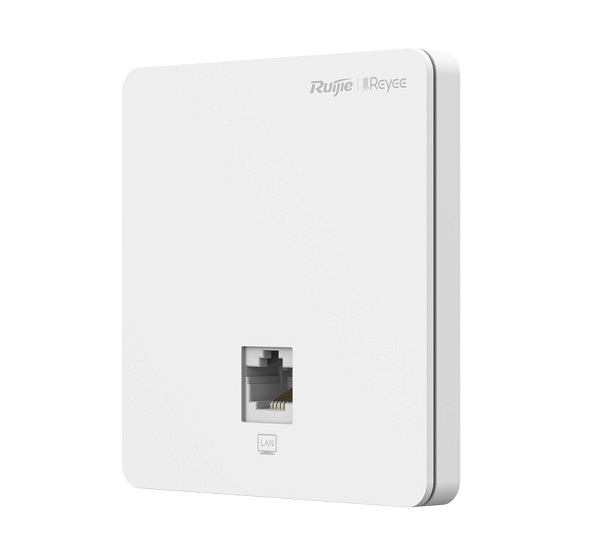

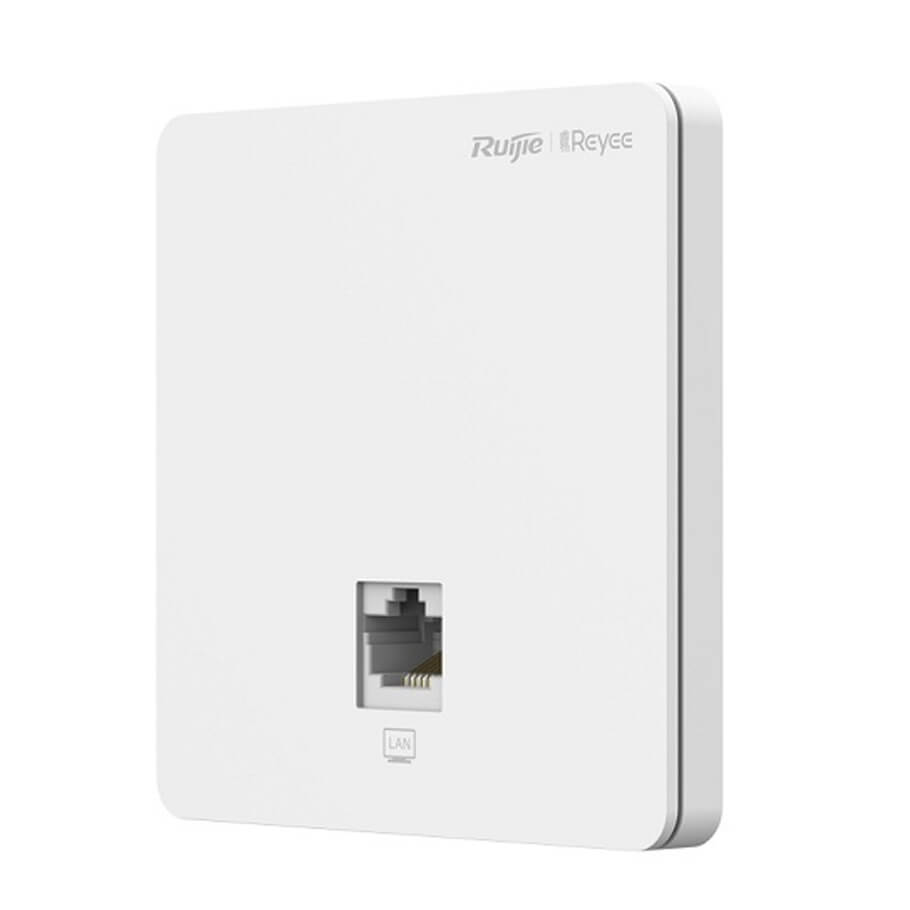

Wallplate Access Point RUIJIE RG-RAP1200(F)
- Dual Band Wallplate Access Point, Qualcomm.
- 867Mbps at 5GHz + 300Mbps at 2.4GHz.
- 1 FE LAN, 1 FE Uplink port.
- 4 Internal Antennas.
- 802.11ac Wave2 technology
- Auto-provisioning via Self-Organizing Network: Supports Ruijie’s self-developed smart networking feature, which breaks through the product limitations and realizes auto-discovery, auto-networking and auto-configuration between gateways, switches, and wireless APs without the need for controllers or Internet access.
- Lifetime free Ruijie Cloud management: Remote fault alarm, one-click optimizing and maintenance on Ruijie Cloud App.
- Seamless layer 3 roaming.
- Industrial Design: Robust casing, Provide better strength and safety for products.
Specifications
| Hardware | |
| Radio | Dual-stream dual-band |
| Protocol | Concurrent 802.11b/g/n/ac |
| Operating Bands | 802.11b/g/n: 2.4G ~ 2.4835GHz 802.11a/n/ac: 5G: 5.150~5.350GHz, 5.47~5.725, 5.725~5.850GHz |
| Antenna | PCB antenna |
| Spatial Streams | 2.4G: 2 Spatial Streams, 2x2 MIMO 5G: 2 Spatial Streams, 2x2 MIMO |
| Max Throughput | 2.4G: up to 400Mbps 5G: up to 866.7Mbps |
| Maximum Transmit Power | 20dBm (adjustable) |
| Adjustable Power | 1dBm |
| Dimensions | 86*86*29.3 |
| Weight | <0.25kg |
| Port | 1 10/100Mbps Ethernet port 1 10/100Mbps PoE Ethernet port |
| LED Indicator | Support |
| Power Supply | Support 802.3af power supply |
| Power Consumption | ＜8W |
| Environment | Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C |
| Installation | 86mm wall plate installation |
| IP Rating | IP41 |
| Software | |
| Operating Mode | AP mode and routing mode |
| WLAN | Maximum number of clients: 110 |
| Recommended number of clients: 24 (8 at 2.4GHz, 16 at 5GHz) | |
| Up to 8 SSIDs | |
| Support SSID hiding | |
| Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID | |
| SSID-based and radio-based STA limit | |
| Support Layer 2 user isolation | |
| Roaming | Support Layer 2 and Layer 3 roaming |
| Security | Support PSK authentication Support static blacklist and whitelist Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption |
| Routing | Support static IP address, DHCP, PPPoE Dial Up |
| Management and maintenance | Support unified networking of all network equipment Support local or remote management with Ruijie Cloud app Support local management with web Support remote management with Ruijie Cloud platform |
- Bảo hành: 3 năm.
