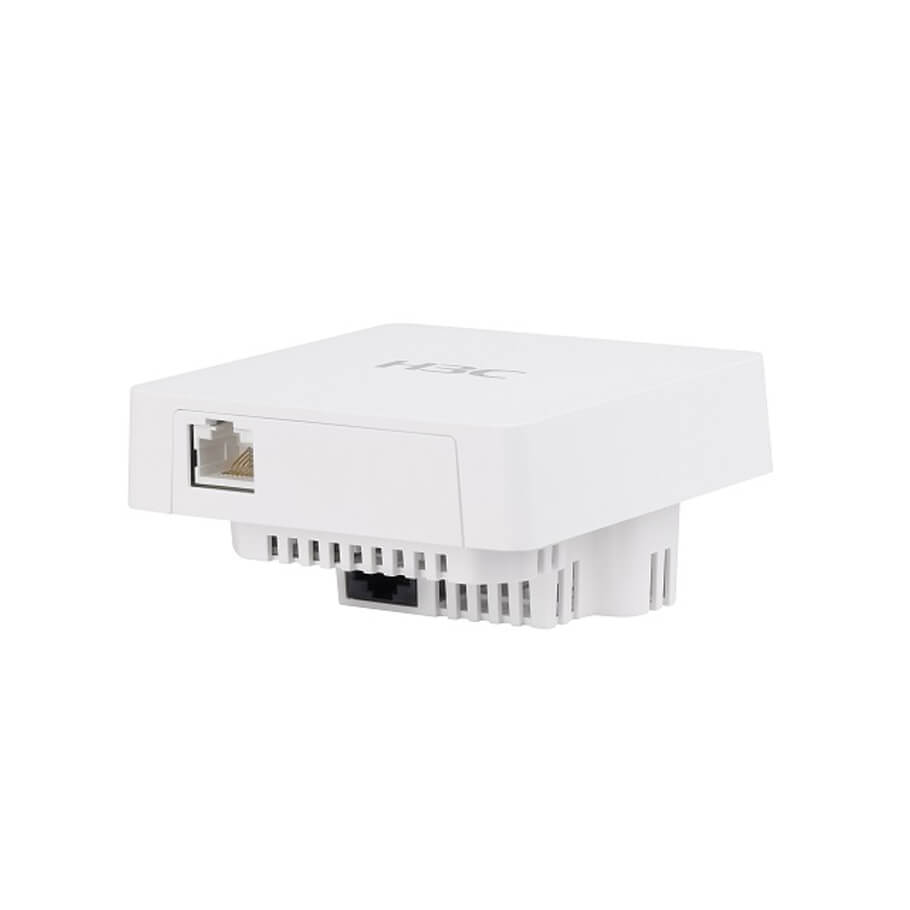

Wi-Fi 6 (802.11ax) Wall-Plate Wireless Access Point H3C WA6022H
- Tốc độ không dây: 1500Mbps (5Ghz: 1200Mbps + 2.4Ghz: 300Mbps).
- Fixed port:
+ UpLink: 10/100/1000M×1, RJ-45;
+ LAN: 10/100/1000M×1, RJ-45.
- Ăng ten: 4dBi @5GHz - 3dBi @2.4GHz.
- Nguồn PoE: 802.3at/af.
- Công suất tiêu thụ: ≤ 15W
- Kích thước (H x W x D): 45 × 86 × 86 mm.
Thông số kỹ thuật
| Dimensions (excluding antenna connectors and mounting accessories) | 45×86×86 mm (H x W x D) |
| Fixed port | UpLink: 10/100/1000M×1, RJ-45 LAN: 10/100/1000M×1, RJ-45 |
| PoE In | 802.3af |
| Local power supply | 54V DC |
| Console port | None |
| Built-in antenna | Internal Omni-directional antenna 3dBi antenna gain @2.4GHz 4dBi antenna gain @5GHz |
| Working frequencies | 802.11ax/ac/n/a: 5.725 GHz - 5.850 GHz; 5.47 GHz - 5.725 GHz; 5.15 GHz - 5.35 GHz 802.11ax/b/g/n: 2.4 GHz - 2.483 GHz |
| Modulation technology | OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps MIMO-OFDM(11n): MCS 0-15 MIMO-OFDM(11ac): MCS 0-9 MIMO-OFDM(11ax): MCS 0-11 |
| Modulation mode | 11b: DSS:CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps 11a/g: OFDM:64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps 11n: MIMO-OFDM:BPSK, QPSK, 16QAM, 64QAM 11ac/ac wave2: MIMO-OFDM:BPSK, QPSK, 16QAM, 64QAM, 256QAM 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM |
| Transmit power (combined power) | 20 dBm (Varies depending on local laws and regulations) |
| Adjustable power granularity | 1 dBm |
| Power consumption | ≤15W (include USB) |
| Reset/restoration to factory default | Supported |
| Operating temperature/storage temperature | -10ºC to +55ºC/-40ºC to +70ºC |
| Operating humidity/storage humidity | 5% - 95% (non-condensing) |
| Safety compliance | GB 4943, EN/IEC/UL 60950-1, EN/IEC/UL 62368-1 |
| EMC | EN 55024, EN 55032, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000- 4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4- 11, EN 60601-1-2, EN 301 489-1, EN 301 489-17 |
| Environment | GB/T 2423, GB/T 13543, GB 4208 |
| Radio frequency certification | FCC Part 15, EN 300 328, EN 301 893, and MIIT SRRC |
| MTBF | 2230121H |
- Bảo hành: 60 tháng.
