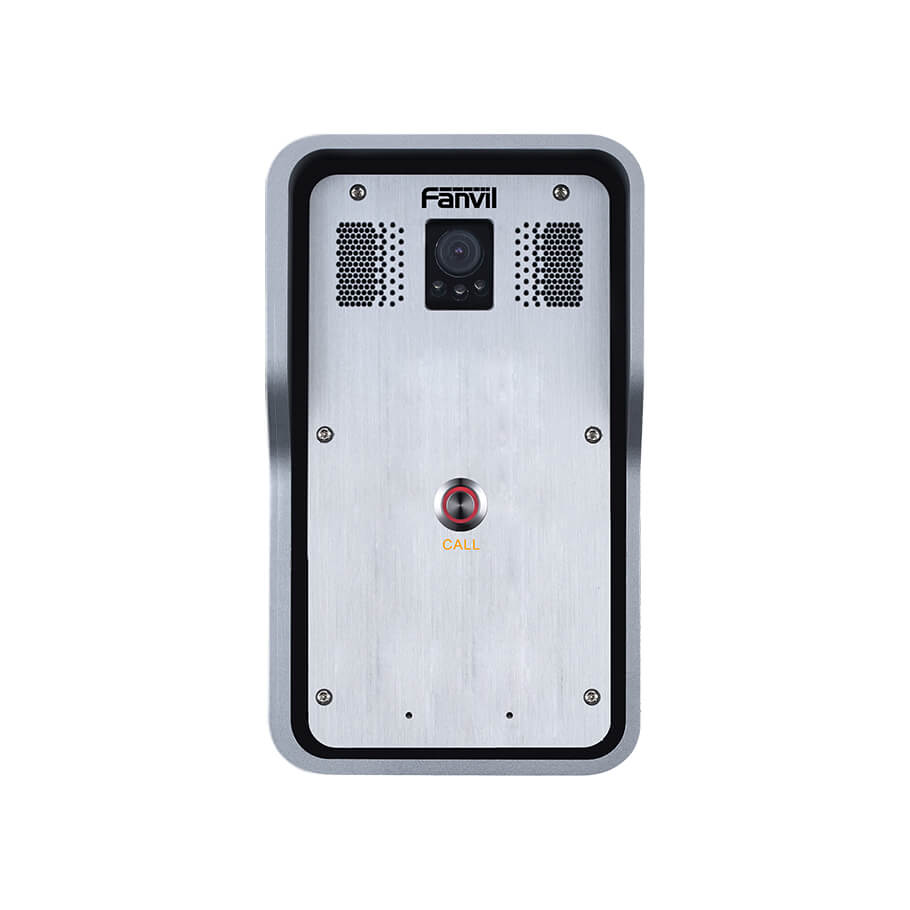

Video Intercom Fanvil I18S
Access control function
- Two SIP lines, support SIP 2.0 (RFC3261) and related RFC
- POE Enabled
- Full-duplex handsfree (HF)
- Default Auto Answer
- Support electric lock internal or external power supply options
- Support customized DSS keys
- Network Time Synchronization
- Action URL / Active URI remote control
Audio
- Narrowband speech codec: G.711a / u, G.723.1, G.726-32K, G.729AB
- Broadband speech codec: G.722
- Full Duplex Echo Cancellation (AEC) - 96ms tail-length
- DTMF: In-band, out-of-band DTMF (RFC2833) / SIP Info
Video
- Sensor: 1/3 inch color CMOS
- Pixels: CIF, QCIF, VGA, 4CIF, 960P(HD)
- Video codec: H.264
- Resolution: The main stream 1280*960, 1280*720; Sub-stream 704*576
- Viewing angle: 115°(H), 87°(V)
- Minimum illumination: color 0.01Lux,black and white 0.001Lux
Networking/ Protocols
- Support PoE (802.3af)
- Primary and secondary DNS servers are supported
- Support RTSP
- Support SNTP client
- Support VPN L2TP / openVPN
- Support SRTP
- Support HTTP / HTTPS web pages
- Support Qos: 802.1p / q, DSCP
- Support MD5 authentication
- Support Web Filter
- DHCP / static / PPPoE
- Support STUN
Physical
- 1 DSS button (speed dial button)
- 1 embedded short circuit input interface
- 1 relay: MAX DC30V / 1A, AC125V / 0.5A
- Active switching output: 12V / 650mA DC
- Camera: 130W CMOS /IR-CUT
- Microphone: -38dB
- Speaker: 4Ω / 3W
- WAN port: RJ-45, 10 / 100M adaptive
- Power supply: 12V ± 15% / 1A DC or POE
- PoE: 802.3af (Class 3 - 6.49 to 12.95W)
- Sản xuất tại Trung Quốc.
