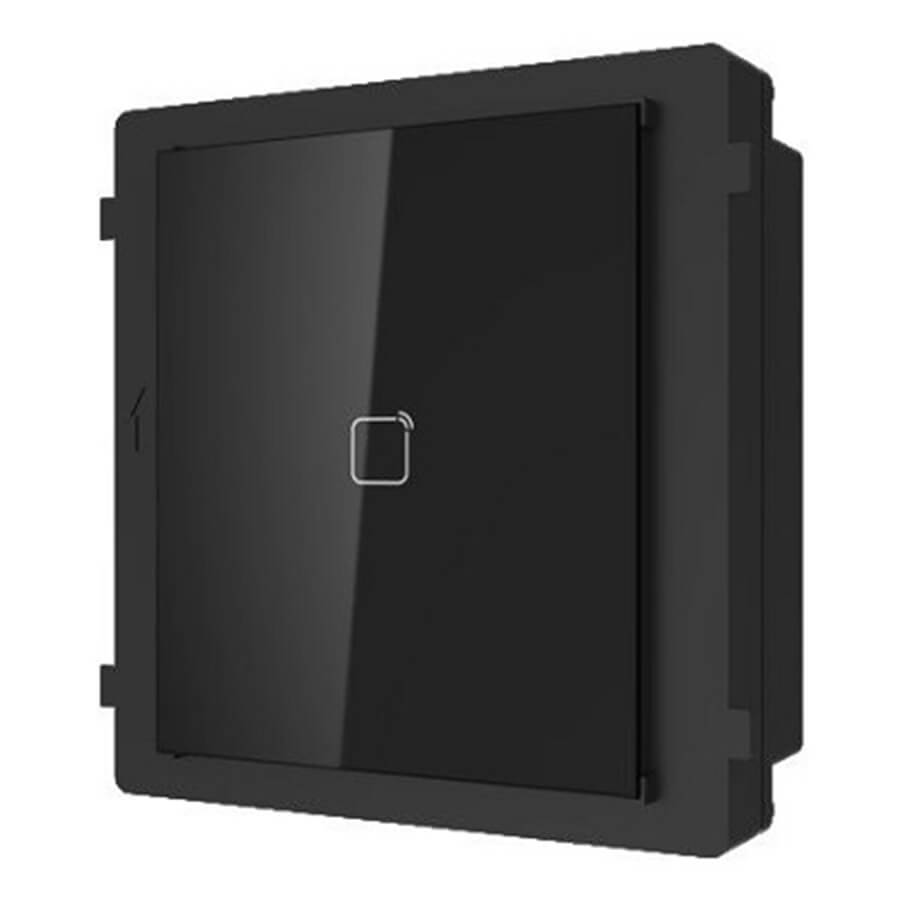

Video Intercom Card Reader Module HIKVISION DS-KD-M
- Supports unlock the door via swiping cards.
- Supports issuing cards with main unit.
- Backlight compensation.
- Easy to and extend.
Đặc tính kỹ thuật
| System parameters | |
| Processor | Embedded MCU Processor |
| Internal card reader | Built-in Card Reader |
| Interfaces | |
| Module connecting | 2 (1 input, 1 output) |
| General | |
| Card type | Mifare card |
| DIP switch | 8 |
| Power input | 12 VDC (powered by the other module) |
| Power output | 12 VDC (powered for the other module) |
| Power consumption | 0.8 W |
| Working temperature | -40° C to +55° C(-40° F to 131° F |
| Working humidity | 10% to 95% |
| IP protection level | IP65 |
| Installation | Flush mounting, surface mounting |
| Dimension | 98.5 mm × 100 mm × 33.7 mm |
| Weight | 421 g (with packaging) 160 g (without packaging) |
- Bảo hành: 24 tháng.
