Trung tâm báo cháy 30 kênh NOHMI FAPN104N-B1-30L

Trang Chủ >> Báo cháy-Báo trộm >> Báo cháy NOHMI >> Trung tâm báo cháy 30 kênh NOHMI FAPN104N-B1-30L
Mã số:13605516

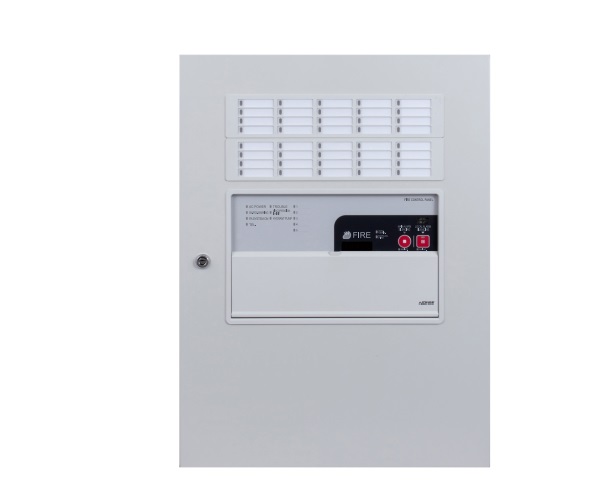

Trung tâm báo cháy 30 kênh NOHMI FAPN104N-B1-30L

Trung tâm báo cháy 30 kênh NOHMI FAPN104N-B1-30L

- The FAPN104N series fire alarm panel was developed to improve panel-front recognize-ability and functional operability from the viewpoint of users.

- Conventional type available for 30 fire zones.

- Alarm verification type (Verification time: 60 seconds).

- Various test functions: fire indication test, alarm verification time test, battery test, automatic after-test resetting.

- Self-diagnosis system.

- Misoperation inhibit function.

- Built-in telephone system.

- Back-up power supply (Ni-Cd battery, 24VDC).

- Large fire alarm symbol for easy visual recognition.

- Fire zone indication by both zone nameplates and a digital display.

- History list for last 10000 events.

- 5 auxiliary LED indicators.

- General fire alarm cut-off switch.

- Functions programmable at site.

- Arrow keys for easy database setting.

- 5 programmable option switches for signal cut-off.

- Built-in surge arrester for power lines.

- 25 programmable dry contacts interlocked by zone alarm signals.

- Serial output unit (PS485) is available as option unit.

Đặc tính kỹ thuật

Model  FAPN104N-B1-30L
Type Conventional type
Power supply 220VAC 50/60Hz
Auxiliary power supply Ni-Cd battery (24VDC, 1.2Ah)
Circuits voltage 5, 24, 48VDC, 24VAC
Alarm verification time Thermal detector: 10sec.; Smoke detector: 60 sec
Power consumption Monitoring: approx. 40VA
Alarm: approx. 100VA
Maximum number of devices supported Spot type smoke detectors: 30/zone (max. no. of zones x 30/panel)
Alarm bells: 45 (24VDC, 10mA/bell)
Location lamps: 14 (30V, 2W/lamp);  56 (24VDC, 15mA/lamp)
Ambient temperature and humidity 0 to 40°C, 20 to 85% (RH)
Alarm input circuit loop resistance Less than 50Ω/Loop
End-of-Line resistor 10kΩ, 1/2W
Materials (enclosure) Steel sheet (t1.2 Front Panel, t1.6 Body)
Color Off-white (Nohmi White): Approximating Munsell N8.7 or equivalent
Weight Approx. 22kg
Dimensions 700mm (H) x 530mm (W) x 125mm (D)

- Bảo hành: 12 tháng.
