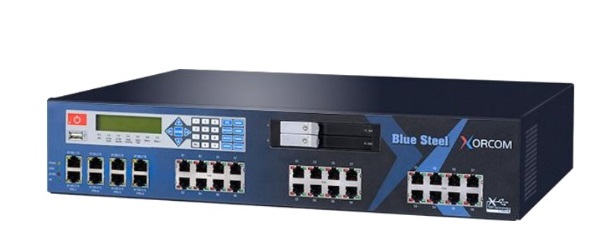

Tổng đài điện thoại IP XORCOM CXT4000 02xE1 (CXT4055)
- Xorcom CXT4055 CompletePBX Appliance with 02xE1, 2U Chassis.
Features
- Unlimited voicemail boxes, hunt groups, call center groups, and auto attendants (IVRs)
- Basic built-in call center with call recording, barge and whisper
- Hot-desking
- Sophisticated Classes of Service for enhanced security
- Emergency notification module
- Endpoint manager
- User-friendly Web interface
- Interface in different languages
- CDR (Call Details Record)
- TDM/SIP/IAX trunks
- Remote extensions
- Voicemail
- Voicemail to email
- Web access to voicemail
- Fax support
- Fax to email
- IVR menu system
- Ring groups
- Call queues
- Conference rooms
- Follow me
- Time-based routing
- Advanced dialing rules
- Music-on-hold
- Paging and intercom
- Admin status screen
- Package manager (for easy updates)
- Network settings tool
Thông số kỹ thuật
| SOFTWARE | |
| Software version | Xorcom CompletedPBX version 5.x |
| Linux version | CentOS 6.6 |
| GUI | Based on Ombutel |
| Security | Instruction protection software, firewall protection |
| Rapid Tunnelling | Utility providing secure remote access for product support purpose |
| Twinstar (optional) | High Availability solution for CompletePBX system (requires two identical base units and an Astribank/SIP Gateway devices). |
| HARDWARE | |
| Processor | Intel Xeon E3-1225V2 8MB cache (3.2GHz) |
| RAM | 8GB (optional upgrade to 16GB) |
| Hard disk | Two hot-swapable 1TB 2.5” |
| RAID1 | Dual hard drive for increased system reliability |
| Fan | 3 redundant fans |
| Echo cancellation module | Voice enhancement & echo cancellation (optional) |
| USB | 4 external USB 2.0 |
| I/O port | Input/Output ports for Asterisk peripheral device support (optional and model- specific) |
| Rapid PA | Public Address capability for FXS port(s) - (optional and model-specific) |
| TELEPHONY | |
| Maximum number of concurrent calls | 880 (SIP only); 750 (PRI + FXS) |
| Maximum number of built in analog ports | 32 (additional ports with external Astribank units) |
| Number of E1 / T1 ports | 2 E1 |
| Max. telephony modules supported internally | 4 (add’l ports are supported by adding Astribanks) |
| Maximum number of telephony ports supported internally | 144 (4xE1 PRI/R2/CAS + 24 analog ports) |
| POWER | |
| Power Supply | Two internal, redundant, hot-swappable units |
| Voltage | Switching, auto adjust 100/240 Volts, 50/60 Hz |
| Power consumption | 230 Watts (maximum) |
| NETWORK | |
| Ethernet port - standard | 10/100/1000 Mb/s (x2) |
| Maximum number of built in analog ports | 32 (additional ports with external Astribank units) |
| ENVIRONMENT | |
| Storage temperature | -20° to 70° Celsius (-4°-158° F) |
| Working temperature | 0° to 40° Celsius (32°-104° F) |
| Humidity | 20%-95%, non-condensing |
| DIMENSION AND WEIGHT | |
| Weight | 8 Kg 18 Lbs (weight may vary and depends on configuration) |
| Size | 19 inch 2U industry standard rack-mountable chassis |
- Bảo hành: 12 tháng.
