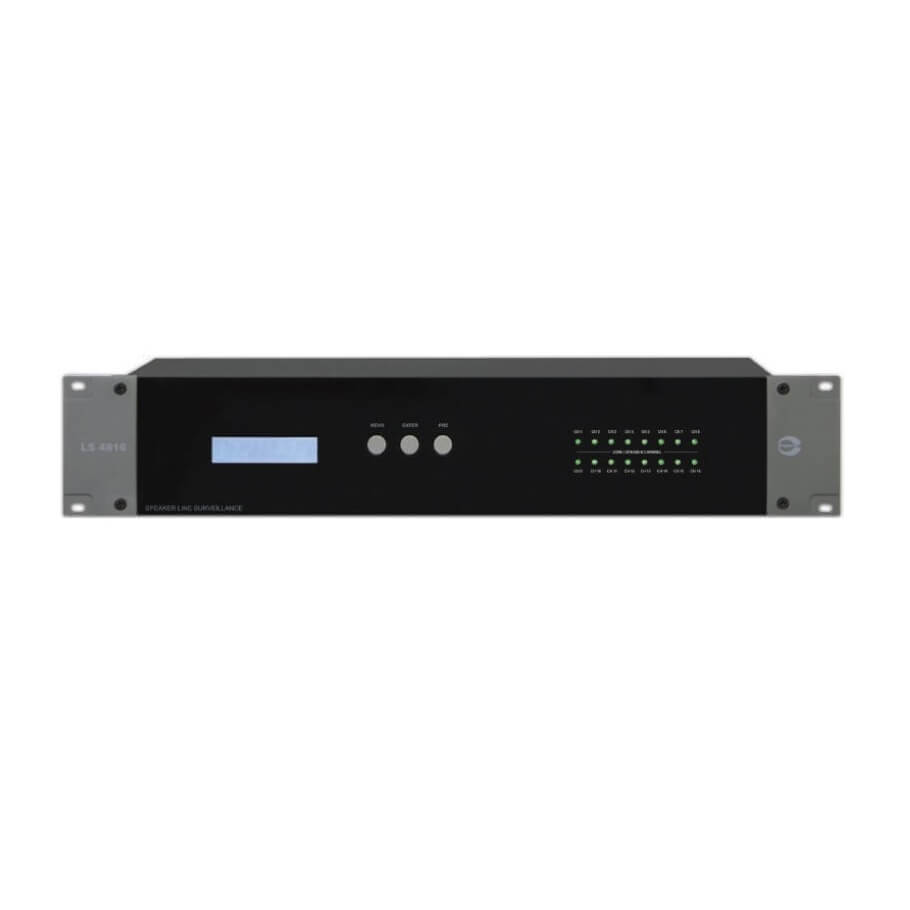

Thiết bị giám sát đường dây Loa 16 kênh AMPERES LS4816
- Phát hiện và cảnh báo lỗi đường dây bằng đèn Led.
- Giám sát 16 vùng loa, có thể mở rộng thêm.
- Phát hiện lỗi cáp và loa trên 1 vùng hoặc riêng biệt.
- Đồng hồ hiển thị báo tổng trở 10 ohm đến 10 K ohm
- Cài được thời gian dò tìm cảnh báo lỗi từ 1 phút đến 48 giờ.
- Màn hình LCD hiển thị thông số cài đặt, đo lường và hiển thị.
Specifications
| Model | LS4816 |
| Operating voltage | 24V DC via PS9400 adaptor |
| Power consumption | 4.9 W |
| Capacity | 16 |
| Processor | STM 32 microprocesser |
| Impedance detection range | 10 to 10 K Ohm |
| Power measurement range | 10 to 1000W 100W 100V line |
| Measurement accuracy | +/- 3% within range |
| Pilot tone injection frequency | 1 KHz |
| Pilot tone signal output level | 5V sine |
| Monitor triggering | Auto / remote trigger |
| Transmittal detection period | 0.5 second per channel (max) |
| Detection interval | User preset from 1 min to 48 hrs |
| Sensitivity setting | User preset at each channel |
| Indicators – LED | Normal, Fault, Buzzer, Auto run |
| Display LCD | 2 x 16 characters w back light |
| Audible output signal | Continuous buzzer with Off option |
| Dry contact setting | 3A |
| DC output in detection mode | 24V DC for individual channel |
| Dimensions (W x H x D) | 482 x 88 x 180 mm |
| Weight | 3.1kg |
- Bảo hành: 12 tháng.
