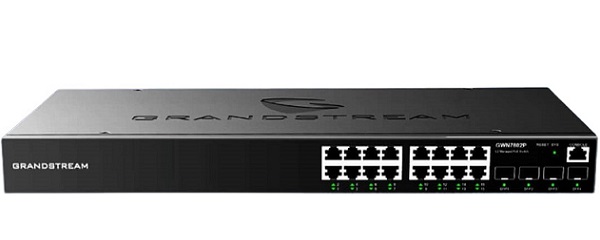

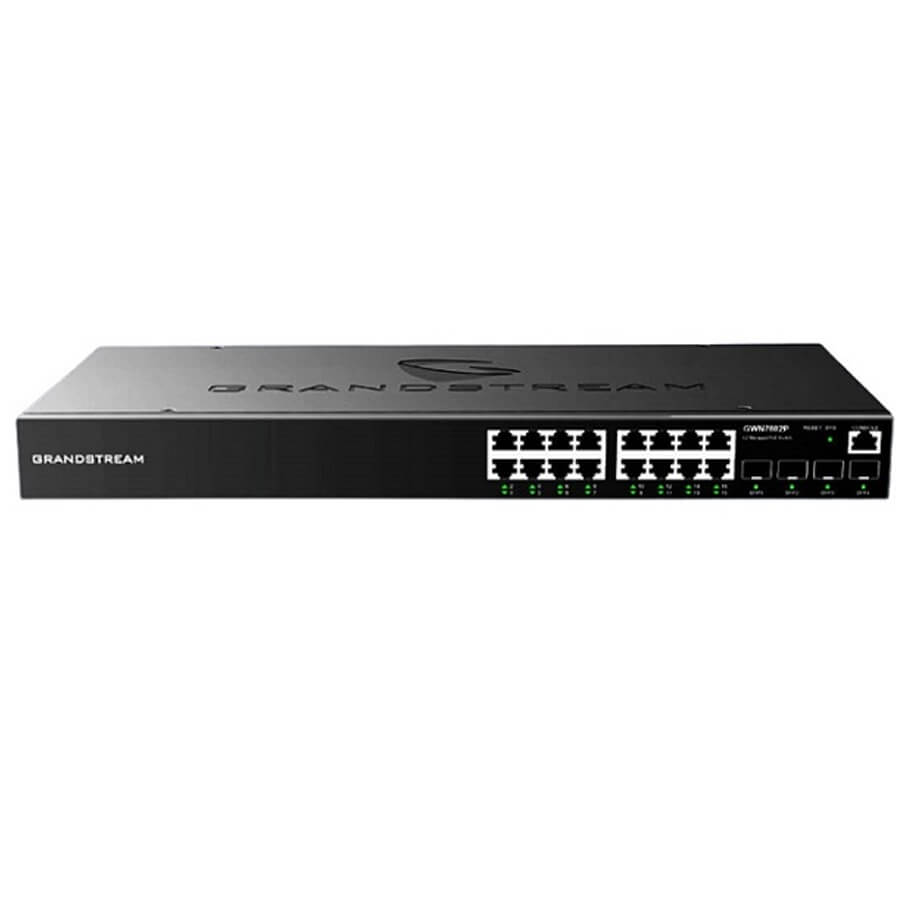

Switch 16 cổng PoE Gigabit L2+ Grandstream GWN7802P
GWN7802P là switch Layer 2+ dành cho doanh nghiệp nhỏ và vừa, trang bị 16 cổng Gigabit PoE/PoE+ và 4 cổng SFP cho khả năng mở rộng linh hoạt. Thiết bị hỗ trợ cấp nguồn thông minh cho camera, Wi-Fi AP, điện thoại IP và các thiết bị PoE khác. GWN7802P tích hợp VLAN, QoS, bảo mật nâng cao và nhiều công cụ quản trị mạnh mẽ. Với hiệu năng cao, độ ổn định tốt và khả năng quản lý từ xa, đây là lựa chọn lý tưởng để triển khai mạng doanh nghiệp chuyên nghiệp.
Tính năng nổi bật
Hiệu năng mạng mạnh mẽ
- 16 cổng Gigabit + 4 cổng SFP cho băng thông cao và khả năng mở rộng linh hoạt.
- Switching capacity 40Gbps, forwarding rate 29.76Mpps, latency <4µs cho truyền dữ liệu mượt mà.
- Hỗ trợ Jumbo Frame 10.240 bytes, tối ưu truyền tải dữ liệu lớn.
Cấp nguồn PoE/PoE+ thông minh
- 16 cổng PoE/PoE+ tuân chuẩn IEEE 802.3af/at.
- Công suất tổng 240W, tối đa 30W mỗi cổng.
- Điều khiển bật/tắt PoE theo lịch, ưu tiên cổng và quản lý điện năng qua LLDP-MED.
- Phù hợp triển khai camera IP, AP Wi-Fi, VoIP và thiết bị IoT.
Bảo mật toàn diện
- ARP Inspection, IP Source Guard, DoS protection, DHCP Snooping nâng cao.
- Hỗ trợ 802.1X, MAC auth, RADIUS và TACACS+.
- Kiểm soát Storm, Port Isolation, Port Security và lọc MAC.
- Ngăn chặn giả mạo IP/MAC/VLAN và các kiểu tấn công LAN phổ biến.
Quản trị dễ dàng, linh hoạt
- Quản lý qua Web GUI, CLI, Telnet, SSH, SNMPv1/v2c/v3.
- Hỗ trợ giám sát bằng RMON, Syslog, Mirroring (SPAN/RSPAN).
- Tương thích GDMS Networking, GWN Manager và GWN Router.
Độ tin cậy cao
- Tích hợp 2 quạt làm mát tự động theo nhiệt độ.
- Chống sét nguồn ±6KV, cổng mạng ±4KV; ESD ±12KV.
- Hỗ trợ STP/RSTP/MSTP, PVST(+)/RPVST(+), ERPS và Link Aggregation.
- Vận hành 0–45°C, thiết kế kim loại chắc chắn, hỗ trợ gắn tủ rack.
Đặc tính kỹ thuật
| Model | GWN7802P |
| Network Protocol | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s |
| Gigabit Ethernet Ports | 16 |
| Gigabit SFP Ports | 4 |
| Console | 1 |
| PoE Ports | 16 |
| Integrated Power Supply | 270W |
| Max Output Power per PoE Port | 30W |
| Max Total PoE Output Power | 240W |
| PoE Standards | IEEE 802.3af/at |
| Surge Protection | ± 6KV CM and DM for power ± 4KV CM and ±2KV DM for network ports |
| Auxiliary Ports | 1x Reset Pinhole |
| Forwarding Mode | Store-and-forward |
| Total non-blocking throughput | 20Gbps |
| Switching Capability | 40Gbps |
| Forwarding Rate | 29.76Mbps |
| Packet Buffer | 4.1MB |
| Switching | 8K static, dynamic and filtering MAC addresses 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN VLAN virtual interface GVRP 8 link aggregation groups Spanning tree, 64 instances for STP/RTSP/MSTP |
| Multicast | IGMP Snooping, MLD Snooping, MVR |
| QoS/ACL | • Auto detection and prioritization of voice/video/RTP/SIP/other latency-sensitive packets • Port priority • Priority mapping • Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ • Traffic shaping • Rate limit • 1.5K ACL for Ethernet, IPv4 and IPv6 |
| DHCP | DHCP server, DHCP relay, Option 82, 60,160 and 43 |
| Maintenance | CPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, alert, diagnostics including Ping, Traceroute, port mirroring, UDLD(TBD) and copper test |
| Security | • User hierarchical management and password protection, HTTPS, SSH, Telnet • 802.1X authentication • AAA authentication including RADIUS, TACACS+ • Storm control • Port isolation, port security, sticky MAC • Filtering MAC address • IP source guard, DoS attack prevention, ARP inspection • DHCP Snooping • Loop protection including BPDU protection, root protection and loopback protection • Kensington Security Slot (Kensington Lock) support |
| Mounting | Desktop, wall-mount, or rack-mount (rack-mount brackets included) |
| LEDs | 1x tri-color LED for device tracking and status indication, 20x green-color LEDs for data ports, 16x yellow-color LEDs for PoE ports |
| Environmental | Operation: 0°Cto 45°C, humidity 10-90% RH (Non-condensing) Storage: -10°C to 60°C, humidity: 5% to 95% (Non-condensing) |
| Dimensions | 440(L)*200(W)*44(H) mm |
| Unit Weight (TBD) | 3Kg |
- Made in: China/ Philippines.
