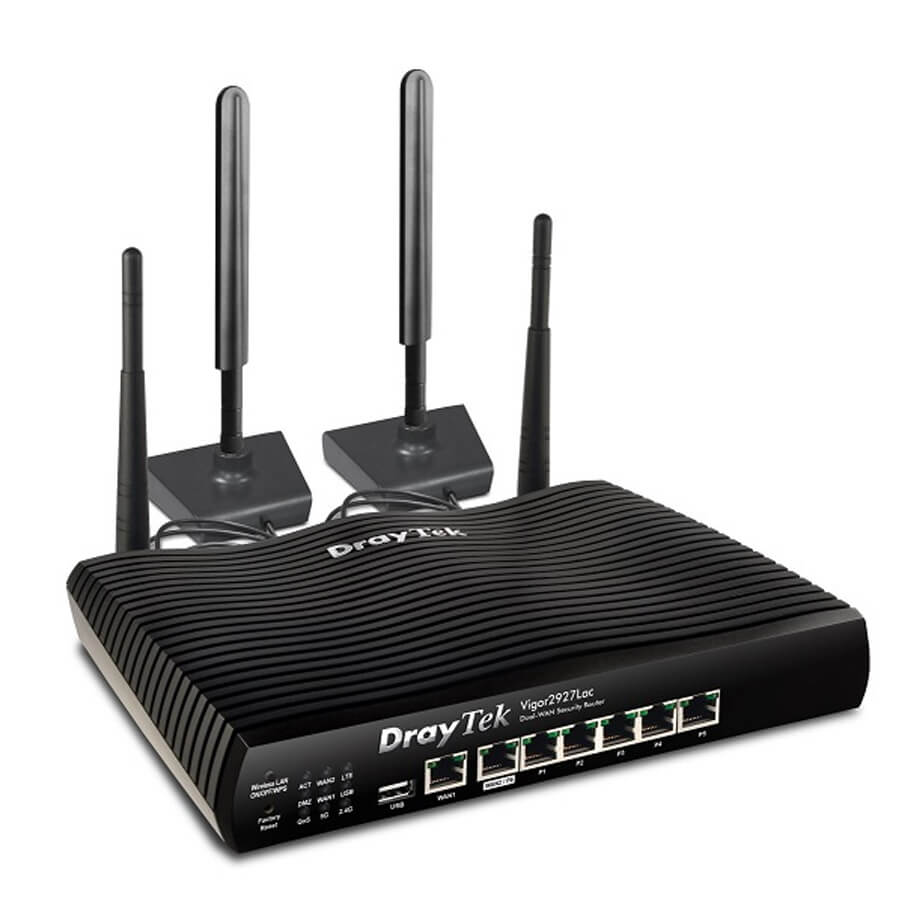

Router Wifi 4G LTE cân bằng tải DrayTek Vigor 2927Lac
- 1 x cổng WAN cố định 10/100/1000Mbps Ethernet, RJ45.
- 1 x cổng có thể chuyển đổi WAN/LAN 10/100/1000Mbps Ethernet, RJ45.
- 5 x cổng LAN cố định 10/100/1000Mbps Ethernet, RJ45.
- 3G/4G/LTE CAT.6 tốc độ cao (Download 300Mbps, Upload 50Mbps).
- Hỗ trợ Wi-Fi chuẩn AC1300-Dual Band, 802.11b/g/n 2.4GHz, 802.11a/n/ ac 5GHz.
- Hỗ trợ cổng mở rộng cho modem USB 3G/4G/LTE.
- NAT Throughput lên đến 940Mbps (chạy 1 WAN) và 1.8Gbps (chạy 2 WAN), NAT sessions: 60.000, ...
- Hỗ trợ lên đến 50 kênh VPN với 25 kênh VPN-SSL Tunnel.
- Cân bằng tải trên nhiều đường truyền đồng thời, kiểm soát và quản lý băng thông giúp tối ưu hóa đường truyền internet.
- Hỗ trợ IPv4 và IPv6.
- Quản lý tập trung các VigorAP và các VigorSwitch.
- Cho phép quản lý từ xa qua Cloud VigorACS2.
Đặc tính kỹ thuật
| Physical Interfaces | - WAN Ports: 1x Gigabit Ethernet (1G/100M/10M), RJ-45 - WAN/LAN Switchable Ports: 1x Gigabit Ethernet (1G/100M/10M), RJ-45 - LAN Ports: 5x Gigabit Ethernet (1G/100M/10M), RJ-45 - 2x Removable Wireless antennas - 2x Removable 4G/LTE Wireless antennas - USB 2.0 Port for 3G/4G Modem, thermometer or Printer - Wireless On/Off/WPS button - Recessed Factory Reset button |
| Antenna Specifications | - Wireless Antennas: + 2 x External Dipole + 5GHz Gain: 4 dBi + 2.4GHz Gain: 2 dBi - LTE Antennas: + 2x External Dipole + 2x 1m extension base included + Gain: 3 dBi |
| Performance | - NAT Performance: + 950 Mb/s NAT Throughput for Single WAN with Hardware Acceleration + 1.8Gb/s Total NAT Throughput for Dual WAN with Hardware Acceleration + 800 Mb/s NAT Throughput per WAN + 60,000 NAT Sessions + 8000 Hardware Accelerated NAT Sessions - VPN Performance: + 300 Mb/s IPsec (AES256) VPN Performance + 800 Mb/s Hardware Accelerated IPsec VPN Performance - New! (requires f/w 4.2.1) + 120 Mb/s SSL VPN Performance + Max. 50 Concurrent VPN Tunnels + Max. 25 Concurrent SSL VPN / OpenVPN Tunnels |
| WAN Interfaces | - WAN1: Gigabit Ethernet - WAN2: Gigabit Ethernet - WAN3: 2.4GHz Wireless WAN - WAN4: 5GHz Wireless WAN - WAN5: Integrated 4G/LTE Category 6 Modem - WAN6: 4G/LTE USB Modem (not included, see supported 4G/LTE modem list) |
| Internet Connection | - Load Balancing: IP-based, Session-based - Hardware Acceleration - 802.1p/q Multi-VLAN Tagging - Multi-VLAN/PVC - 2.4GHz & 5GHz Simultaneous Wireless WAN - WAN Active on Demand: Link Failure, Traffic Threshold - Connection Detection: PPP, ARP Detect, Ping Detect - WAN Data Budget - Dynamic DNS - DrayDDNS – with automated LetsEncrypt Certificates - Full Feature-set Hardware Acceleration (requires f/w 4.2.1): + Hardware Accelerated Quality of Service + Multi-WAN Data Budget + Traffic Graph & Data Flow Monitor + Bandwidth Limit - IPv4 Connection Types: PPPoE, DHCP, Static IP, PPTP/L2TP - IPv6 Connection Types: + Ethernet: PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel + 4G/LTE Modem & USB 4G/LTE Modem: TSPC, AICCU |
| Integrated 4G LTE Modem Features | - Dual-SIM Failover (1 SIM online at a time) - 4G LTE Category 6 Modem with fallback to 3G - Unlocked to any network (BT, EE, 3, O2, Vodafone, Eircom) - 4G LTE Max Data Rates: + 300Mbps Downlink (Category 6) + 50Mbps Uplink (Category 6) - 4G LTE (FDD) Bands: 1, 3, 5, 7, 8, 20, 28, 32 - 4G LTE (TDD) Bands: 38, 40, 41 - 3G (WCDMA/HSPA+/UMTS) Bands: 1, 3, 5, 8 - 2x LTE Antennas included with 1m extension cables - Per-SIM-Card WAN Data Budget - 2x Standard-Size SIM-Card Slots - Removable SIM slot cover - SMS Inbox - Send & Receive SMS text messages - SMS Router Commands - Status Report, Reboot via text message |
| Wireless Features | - AC1300 - 11ac ‘Wave 2’ Dual Band Wireless: + Compatible with 802.11a/b/g/n wireless + Dual-band (2.4/5Ghz) simultaneous wireless + Up to 866Mbps PHY rate at 80MHz with 5GHz + Up to 400Mbps PHY rate at 40MHz with 2.4GHz + Channel Bandwidth: 20/40MHz for 2.4GHz, 20/40/80MHz for 5GHz + MU-MIMO + Tx Beamforming - Mesh Root support with DrayTek VigorAP Mesh Nodes (requires f/w 4.2.2) - Up to 4 SSIDs per radio band - Extended 5Ghz Band - Channels 36-48, 52-64, 100-140 - Wireless Optimisation: Airtime Fairness, AP-Assisted Mobility, Band Steering - Bandwidth Management (Per Station / Per SSID) - WMM (Wireless MultiMedia) - WPS - WiFi Protected Setup - Station Control - Time limited wireless connectivity per Station (e.g. 1 hour) - EAPOL Key Retry - Disable EAPOL Key Retry to protect unpatched WLAN clients from KRACK - Wireless Security: + WPA2 + WPA3 (requires f/w 4.2.2) + Pre-Shared Key authentication + Enterprise 802.1x authentication + WEP/WPA for Legacy Clients + Access Control – Blacklist/ Whitelist client MAC addresses per SSID |
| Firewall & Content Filtering | - IP-based or User-based Firewall Policy - User-based Time Quota - DoS Attack Defence - Spoofing Defence - Content Filtering: + Application Content Filter + URL Content Filter + DNS Keyword Filter + Web Features + Web Category Filter (requires GlobalView subscription) |
| NAT Features | - NAT Port Redirection - Open Ports - Port Triggering - DMZ Host - UPnP - ALG (Application Layer Gateway): SIP, RTSP, FTP, H.323 - VPN Pass-Through: PPTP, L2TP, IPsec |
| NAT Features | - Auto Configuration - NAT Port Redirection - Open Ports - Port Triggering - DMZ Host - UPnP - ALG (Application Layer Gateway): SIP, RTSP, FTP, H.323 - VPN Pass-Through: PPTP, L2TP, IPsec |
| LAN Management | - 802.1q Tag-based, Port-based VLAN - Up to 8 LAN Subnets (NAT or Routing mode selectable per LAN interface) - Up to 16 VLANs - DMZ Port - DHCP Server - Multiple IP Subnet + Custom DHCP Options + Bind-IP-to-MAC + DHCP Pool Count up to 1022 addresses for LANs 1-3 + DHCP Pool Count up to 253 addresses for LANs 4-8 - LAN IP Alias - Wired 802.1x Port Authentication - Port Mirroring • Local DNS Server - Conditional DNS Forwarding - Hotspot Web Portal - Hotspot Authentication: Click-Through, Social Login, SMS PIN, Voucher |
| Networking Features | - Policy-based Routing: Protocol, IP Address, Port, Domain/ - Hostname, Country - High Availability: Active-Standby, Hot-Standby - DNS Security (DNSSEC) - Local RADIUS server - SMB File Sharing (Requires external storage) - Multicast: IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour - Routing Features: IPv4 & IPv6 Static Routing, Inter-VLAN Routing, |
| VPN | - Up to 50 active VPN tunnels - including up to 25 SSL VPN or OpenVPN Tunnels - Up to 16 Hardware Accelerated 800Mb/s IPsec tunnels (requires f/w 4.2.1) - LAN-to-LAN - Dial-In VPN Server & Dial-Out VPN Client - Teleworker-to-LAN – Dial-In VPN Server - User Authentication: Local, RADIUS, LDAP, TACACS+, mOTP - IKE Authentication: Pre-Shared Key and Digital Signature (X.509) - Encryption: MPPE, DES, 3DES, AES (128/192/256) -Authentication: SHA-256, SHA-1 - VPN Trunk (Redundancy): Load Balancing, Failover - Dead Peer Detection (DPD) - IPsec NAT-Traversal (NAT-T) - Virtual IP Mapping – Resolve VPN IP subnet/range conflicts - DHCP over IPsec - DrayTek VPN Matcher – Connect to a VPN router that’s behind NAT/CG-NAT - VPN Protocols: + IPsec IKEv1, IKEv2, IKEv2 EAP + IPsec-XAuth + DrayTek SSL VPN + OpenVPN + GRE over IPsec + PPTP + L2TP, L2TP over IPsec |
| Bandwidth Management | - IP-based Bandwidth Limit - IP-based Session Limit - User-based Data Quota - QoS (Quality of Service): + Classify via TOS, DSCP, 802.1p, IP Address, Service Type + 4 Priority Queues + App QoS + VoIP Prioritization |
| Operating Requirements | - Rack Mountable (Optional Vigor RM1 mounting bracket required) - Wall Mountable - Temperature Operating: 0 °C ~ 45 °C - Storage: -25 °C ~ 70 °C - Humidity 10% ~ 90% (non-condensing) - Power Consumption: - 24 watts - Operating Power: DC 12V (via external PSU, supplied) - Dimensions (W x D x H): 241 x 165 x 44 mm - Weight: 630g - Power Requirements: 220-240VAC |
- Bảo hành: 24 tháng.
