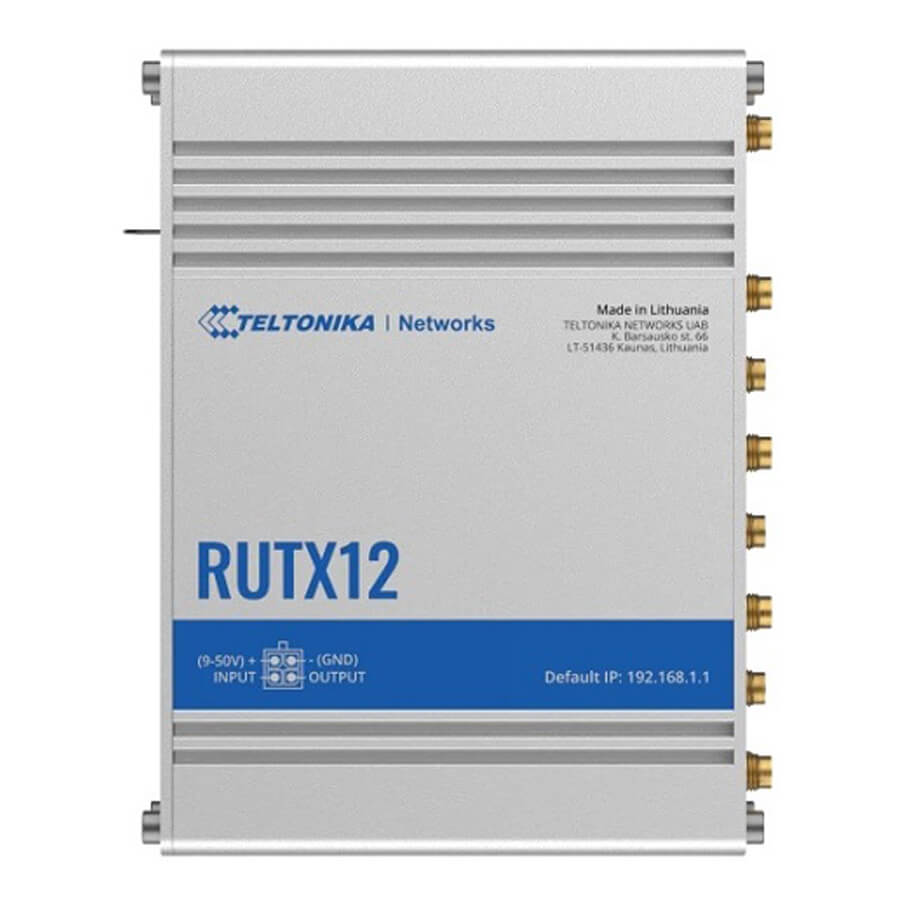

Router 3G/4G công nghiệp Teltonika RUTX12
- Thiết bị định tuyến có thu phát vô tuyến kèm phụ kiện Teltonika RUTX12.
- 2 SIM 4G LTE CAT6 active đồng thời, tốc độ lên đến 600Mbps.
- Wifi băng tần kép chuẩn Wave 2 802.11ac với tốc độ lên đến 867Mbps.
- 150 user kết nối đồng thời.
- 2 Slot SIM Card (chạy song song).
- 1 port WAN (10/100/1000 Mbps) Ethernet.
- 4 port LAN (10/100/1000 Mbps) Ethernet.
- Hỗ trợ cân bằng tải.
- Nhiệt độ hoạt động: -40°C ~ 75°C.
Đặc tính kỹ thuật
| Model | RUTX12 |
| Mobile | |
| Mobile module | 2 x 4G (LTE) – Cat 6 up to 300 Mbps 3G – up to 42 Mbps |
| Status | Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID, Carrier aggregation |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| Black/White list | Operator black/white list |
| Band management | Band lock, Used band status display |
| Wireless | |
| Wireless mode | 802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA) |
| WiFi security | WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation |
| SSID | ESSID stealth mode |
| WiFi users | up to 150 simultaneous connections |
| Wireless Hotspot | Captive portal (Hotspot), internal/external Radius server, built in customizable landing page |
| Bluetooth | |
| Bluetooth 4.0 | Bluetooth low energy (LE) for short range communication |
| Ethernet | |
| WAN | 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
| LAN | 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
| Network | |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, NHRP) |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL) |
| VoIP passthrough support | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Firewall | Port forward, traffic rules, custom rules |
| DHCP | Static and dynamic IP allocation, DHCP Relay, Relayd |
| QoS / Smart Queue Management (SQM) |
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
| DDNS | Supported >25 service providers, others can be configured manually |
| Security | |
| Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block |
| Firewall | Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
| VLAN | Port and tag based VLAN separation |
| WEB filter | Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only |
| Access control | Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
| VPN | |
| OpenVPN | Multiple clients and a server can run simultaneously, 27 encryption methods |
| PPTP, L2TP | Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support |
| SSTP | SSTP client instance support |
| Stunnel | Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code |
| General | |
| Power Connector | 4 pin industrial DC power socket |
| Input voltage range | 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection |
| PoE (passive) | Passive PoE over spare pairs |
| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| SIM | 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders |
| Antennas | 4 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNNS |
| USB | 1 x USB A port for external devices |
| Casing material | Full aluminium housing |
| Dimensions (W x H x D) | 132 x 44.2 x 95.1 mm |
| Weight | 540g |
| Operating temperature | -40°C ~ 75°C (10 % to 90 % non-condensing) |
| Ingress Protection Rating | IP30 |
- Bảo hành: 12 tháng.
