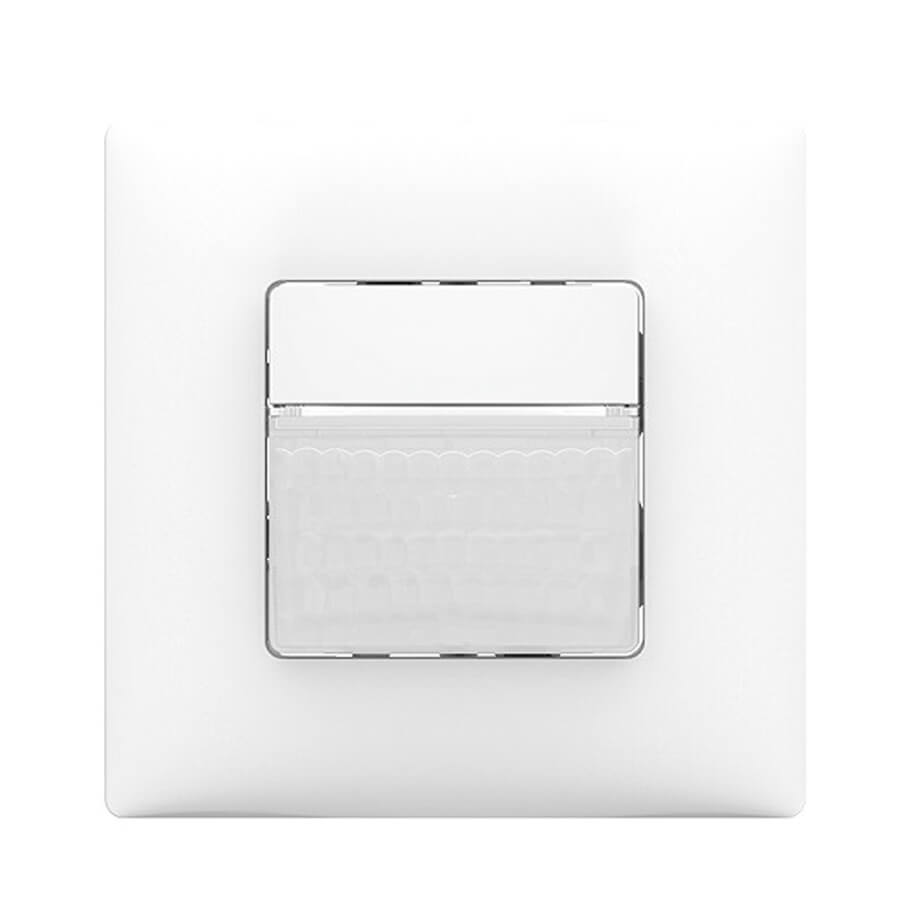

Presence Detector THEBEN theMura B180-100 2W UP
- Part Number: 2060770.
- Passive infrared motion detector for flush-mounted wall mounting.
- Detection area 170°, up to 14x17 m.
- Without frame, adapter frames for common switch ranges available as accessory.
- 1 channel light.
- 2-wire version in combination with an ELPA staircase time switch for switching the lamp loads.
- Adjustable brightness switching value, teach-in function.
- Ideal for replacing existing buttons.
- Switch-on delay configurable on the staircase time switch.
- Parallel connection possible (up to 12 detectors towards an ELPA).
- Restriction of detection area possible.
- Mixed light measurement suitable for the control of fluorescent, incandescent, halogen lamps and LEDs.
- Integrated button (can be blocked).
Đặc tính kỹ thuật
| Model | theMura B180-100 2W UP |
| Operating voltage | 230 VAC |
| Frequency | 50 – 60 Hz |
| Installation height | 0.8 – 1.2 m |
| Installation type | Flush-mounted wall installation |
| Colour | White |
| Switching output | Light |
| Stand-by consumption | ~0.4 W |
| Light measurement | Mixed light measurement |
| Setting range brightness | 5 – 1000 lx |
| Lamps | Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs |
| Type of connection | Spring terminals |
| Size of concealed housing | Ø 55 mm (NIS, PMI) |
| Detection range | 238 m² (14 x 17 m) |
| Ambient temperature | -15°C-45°C |
| Type of protection | IP 20 |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
