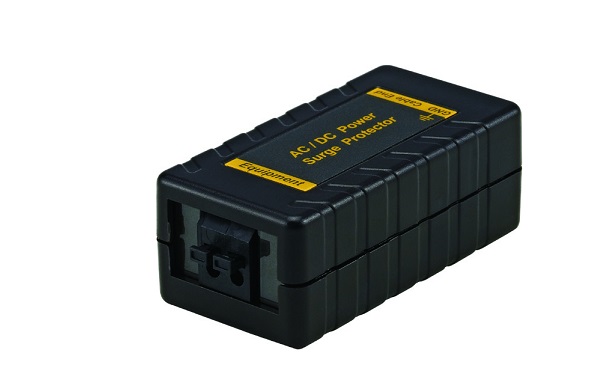

Power Surge Protector COP 15-SP04P
- Terminal connector to Terminal connector.
- Perfect for Power Line protection, 40Vac(max)/ 56Vdc(max).
- 3 stages protection (Low voltage, high voltage, over current).
- Built in 6KV surge protection.
- Built in 15KV Electrostatic Discharge.
- Dimension (WxHxD): 61 x 31 x 23 mm.
- Weight: 32g.
Specification
| Model | 15-SP04P |
| Surge Protection Attack Time | 100 ns |
| Maximum Surge Current | 5000A |
| Surge Lifetime | 300 surges of 100Amps |
| Normal Resistance Across Coaxial | 10,000 MΩ |
| Surge Resistance | Approx. 0Ω |
| Power Passing Capability | AC12 - 40V / DC12 - 56V |
| Connectors | Terminal Block |
| Over Current Protection | 3.0A (MAX) |
| Dimensions (W × L × H) | 61 x 31 x 23 mm |
| Weight | 35g |
