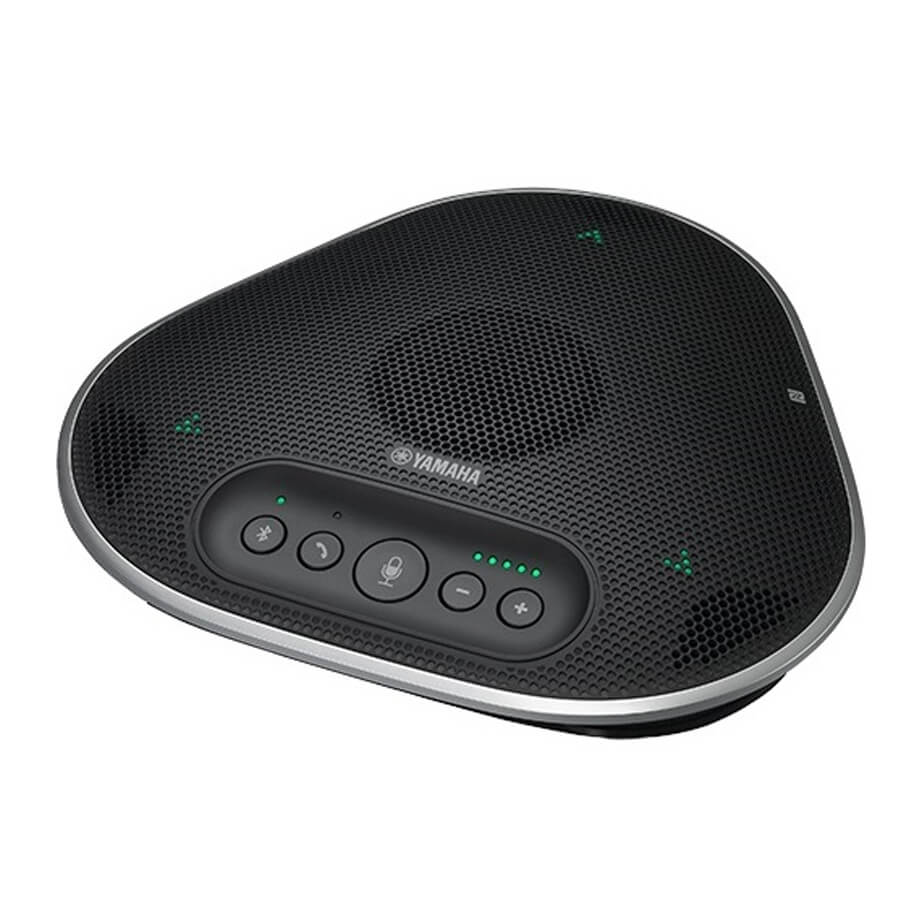

Portable USB and Bluetooth Conference Phone YAMAHA YVC-330
- 3 mic đa hướng.
- 1 loa, công suất 91dB.
- Cable 3m.
- Kết nối cổng USB 2.0, Bluetooth, NFC (Near Field Communication), EXT IN/OUT (stereo mini jack).
- Phù hợp cho phòng họp trên 10 người,
- Mở rộng, ghép nối 2 thiết bị YVC-330.
Thông số kỹ thuật
| Model | YVC-330 |
| General | |
| Interfaces | USB 2.0 Full Speed (Mini-B), Bluetooth, NFC (Near Field Communication), EXT IN/OUT (stereo mini plug) |
| Connectable Devices | USB: Computer running Windows or macOS Bluetooth: Smartphone running Android or iOS |
| Power Sources | USB bus power |
| Maximum Power Consumption | 2.5W |
| Dimensions (W x H x D) | 235 x 46 x 226 mm |
| Weight | 0.8 kg |
| Color | Black |
| Supported OS | Windows 10 (32bit/64bit), Windows 8.1 (32bit/64bit), Windows 7 (32bit/64bit), macOS 10.14, macOS 10.13, macOS 10.12 |
| Bluetooth | Version: 2.1+ EDR Supported profiles: HFP (1.6), A2DP Supported codec: CVSD, SBC, mSBC Wireless output: Class2 Maximum communication distance: 10 m (32.8 ft) (no obstacles) Radio frequency (operational frequency): 2.402 to 2.480 MhZ Maximum out power (EIRP): 4.0dBm (2.5mW) |
| NFC | Compatible devices: NFC-compatible Android devices, versions 5.0, 4.4, 4.3, 4.2, and 4.1 |
| Accessories | USB cable 3m (9.8 ft), User's Manual |
| Operating Environment | Temperature: 0 to 40°C (32 to 104°F) Humidity: 20 to 85% (no condensation) |
| Storage Environment | Temperature: -20 to 50°C (-4 to 104°F) Humidity: 10 to 95% (no condensation) |
| Others | Firmware update (transferred from a PC through USB) |
| Audio | |
| Microphone | Unidirectional microphones x 3, 360° coverage |
| Speaker | Full-range speaker x 1 |
| Volume | Momentary maximum: 91dB (0.5m) |
| Frequency Bandwidth | For sound pickup: 100 Hz to 20000 Hz For playback: 190 Hz to 20000 Hz |
| Signal Processing | Adaptive echo canceller, Noise reduction, Automatic tracking, Automatic gain control, Derever beration, SoundCap |
| Mode | Standard Mode: Pick-up the sound in Small-Medium conference rooms SoundCap Mode: Automatically mute distracting noise in open workspace and deliver only the sound from the pick-up range (radius of 1m) |
| Compliance | |
| Safety | CB/G (IE60065, IEC62368) CE (EN62368, EN62479, EN62311) CCC (GB8898) |
| EMC | FCC (Part15B ICES-003) CE (EN66032, EN55035, EN55020, EN61000, EN301489) AS/NZS (AS/NZS CISPR32, AS/NZS 4268) KC(KN301489, KN32, KN35) CCC(GB/T 13837, GB17625) VCCI (VCCI 31-1) EAC |
| Radio | FCC (Part15B) Class A, ICES-003 CE (EN300328, EN300330) SRRC KC (KN301489) |
| RoHS | CE (EN50581) |
- Bảo hành: 12 tháng.
