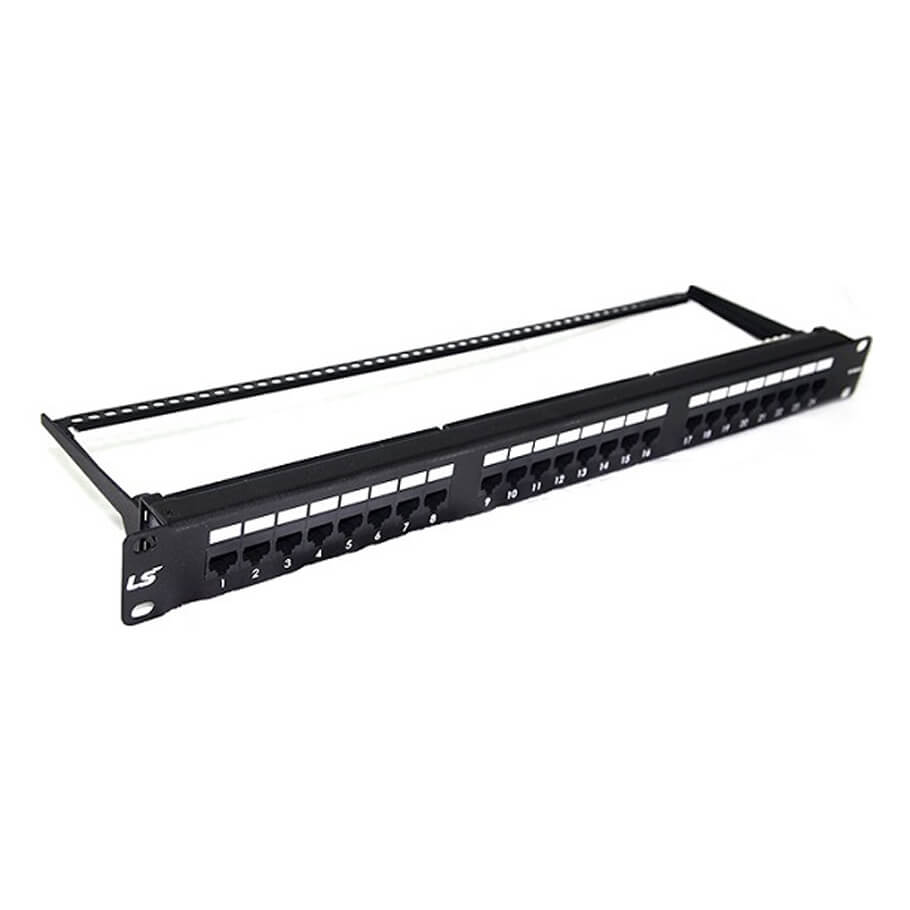

Patch Panel 24-Port Unshielded LS CAT5e (LS-PP-UC5E-24P-WM-EC)
- Part Number: LS-PP-UC5E-24P-WM-EC.
- 24-Port Unshielded CAT5e Patch Panel.
- Sử dụng trong đường kết nối cáp trục chính (Backbone Cabling), hệ thống dữ liệu hàng ngang (Horizontal Distribution).
- Sử dụng cho 4/16 Mbps Token Ring (IEEE 802.5), 10/100/1000 BASE-T (IEEE 802.3), 155Mbps ATM, 100Mbps TP-PMD, ISDN, ADSL, ATM LAN 1.2G.
Đặc tính kỹ thuật
| FEATURE | |
| Approvals | UL, KC |
| Category | ANSI/TIA-568.D-2 (Category 5e) |
| Meet | CFR 47 Parts 68 |
| Wiring scheme | T568A/T568B |
| ELECTRICAL | |
| Current Rating | 1.5 Amps |
| Insulation Resistance | > 500 Mega‐ohm |
| Contact Resistance | < 20 milli‐ohm |
| DC Resistance | < 200 milli‐ohm |
| Voltage proof | < 1000 VDC |
| MECHANICAL | |
| Insertion Life | 750 mating cycles |
| Pull Force | 20lbs (89N) |
| Temperature | ‐10℃ ~ 60℃ |
| Humidity | 10% ~ 90% RH |
| IDC accept | 22~24 (Solid wire), 200 termination cycles |
| PHYSICAL | |
| Panel | SPCC |
| Plastic frame | ABS, UL94V-0 |
| Jack contacts | Phosphor bronze, 50μ-inch gold coating |
| IDC Plastic | PC, UL94V-0 |
| IDC Terminals | Phosphor bronze, tin over nickel undercoat |
